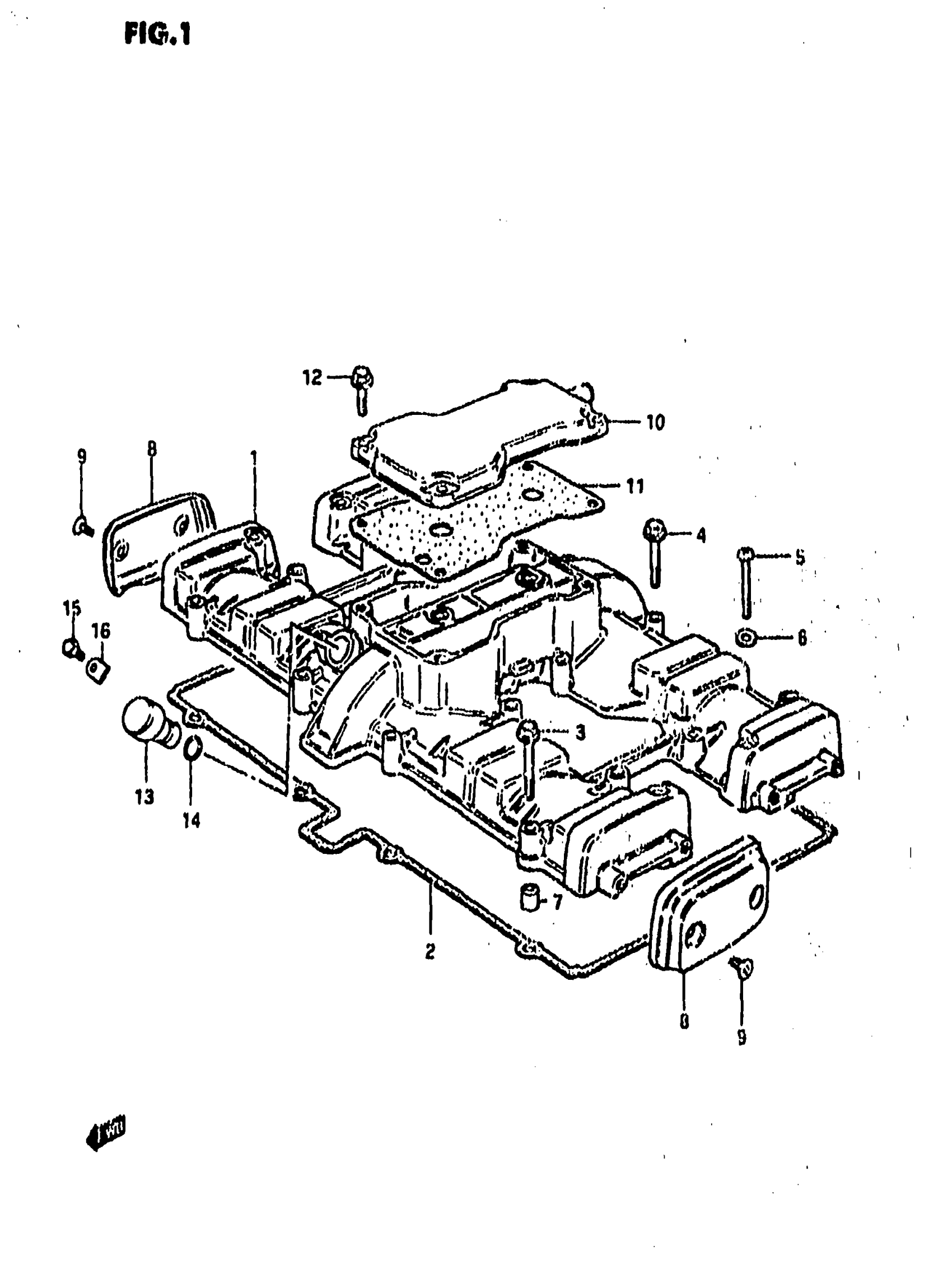

Suzuki GS1000S (1982) CYLINDER HEAD COVER (-E.NO.101416) Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-49203

Unavailable

2

GASKET,CYL HD C This part replaces 11173-49206.

11173-49207-H17

Unavailable

3

BOLT This part replaces 01517-06408.

01550-06407

$2.73

4

BOLT This part replaces 01517-06358.

01550-06357

$2.80

5

SCREW This part replaces 02152-06408.

02112-16407

$3.30

6

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.01

7

PIN

09206-08001

$1.77

8

CAP, CYLINDER HEAD COVER

11174-49210

Unavailable

9

SCREW

09127-05013

$1.38

10

NO DESCRIPTION AVAILABLE This part replaces 11176-49200.

11176-49201

Unavailable

11

GASKET,BRTHR CV This part replaces 11177-49200.

11177-49200-H17

Unavailable

12

BOLT This part replaces 01517-06208.

01550-06207

$2.31

13

PLUG, TACHO HOUL

26442-45000

$22.25

14

SEAL BAND

26451-45000

$4.63

15

SCREW

09128-05101

$1.41

16

PLATE

26449-33000

$4.92
