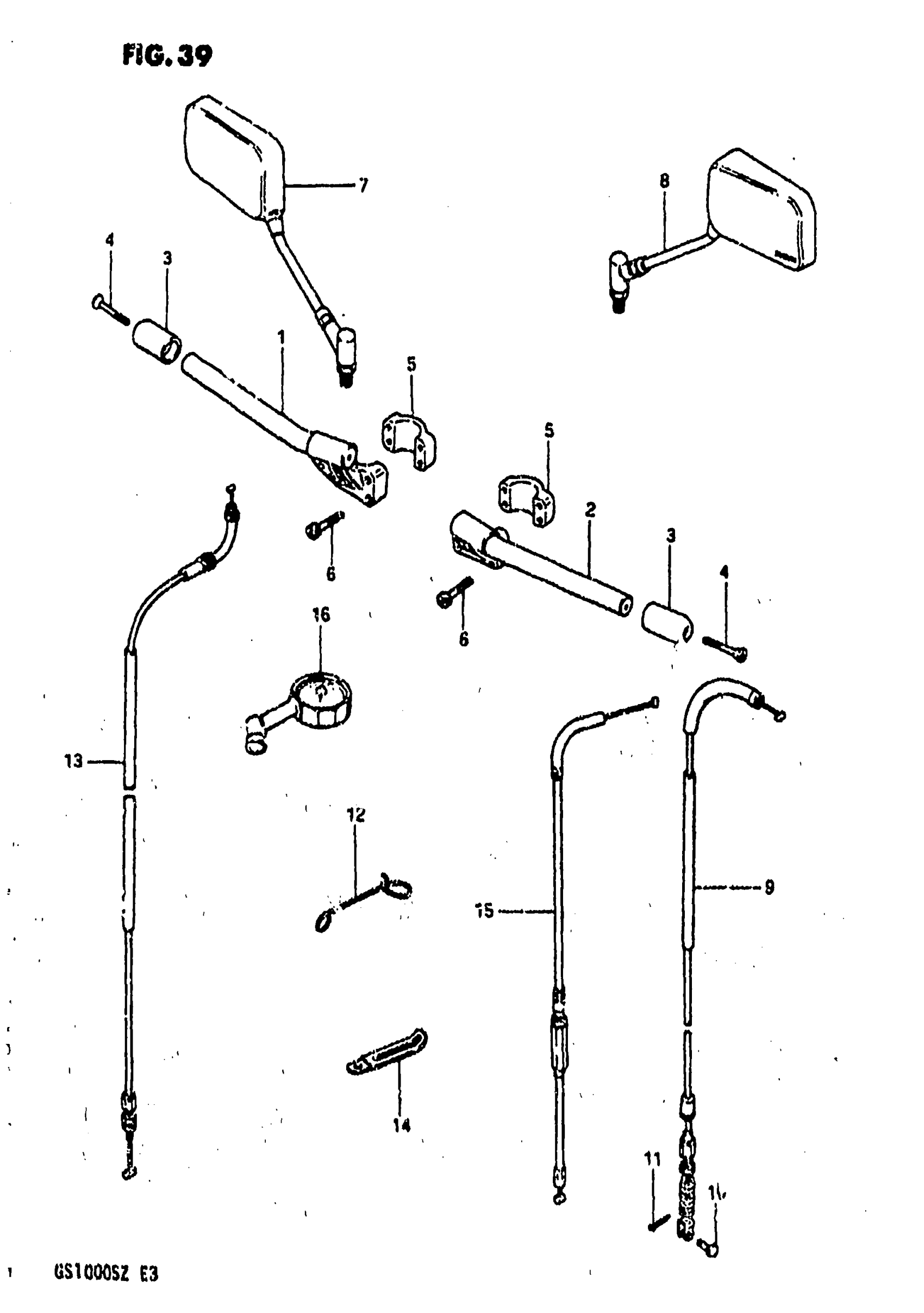

Suzuki GS1000S (1982) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-49310

Unavailable

2

HANDLEBAR, LH

56151-49310

Unavailable

3

BALANCER

56113-49301

Unavailable

4

SCREW, LOWER This part replaces 02132-06508.

02122-0650B

$2.75

5

HOLDER, HANDLEBAR

56211-49300

Unavailable

6

BOLT This part replaces 09106-06005.

07130-06307

$4.32

7

MIRROR ASSY,REA This part replaces 56500-49300.

56500-49372

$267.27

8

MIRROR ASSY,REA This part replaces 56600-49300.

56600-49372

$267.27

9

CABLE,CLUTCH This part replaces 58200-49300.

58200-49301

$34.53

10

PIN

09200-06011

Unavailable

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

CLAMP

58626-45101

Unavailable

13

CABLE,THROTTLE This part replaces 58300-45500.

58300-45501

Unavailable

14

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

15

CABLE, STARTER

58410-49300

Unavailable

16

GAUGE, FRONT FARK AIR

96200-41330

Unavailable
