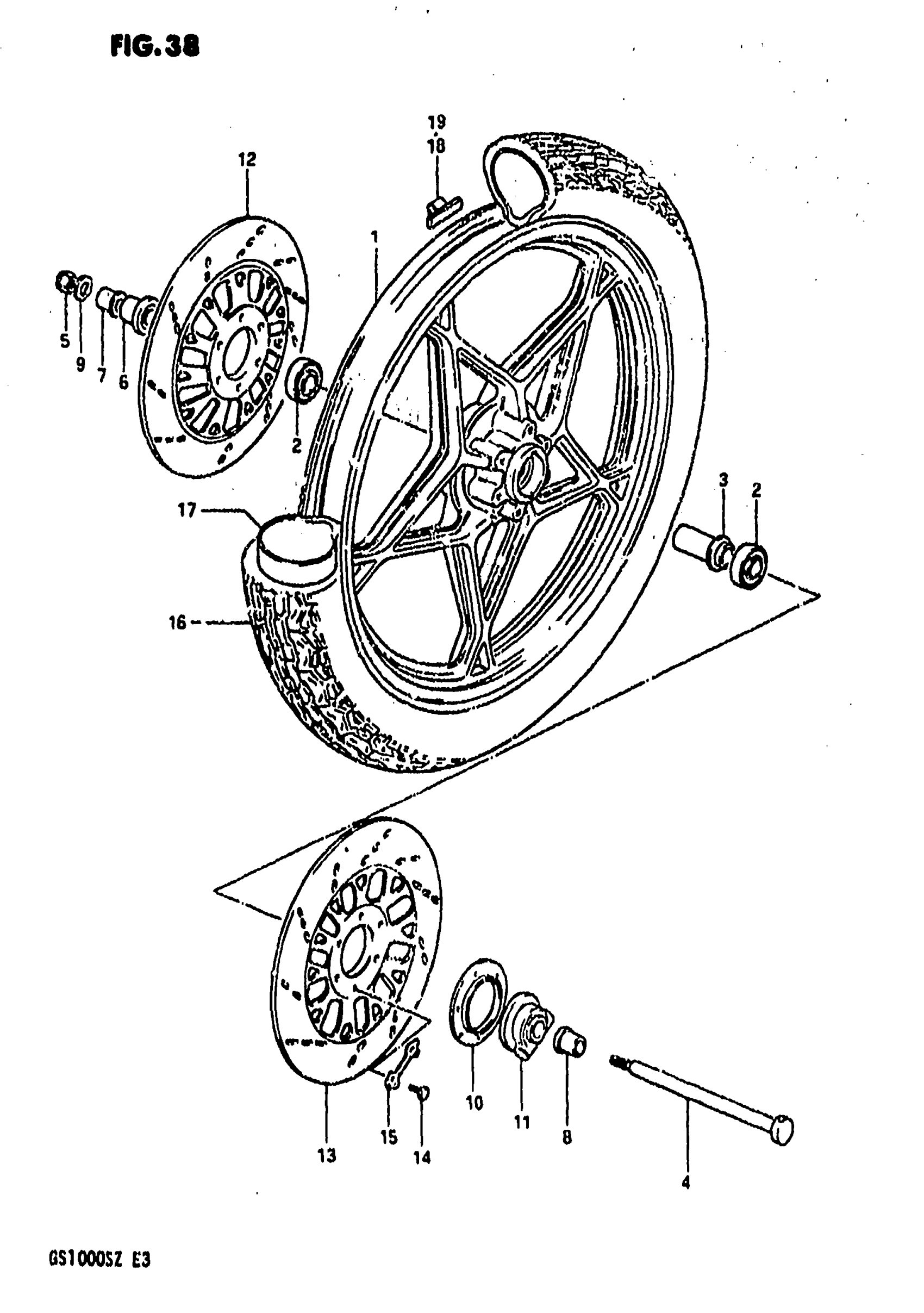

Suzuki GS1000S (1982) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | (SILVER) This part replaces 54111-49300-12Z.

54111-49350-291

Unavailable

2

BEARING | (SLIVER) This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE, FRONT

54711-49000

Unavailable

5

NUT This part replaces 09159-12004.

09159-12011

Unavailable

6

SPACER, BEARING RH

54740-18402

Unavailable

7

SPACER, AXLE RH

54741-49300

Unavailable

8

SPACER, AXLE LH

54741-49000

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

DUST SEAL

54871-45010

Unavailable

11

BOX ASSY,SPEEDO This part replaces 54600-18401.

54600-18403

Unavailable

12

DISK, FRONT BRAKE RH

59211-45250

Unavailable

13

DISK, FRONT BRAKE LH

59221-45250

Unavailable

14

BOLT

09100-08140

$2.10

15

WASHER

09169-08016

$2.41

16

TIRE (3.50V19) | BS

55100-49330

Unavailable

17

TUBE This part replaces 55200-15030.

55200-44611

$33.73

18

BALANCER, WHEEL NO.2 This part replaces 55411-49300.

55412-17G00

$7.05

19

BALANCER (30G)

55412-49300

Unavailable
