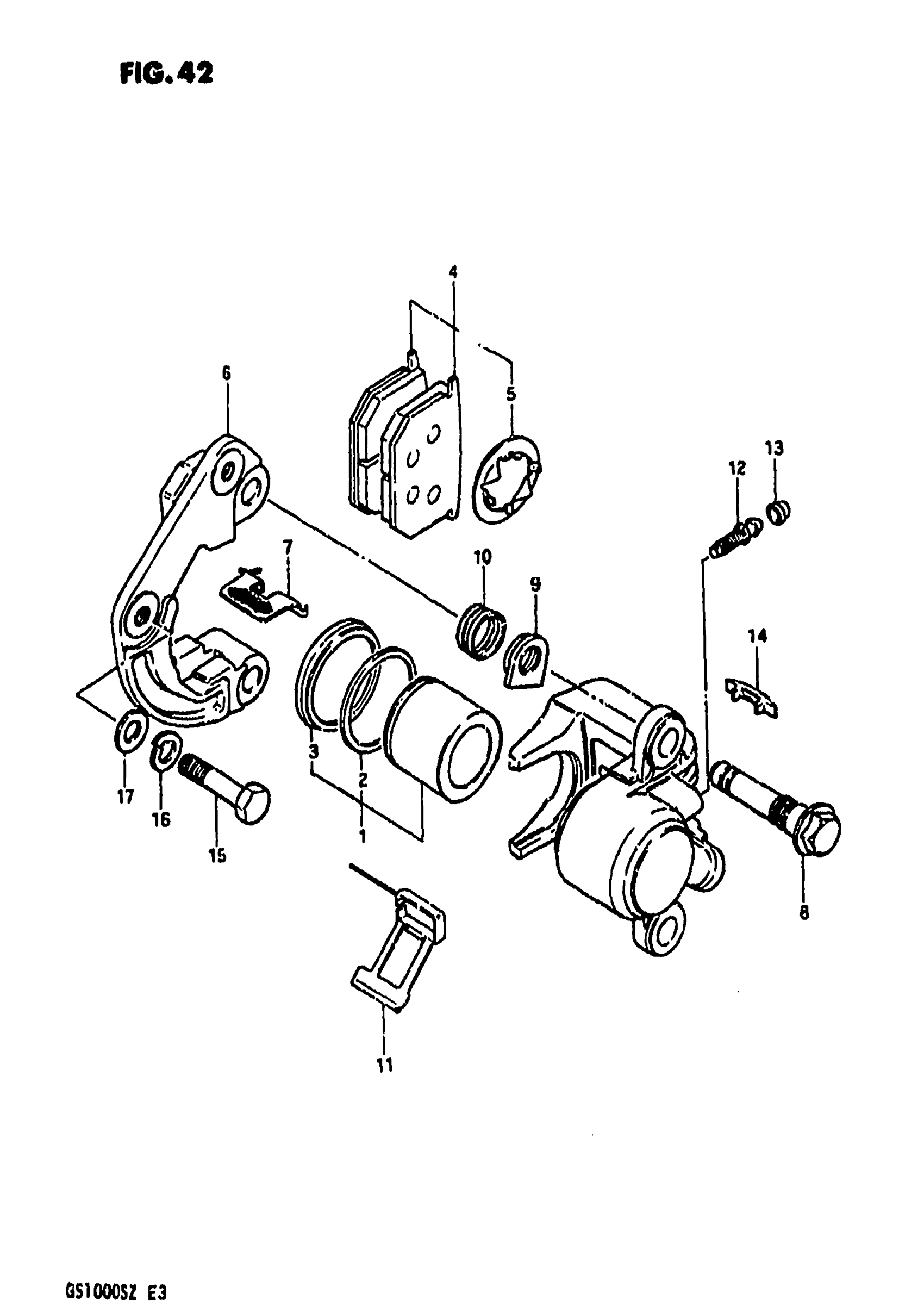

Suzuki GS1000S (1982) FRONT CALIPERS Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE This part replaces 59100-49002.

59100-49020

Unavailable

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 14 This part replaces 59300-49002.

59300-49020

Unavailable

1

PISTON SET This part replaces 59300-49810.

59300-49811

Unavailable

2

PISTON SEAL This part replaces 59107-34020.

59107-34021

Unavailable

3

BOOT, PISTON

59308-49000

Unavailable

4

PAD SET This part replaces 59300-49821.

59300-49850

Unavailable

5

SHIM PAD

59371-49000

Unavailable

6

HOLDER, CALIPERS RH

59150-49001

Unavailable

6

HOLDER, CALIPERS LH

59350-49001

Unavailable

7

GUIDE, PAD

59316-49001

Unavailable

8

AXLE, CALIPERS This part replaces 59305-49000.

59305-49001

$42.64

9

NUT

59317-49000

Unavailable

10

BOOT

59312-49000

Unavailable

11

SPRING

59315-49000

Unavailable

12

BREATHER This part replaces 59121-47050.

59121-34020

$13.35

13

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

$5.17

14

COVER

59324-49000

Unavailable

15

BOLT (10X38) This part replaces 09104-10012.

09104-10029

$3.55

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

WASHER This part replaces 08322-21108.

08322-01107

$2.15
