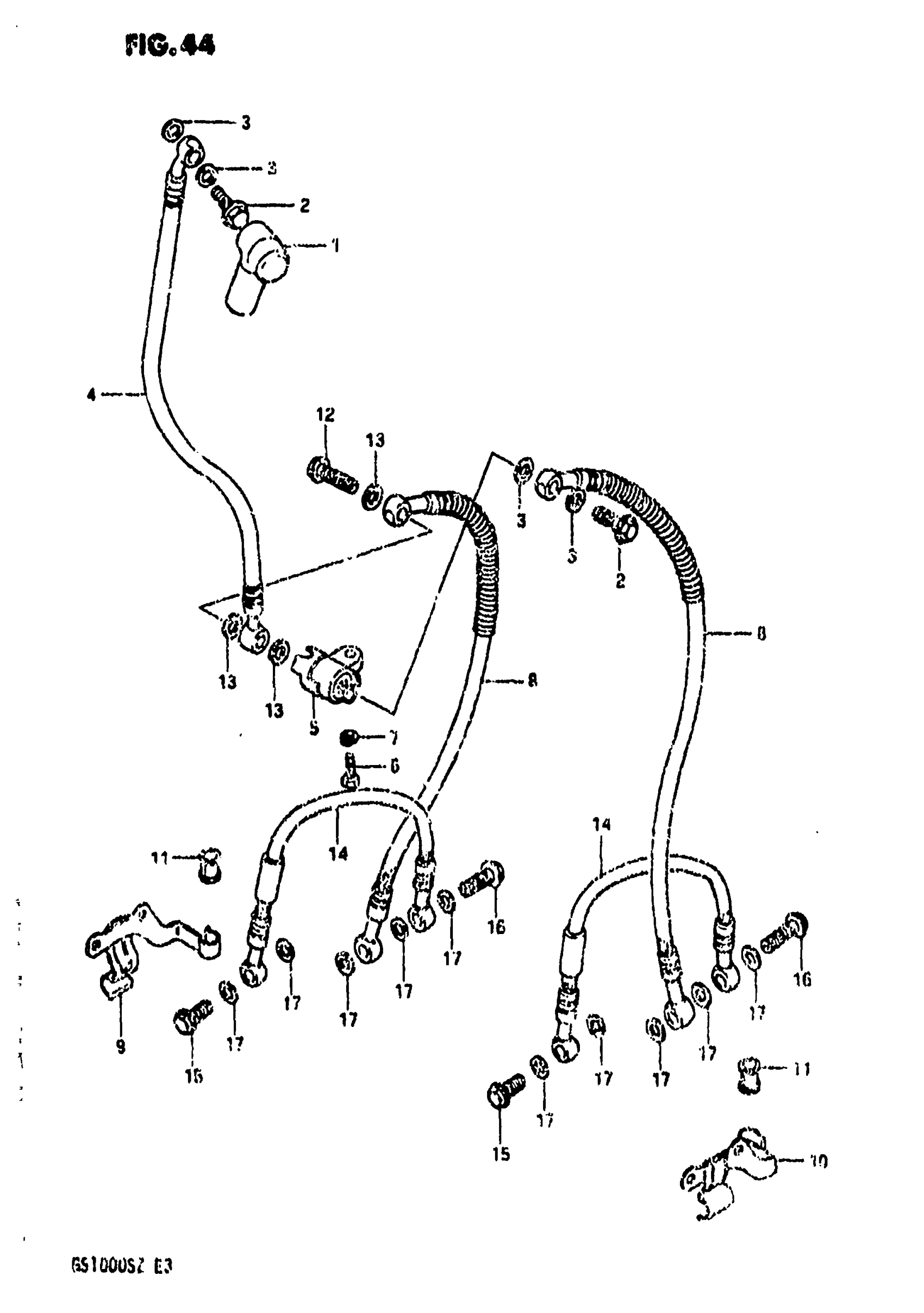

Suzuki GS1000S (1982) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT,MASTER CYL This part replaces 59711-49300.

59711-04701

$20.62

2

UNION This part replaces 09360-10007.

09360-10017

$3.42

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO.1

59480-49303

Unavailable

5

JOINT, BRAKE HOSE

59491-45010

Unavailable

6

BOLT This part replaces 01107-06208.

01500-06207

$2.28

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

HOSE BRAKE This part replaces 59240-49300.

59240-49400

Unavailable

9

HOSE BRAKE This part replaces 59240-49300.

59240-49400

Unavailable

10

CLAMP, HOSE LH This part replaces 59270-49300.

59270-49301

Unavailable

11

BUSHING

59244-49000

Unavailable

12

UNION BOLT This part replaces 09360-10008.

09360-10018

$6.80

13

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

14

HOSE,ANTINOSE-D This part replaces 59520-49302.

59520-45500

Unavailable

15

UNION BOLT

09360-10021

Unavailable

16

UNION BOLT This part replaces 09360-10008.

09360-10018

$6.80

17

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
