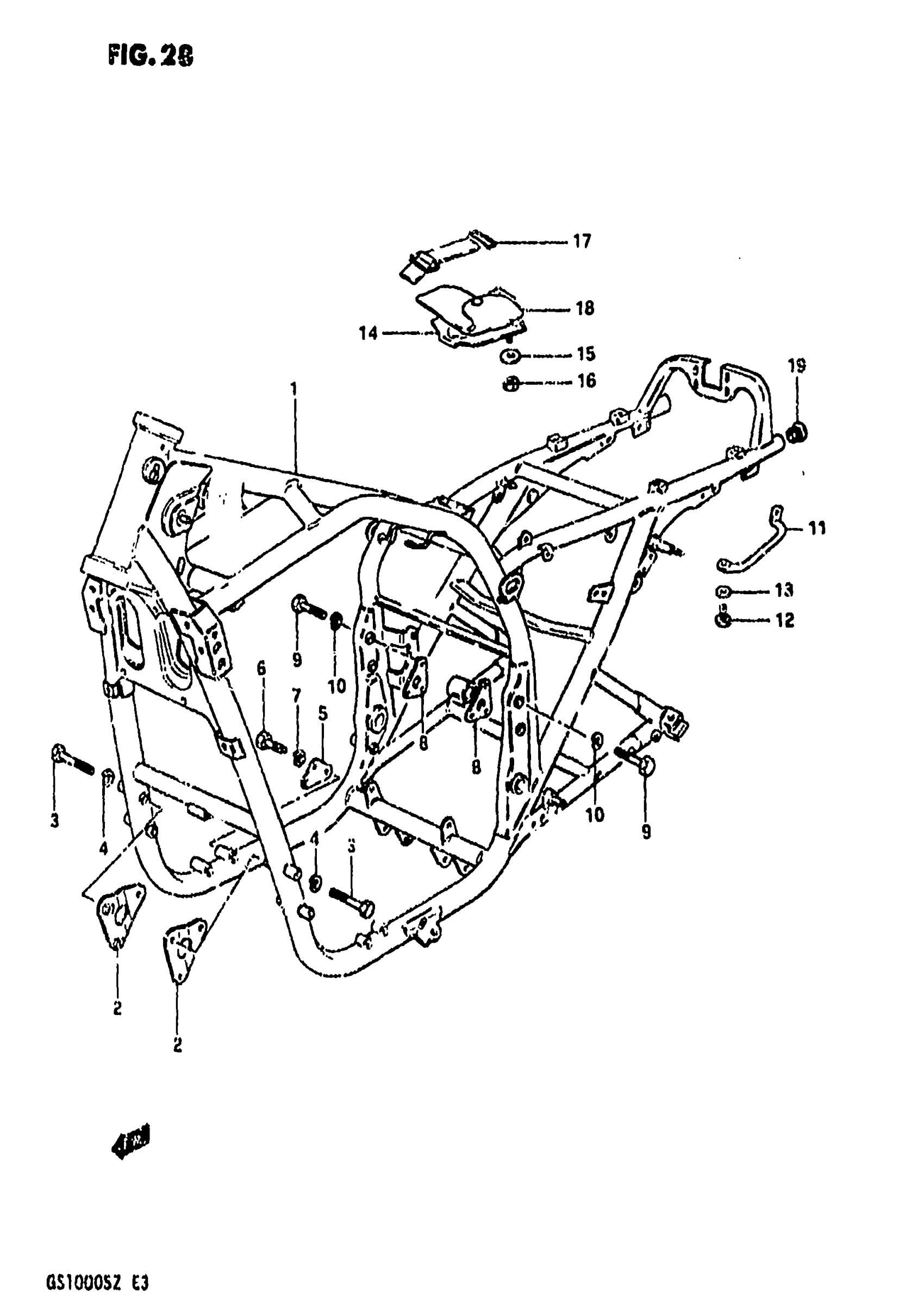

Suzuki GS1000S (1982) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | TO 41100-49301-13L WITH 09111-06038 This part replaces 41100-49301-13L.

41100-49900-13L

Unavailable

2

PLATE, NO.1 (BLACK) This part replaces 41910-49200-13L.

41910-49200-019

Unavailable

3

BOLT

09104-08021

$3.67

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, NO.2 (SILVER)

41921-49000-13L

Unavailable

6

BOLT, LH (8X16) This part replaces 09104-08019.

09104-08035

$2.69

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, NO.3 (SILVER)

41940-49000-13L

Unavailable

9

BOLT This part replaces 09104-08020.

09104-08030

Unavailable

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

GRIP, FRAME HANDLE

41610-49301

Unavailable

12

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

$16.00

15

WASHER

09160-06021

$2.53

16

.NUT This part replaces 08310-11068.

08310-00067

$2.13

17

BAND This part replaces 09462-00072.

09462-00094

$3.16

18

TOOL ASSY This part replaces 09800-00239.

09800-21068

Unavailable

19

PLUG, REAR

09250-22002

$1.99
