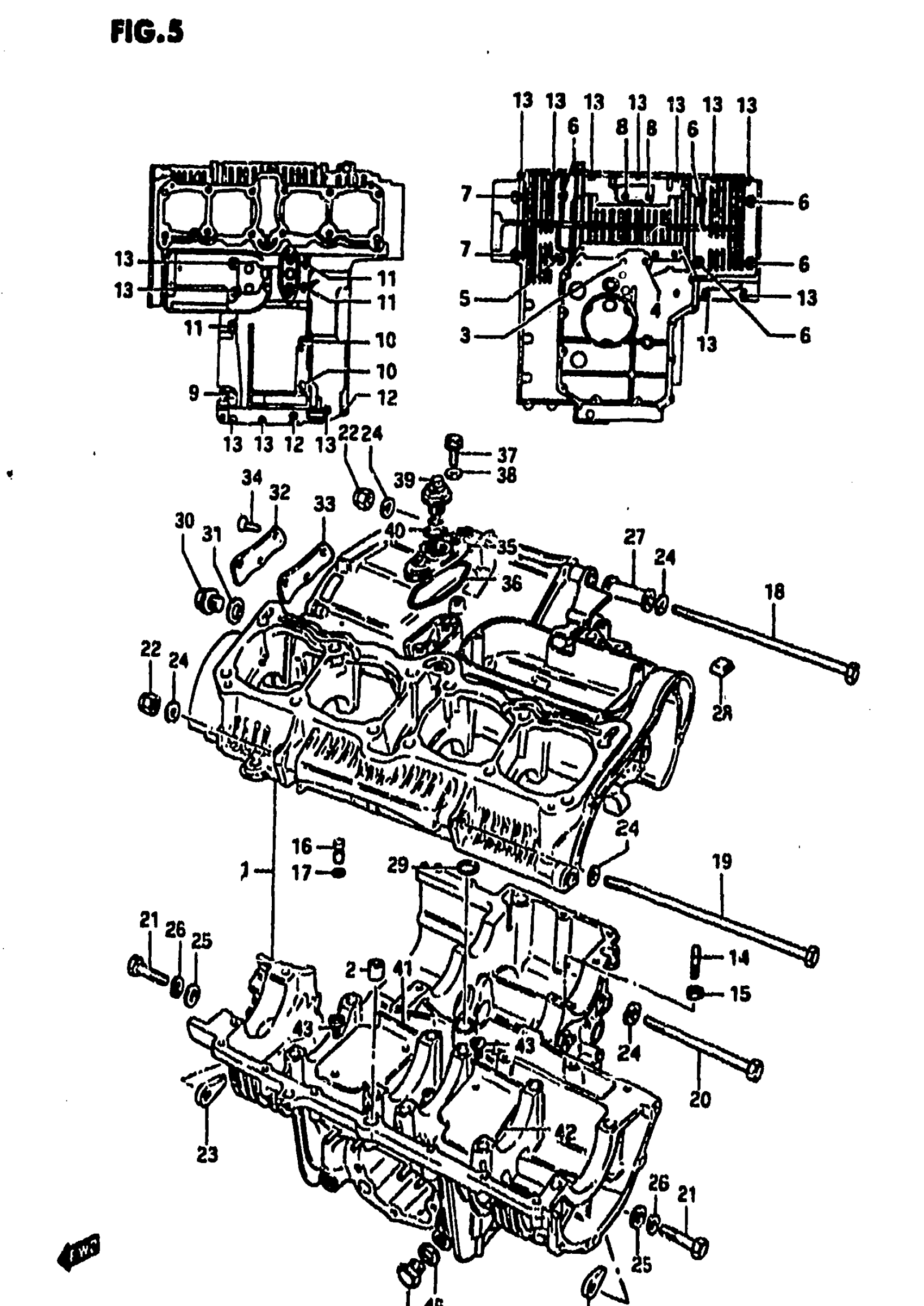

Suzuki GS1000S (1982) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 17 This part replaces 11300-49821.

11300-49826

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8x155)

09103-08059

Unavailable

4

BOLT (8X125) This part replaces 09103-08020.

09103-08106

Unavailable

5

BOLT (8X100) This part replaces 09103-08009.

09103-08070

$5.57

6

BOLT This part replaces 01517-08908.

01550-08907

$5.18

7

BOLT This part replaces 01517-08658.

01550-08657

$4.68

8

BOLT This part replaces 01517-08608.

01550-08607

$3.76

9

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

10

BOLT This part replaces 01517-06858.

01550-06857

$3.68

11

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$3.68

12

BOLT This part replaces 01517-06558.

01550-06557

$3.30

13

BOLT This part replaces 01517-06408.

01550-06407

$2.69

14

BOLT,STUD This part replaces 01421-06358.

01421-0635A

$2.38

15

NUT This part replaces 08316-16068.

08319-31067

$2.03

16

NOZZLE, OIL GALLERY

09364-05005

$3.73

17

O RING

09280-03003

$1.91

18

BOLT (10X225)

09104-10014

Unavailable

19

BOLT (10X250)

09104-10013

Unavailable

20

BOLT (10x165)

09100-10078

$12.70

21

BOLT (10x60)

09104-10015

Unavailable

22

NUT This part replaces 09159-10037.

09159-10064

$10.08

23

NUT

09159-10020

$5.18

24

WASHER This part replaces 08322-11108.

08322-01107

$2.15

25

WASHER

09160-10005

$1.87

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

27

SPACER

11610-49300

$18.02

28

RUBBER PAD, CRANKCOSE

11252-25000

$4.52

29

O RING, OIL GALLERY

09280-13001

$2.72

30

PLUG This part replaces 09247-14012.

09247-14026

$3.76

31

GASKET

09168-14004

$1.83

32

CAP, OIL GALLERY

11394-45000

Unavailable

33

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

34

SCREW This part replaces 02122-06168.

02122-06167

$1.49

35

HOUSING, SWITCH

16445-45000

Unavailable

36

O RING

16448-45000

$8.89

37

BOLT This part replaces 01517-06258.

01550-06257

$2.30

38

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

39

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

$31.65

40

O RING

09280-19001

$1.49

41

PLATE, OIL SEPARATER RH This part replaces 11521-49200.

11521-49201

Unavailable

42

PLATE, OIL SEPARATER LH This part replaces 11522-49200.

11522-49201

Unavailable

43

SCREW This part replaces 02112-06088.

02112-06087

$1.49

44

PLUG, ENGINE OIL

09247-14013

$2.30

45

WASHER

09168-14004

$1.83
