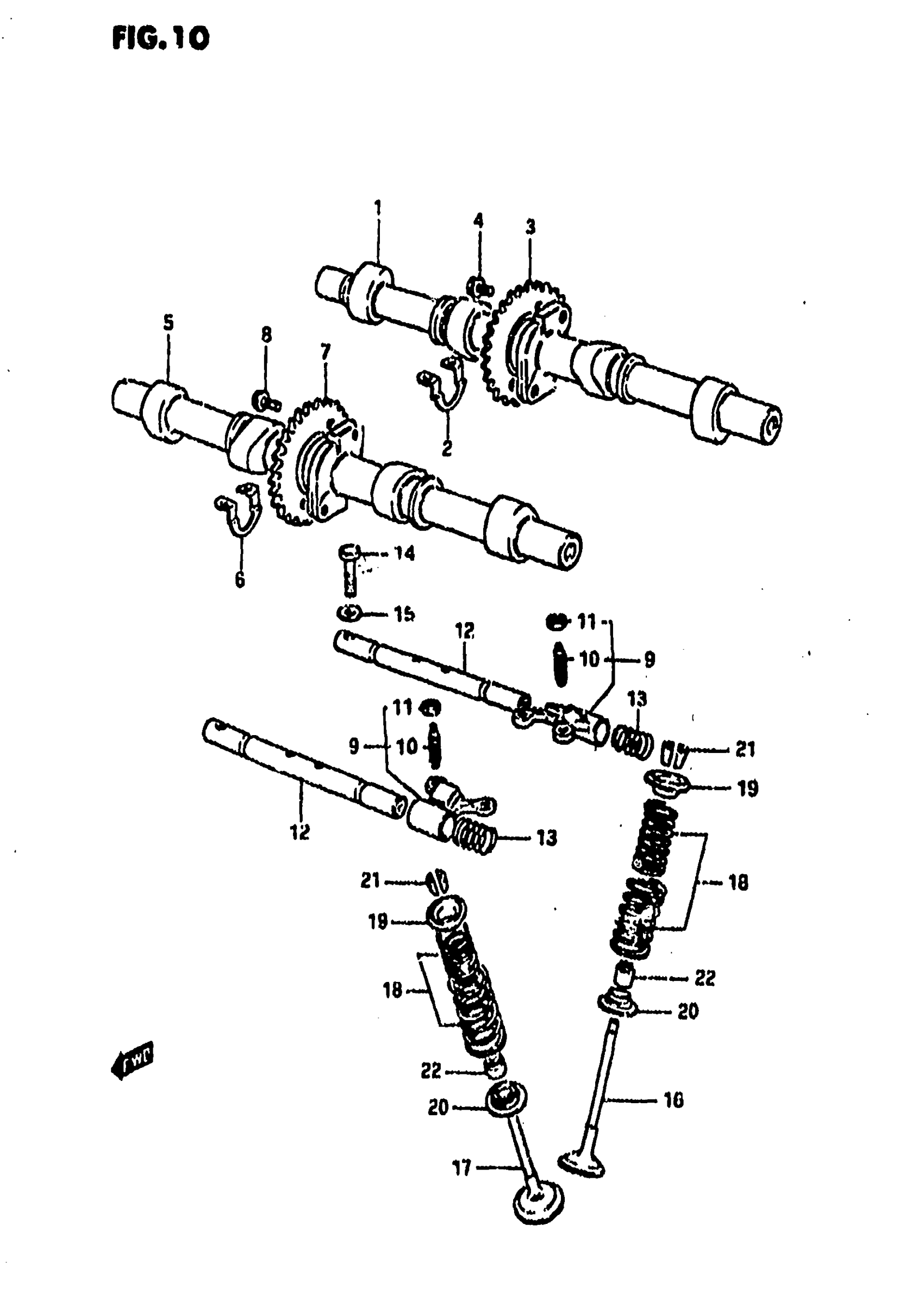

Suzuki GS1000S (1982) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE | Includes Item(s) 2 - 2

12700-49810

Unavailable

2

SHIM (T:0.4)

12712-45070

Unavailable

2

SHIM (T:0.5)

12712-45071

Unavailable

2

SHIM (T:0.6)

12712-45072

Unavailable

3

SPROCKET, INTAKE (NT:30) This part replaces 12741-44201.

12741-49011

Unavailable

4

BOLT

09103-07001

$2.43

5

CAM SHAFT, EXHAUST | Includes Item(s) 6 - 6

12700-45820

Unavailable

6

SHIM (T:0.4)

12712-45070

Unavailable

6

SHIM (T:0.5)

12712-45071

Unavailable

6

SHIM (T:0.6)

12712-45072

Unavailable

7

SPROCKET, EXHAUST (NT:30)

12751-47002

Unavailable

8

BOLT

09103-07001

$2.43

9

ARM, VALVE ROCKER | Includes Item(s) 10 - 11 This part replaces 12840-49200.

12840-49201

$81.62

10

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

11

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

$2.94

12

SHAFT, VALVE ROCKER ARM This part replaces 12860-49200.

12860-31300

Unavailable

13

SPRING

09440-13014

$2.45

14

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

VALVE, INTAKE

12911-49220

$37.40

17

VALVE, EXHAUST

12912-49220

$64.30

18

SPRING SET, VALVE

12920-49210

Unavailable

19

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

20

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

21

COTTER, VALVE

12932-49200

$2.28

22

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
