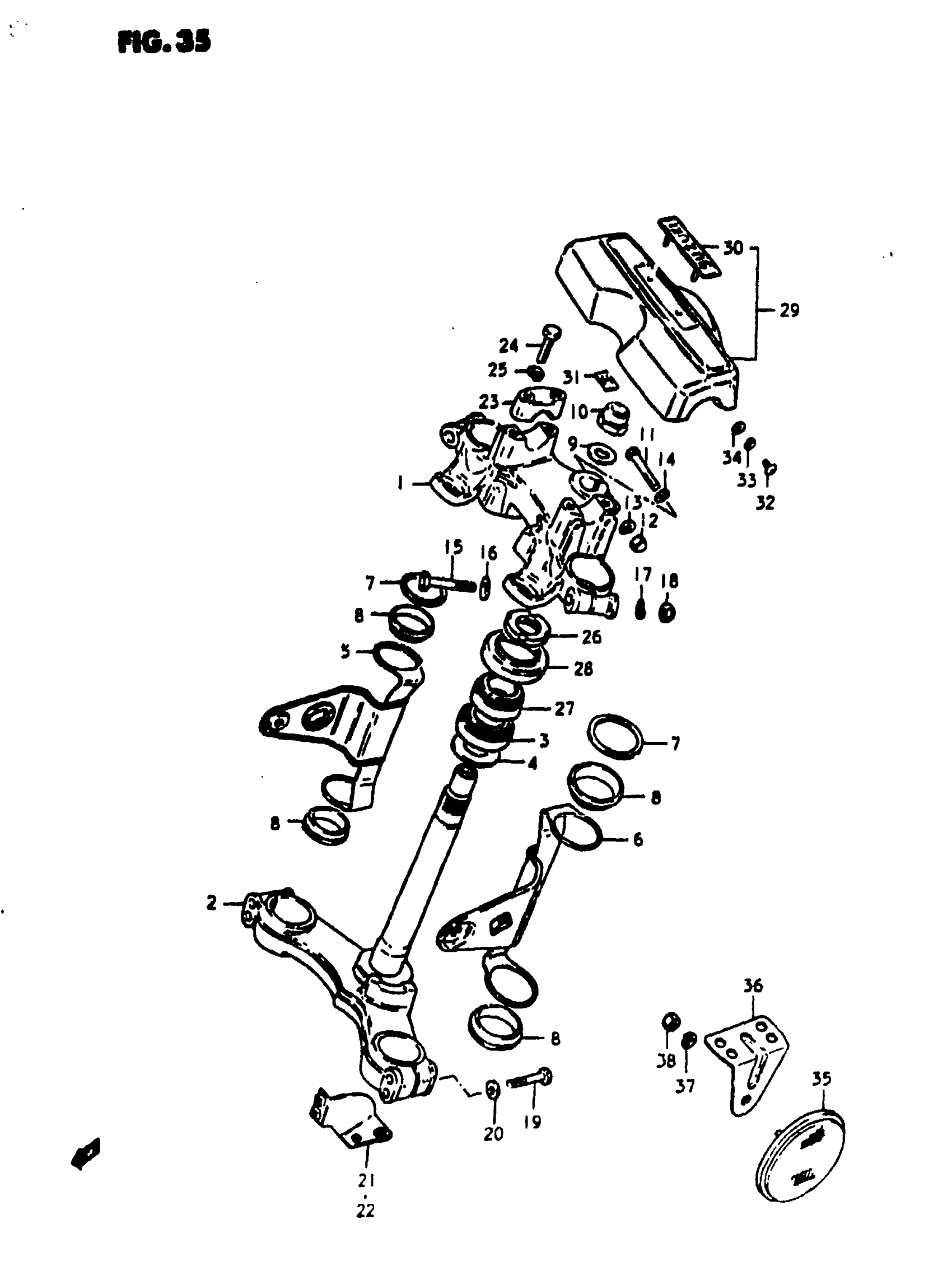

Suzuki GS1000S (1980) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD | BLACK

51311-49000-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51410-49071.

51410-49772-291

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE | BLACK This part replaces 51530-49000-291.

51500-49810-291

Unavailable

6

BRACKET, HEADLAMP LH | BLACK

51540-49000-291

Unavailable

7

SPACER

51555-49741

Unavailable

8

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.52

9

WASHER

51356-31700

Unavailable

10

NUT

51353-45000

$9.69

11

BOLT This part replaces 01107-08508.

01500-08507

$3.05

12

NUT This part replaces 08313-11088.

08313-10087

$2.28

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13

15

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

16

WASHER This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

NUT This part replaces 08313-11108.

08313-10107

$2.50

19

BOLT This part replaces 01107-08558.

01500-08557

$3.16

20

WASHER This part replaces 08322-21088.

08322-01087

$2.13

21

GUIDE, COWLING RH | BLACK

51458-49741-291

Unavailable

22

GUIDE, COWLING LH | BLACK

51468-49741-291

Unavailable

23

CLAMP, HANDIEBAR UPPER | BLACK

56211-29320-291

$15.51

24

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

NUT, STEERING STEM

51631-28000

$17.37

27

BEARING, UPPER

09265-25008

Unavailable

28

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

29

PAD, HANDLEBAR | Includes Item(s) 30 - 31

56170-45100

Unavailable

30

EMBLEM

68281-45100

$16.87

31

NUT

09148-03002

$2.15

32

SCREW This part replaces 02112-05108.

02112-05107

$1.49

33

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

34

WASHER This part replaces 08322-21058.

08322-01057

$2.13

35

REFLEX REFLECTOR, FRONT

35950-49080

$17.24

36

BRACKET

35975-49000

Unavailable

37

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

38

NUT This part replaces 08310-11058.

08310-00057

$1.84
