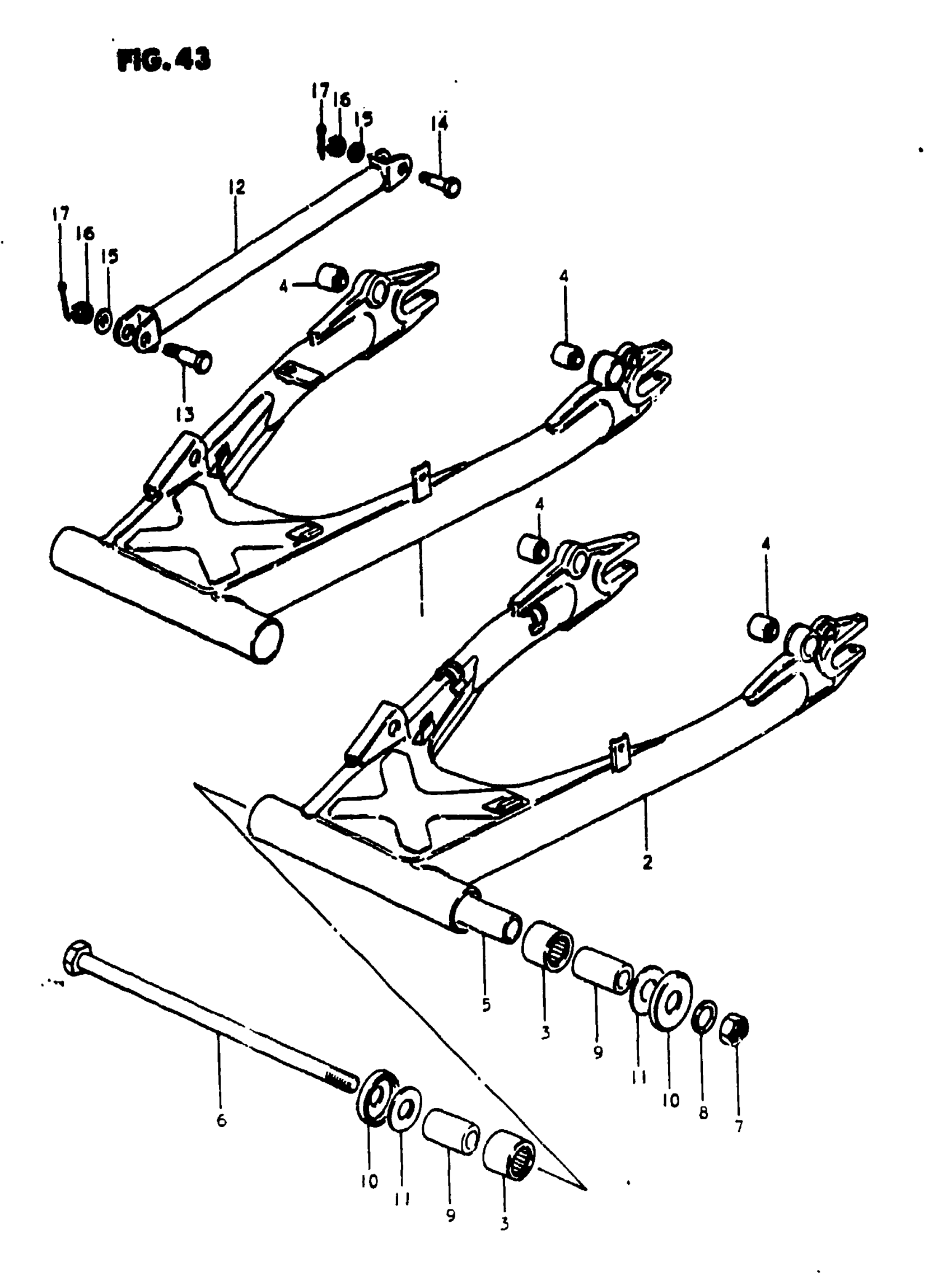

Suzuki GS1000S (1980) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | WITH 69480-49002 This part replaces 61100-49810-019.

61100-49812-019

Unavailable

2

NO DESCRIPTION AVAILABLE | WITH 69480-49003; Includes Item(s) 3 - 5 This part replaces 61100-49811-019.

61100-49812-019

Unavailable

3

BEARING

09263-25024

$25.92

4

BUSHING, REAR

09319-10008

$7.40

5

SPACER, CENTER

61282-49000

Unavailable

6

SHAFT, RR SWGAR This part replaces 61211-49000.

61211-49301

Unavailable

7

NUT This part replaces 08319-21168.

08319-2116A

$9.00

8

WASHER This part replaces 08322-11168.

08322-01167

$2.10

9

SPACER

61251-49000

$26.43

10

COVER, DUST SEAL

61262-49000

Unavailable

11

WASHER

08211-16381

$2.42

12

TORQUE LINK, REAR | BLACK

64310-49010-019

Unavailable

13

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

14

BOLT, REAR

09101-10017

Unavailable

15

WASHER This part replaces 08322-11108.

08322-01107

$2.15

16

NUT This part replaces 08314-41108.

08314-4010B

$2.50

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
