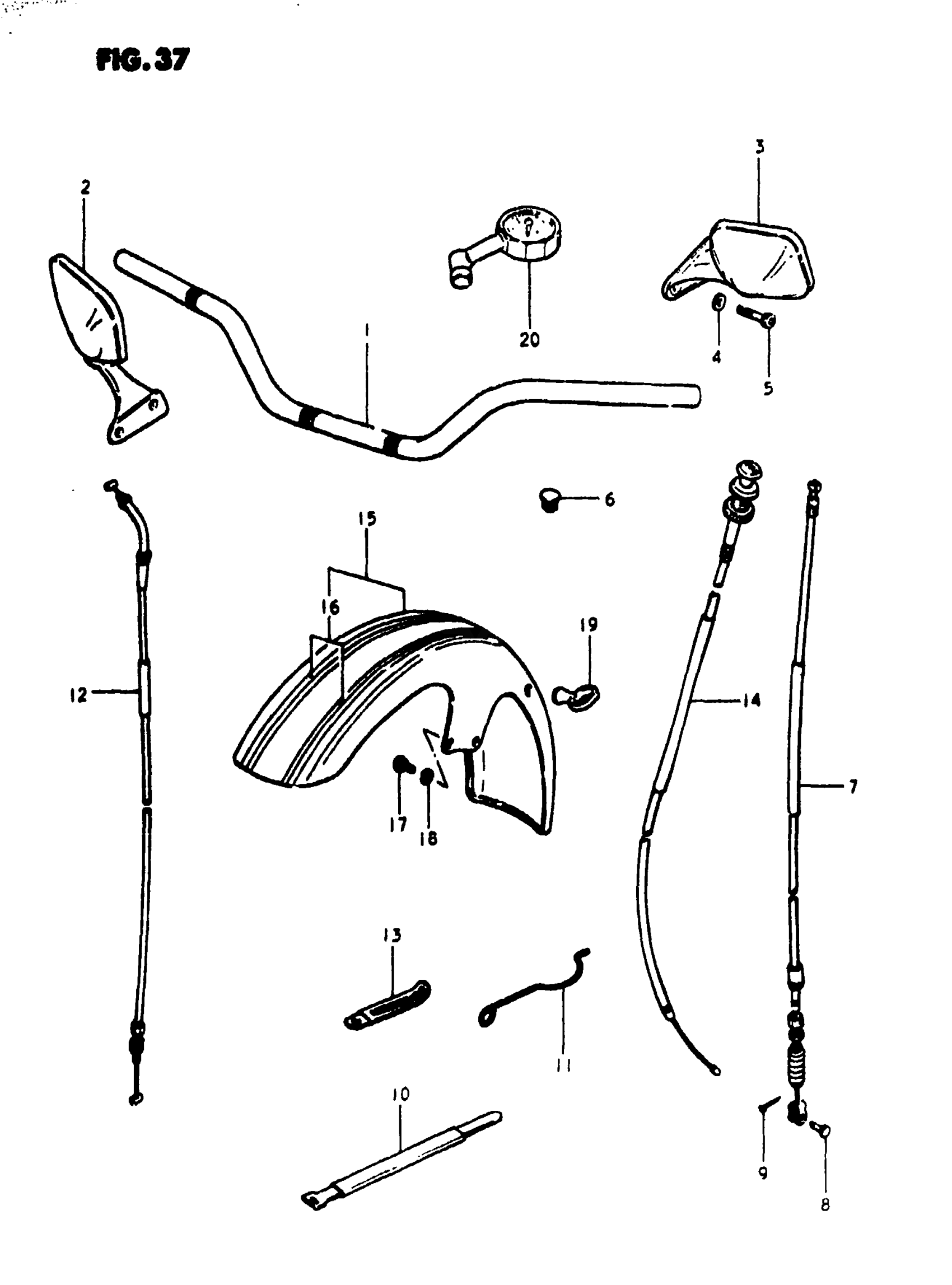

Suzuki GS1000S (1980) HANDLEBAR - FRONT FENDER Diagram

#

Description
Price

1

HANDLEBAR

56111-49010

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 56500-49000.

56500-49001

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 - 5 This part replaces 56600-49000.

56600-49001

Unavailable

4

WASHER

56537-49000

Unavailable

5

.BOLT This part replaces 09106-06004.

07130-06207

$3.04

5

BOLT (L:45)

09106-06007

Unavailable

6

CAP This part replaces 09250-09001.

09250-09008

$1.54

7

CABLE, CLUTCH

58200-49011

Unavailable

8

PIN

09200-06011

Unavailable

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

11

GUIDE, CABLE

58621-45100

Unavailable

12

CABLE, THROTTLE

58300-47060

Unavailable

13

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

14

CABLE, STARTER

58400-45110

Unavailable

15

NO DESCRIPTION AVAILABLE | Includes Item(s) 16 This part replaces 53100-49810-68U.

53110-49030-13L

Unavailable

16

TAPE SET

68101-49880-62R

Unavailable

17

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68

20

GAUGE, FRONT FORK ARI

96200-41330

Unavailable
