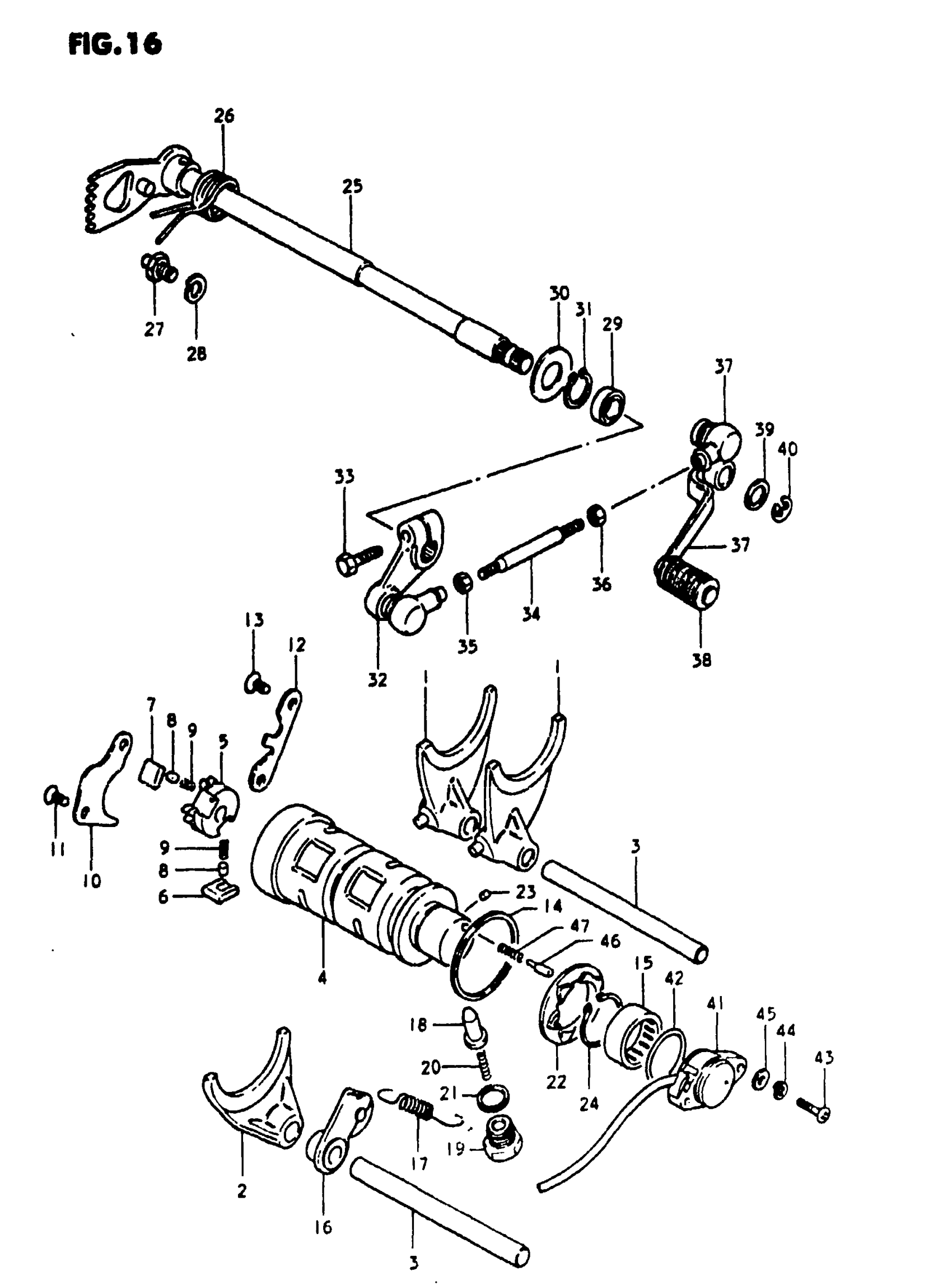

Suzuki GS1000S (1980) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, DRIVEN GEAR SHIFTING | 4TH & 5TH

25211-34000

Unavailable

2

NO DESCRIPTION AVAILABLE | 3RD This part replaces 25231-34000.

25231-34X00

Unavailable

3

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

$23.07

4

CAM, GEAR SHIFTING

25310-49000

Unavailable

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

8

PIN

09261-05003

$1.54

9

SPRING

09440-04003

$1.54

10

LIFTER, PAWL

25331-11001

$6.38

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

GUIDE, CAM

25341-18000

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

WASHER

09160-40001

Unavailable

15

BEARING

09263-25018

$21.39

16

STOPPER, CAM

25350-34000

$15.42

17

SPRING

09443-08012

Unavailable

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

19

HOLDER, STOPPER

25354-30000

$9.17

20

SPRING

09440-06018

Unavailable

21

GASKET

09168-14004

$1.83

22

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

$20.45

23

PIN This part replaces 06211-04063.

04221-04069

$2.12

24

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-11258.

08331-31256

$1.49

25

NO DESCRIPTION AVAILABLE This part replaces 25510-49000.

25510-49001

Unavailable

26

SPRING

09444-26017

$4.60

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

28

.LOCK WASHER This part replaces 09162-08005.

08321-01087

$2.13

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

30

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

31

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78

32

ARM,GEAR SHIFT This part replaces 25520-47000.

25520-47021

$42.92

33

BOLT This part replaces 01107-06208.

01500-06207

$2.28

34

NO DESCRIPTION AVAILABLE This part replaces 25525-49010.

25525-26D00

Unavailable

35

.NUT This part replaces 08310-11068.

08310-00067

$2.13

36

NUT, L

09140-06011

$1.49

37

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 38

25600-49010

Unavailable

38

COVER This part replaces 25652-49000.

25652-20C00

$5.44

39

WASHER

09160-12011

$1.54

40

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

41

BODY, SWITCH

37720-44600

Unavailable

42

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

43

SCREW This part replaces 02112-05208.

02112-05207

$1.97

44

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

45

WASHER This part replaces 08322-21058.

08322-01057

$2.13

46

CONTACT

09209-05011

$2.20

47

SPRING

09440-04010

$1.54
