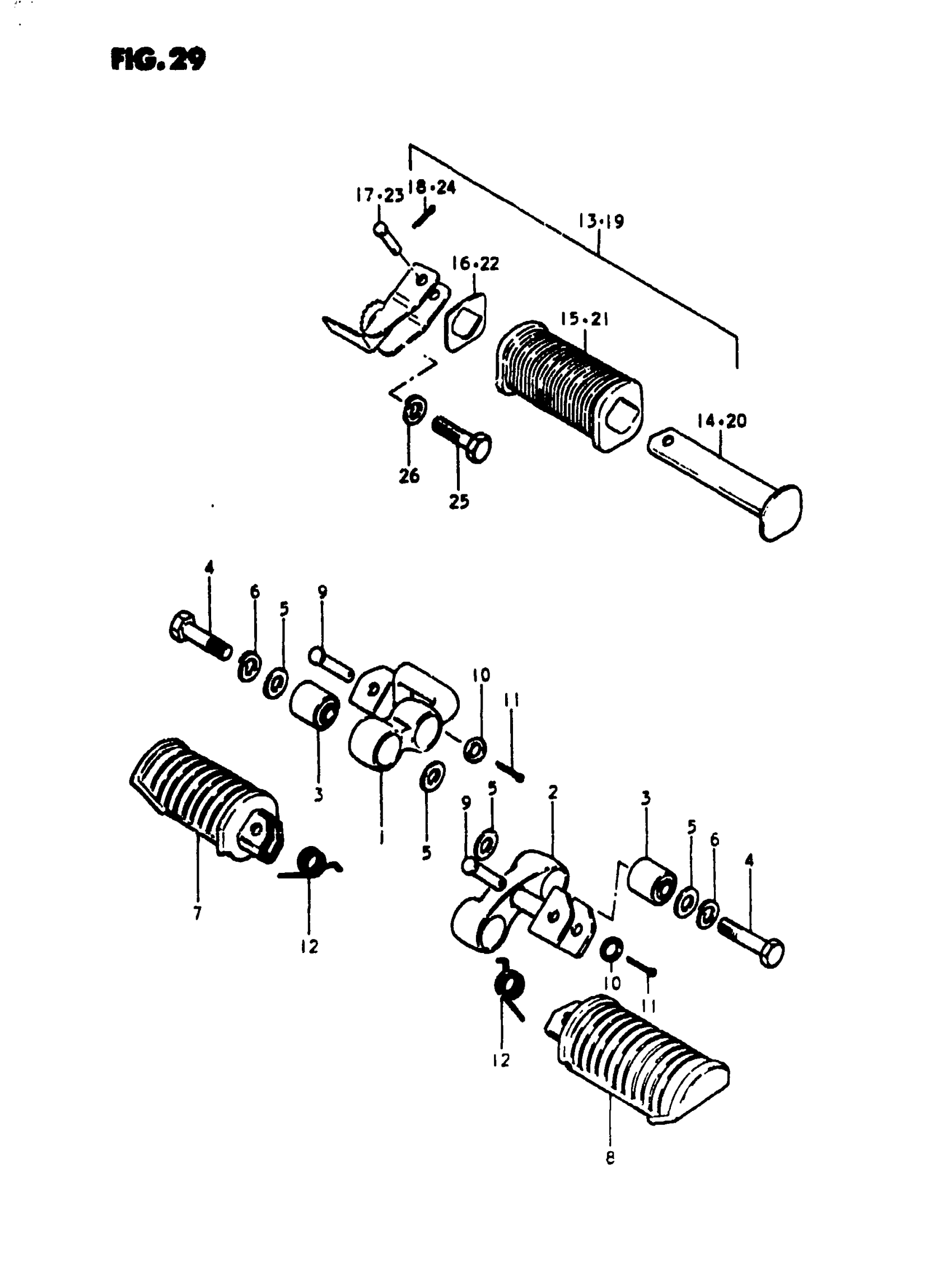

Suzuki GS1000S (1980) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH (BLACK)

43510-49050-019

Unavailable

2

BAR, FOOTREST LH (BLACK)

43520-49050-019

Unavailable

3

BUSHING

09319-10008

$7.40

4

BOLT (10X38) This part replaces 09104-10007.

09104-10029

$3.55

5

WASHER This part replaces 09160-10013.

09160-10123

$2.12

6

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

7

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$25.47

8

FOOTREST LH This part replaces 43560-49002.

43560-37310

$32.98

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

SPRING This part replaces 09448-14013.

09448-14012

$3.04

13

FOOTREST, PILLION RH | ~F.NO. 532147 This part replaces 43600-49010.

43600-49011

Unavailable

13

FOOTREST, PILLION LH | ~F.NO. 532147; Includes Item(s) 14 - 18 This part replaces 43700-49010.

43700-49011

Unavailable

14

BAR, PILLION RH | ~F.NO. 532147 This part replaces 43610-45000.

43610-45001

Unavailable

14

BAR, PILLION LH | ~F.NO. 532147 This part replaces 43620-45000.

43620-45001

Unavailable

15

RUBBER | ~F.NO. 532147 This part replaces 43612-45000.

43612-45001

Unavailable

15

RUBBER | ~F.NO. 532147 This part replaces 43622-45000.

43612-45001

Unavailable

16

WASHER | ~F.NO. 532147 This part replaces 43631-45000.

43631-45001

Unavailable

17

PIN | ~F.NO. 532147

09200-06010

$1.72

18

.COTTER PIN | ~F.NO. 532147 This part replaces 04111-20158.

04111-2015A

$1.49

19

FOOTREST, PILLION RH | F.NO. 532148~

43600-49011

Unavailable

19

FOOTREST, PILLION LH | F.NO. 532148~; Includes Item(s) 20 - 24

43700-49011

Unavailable

20

BAR, RH | F.NO. 532148~

43610-45001

Unavailable

20

BAR, LH | F.NO. 532148~

43620-45001

Unavailable

21

COVER | F.NO. 532148~

43612-45001

Unavailable

22

WASHER | F.NO. 532148~

43631-45001

Unavailable

23

PIN | F.NO. 532148~

09200-06010

$1.72

24

.COTTER PIN | F.NO. 532148~ This part replaces 04111-20158.

04111-2015A

$1.49

25

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
