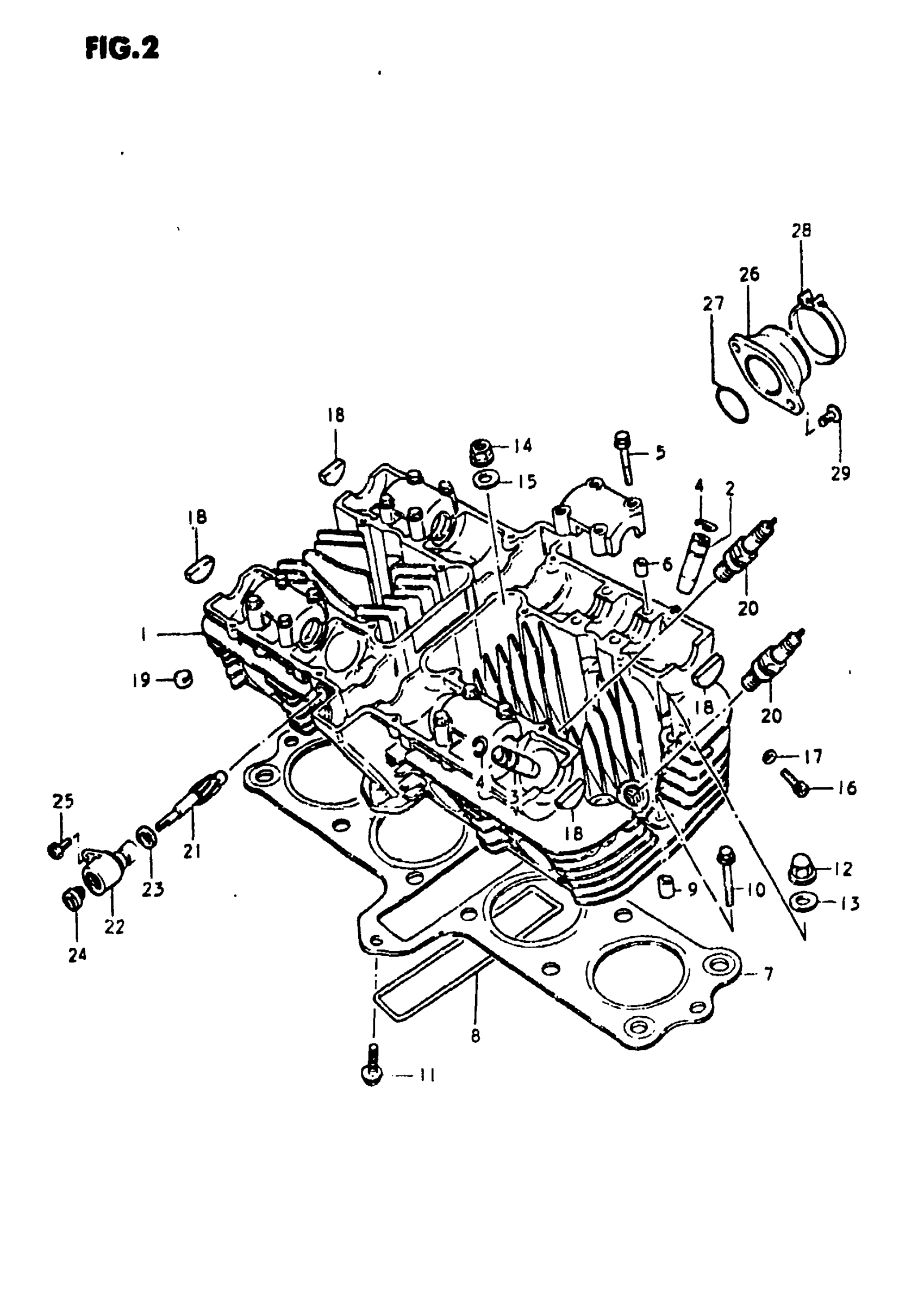

Suzuki GS1000S (1980) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-49830.

11100-49880

Unavailable

2

GUIDE, INTAKE VALVE

11115-45740

$40.73

3

GUIDE, EXHAUST VALVE

11116-45740

Unavailable

4

RING, VALVE GUIDE

09381-10003

$2.47

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

GASKET This part replaces 11141-49002.

11141-49410

Unavailable

8

O RING

09280-99003

Unavailable

9

PIN

04211-11189

$1.78

10

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

11

BOLT This part replaces 01517-06308.

01550-06307

$2.69

12

NUT

09159-10026

$6.20

13

GASKET

09168-10017

$3.04

14

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

15

WASHER

09160-10039

$2.26

16

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.62

17

GASKET

09168-05010

$1.71

18

PLUG, CYLINDER HEAD

09241-23002

$6.17

19

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

$3.37

20

SPARK PLUG (NGK, B8ES)

09482-00091

$3.01

20

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

Unavailable

21

GEAR, TACHO. DRIVEN (NT:10) This part replaces 26431-45001.

26431-45002

$48.23

22

SLEEVE

26441-49000

$30.58

23

SEAL BAND

26451-45000

$5.05

24

OIL SEAL

09289-05002

$8.43

25

SCREW

09128-05101

$1.49

26

PIPE, INTAKE

13110-49010

Unavailable

27

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

28

CLAMP

09402-54303

$3.91

29

SCREW This part replaces 02112-06168.

02112-06167

$1.49

30

WASHER This part replaces 08322-21068.

08322-01067

$2.13
