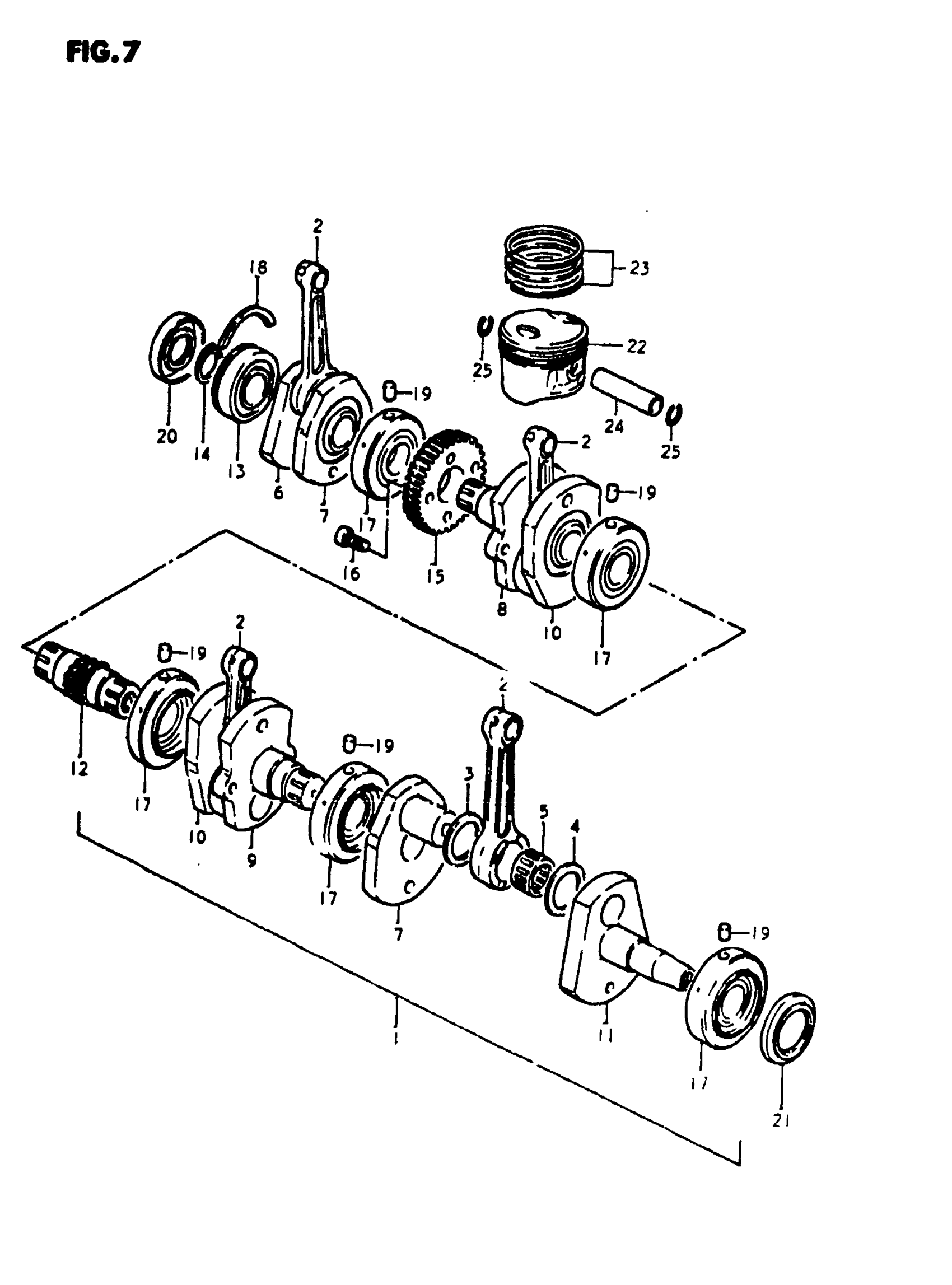

Suzuki GS1000S (1980) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 17 This part replaces 12200-49003.

12200-49006

Unavailable

2

ROD, CONNECTING

12161-49000

Unavailable

3

WASHER

09160-29008

Unavailable

4

WASHER

09160-29009

Unavailable

5

WASHER

09263-29002

Unavailable

6

CRANKSHAFT, RH

12220-49000

Unavailable

7

WEB, CRANKSHAFT

12230-49000

Unavailable

8

CRANKSHAFT, MIDDLE RH

12241-49002

Unavailable

9

CRANKSHAFT, MIDDLE RH This part replaces 12271-49010.

12241-49002

Unavailable

10

WEB, CRANKSHAFT MIDDLE

12250-49000

Unavailable

11

CRANKSHAFT, LH

12261-49001

Unavailable

12

SHAFT, CHAIN DRIVE (NT : 15)

12281-49002

Unavailable

13

BEARING, RH

09262-30033

Unavailable

14

CIRCLIP This part replaces 08331-11308.

08331-31309

$2.57

15

NO DESCRIPTION AVAILABLE This part replaces 21111-49002.

21111-49004

Unavailable

16

BOLT This part replaces 09106-08006.

07130-0816A

$3.16

17

BEARING This part replaces 09264-32005.

09264-32009

$201.55

18

C RING, BEARING RH

09390-72004

Unavailable

19

PIN

04221-07129

$1.86

20

OIL SEAL, RH

09283-30021

$19.20

21

OIL SEAL, STARTER CLUTCH

09289-48002

$10.77

22

PISTON (STD)

12111-49001

Unavailable

22

PISTON SET This part replaces 12111-49001-050.

12103-49810-050

Unavailable

22

PISTON (OS:1.0)

12111-49001-100

Unavailable

23

PISTON RING SET (STD)

12140-49001

Unavailable

23

PISTON RING SET (OS:0.5)

12140-49001-050

Unavailable

23

PISTON RING SET (STD) This part replaces 12140-49001-100.

12140-44110

Unavailable

24

PIN, PISTON This part replaces 12151-15002.

12151-13A00-0A0

$16.02

25

CIRCLIP

09381-18002

$1.67
