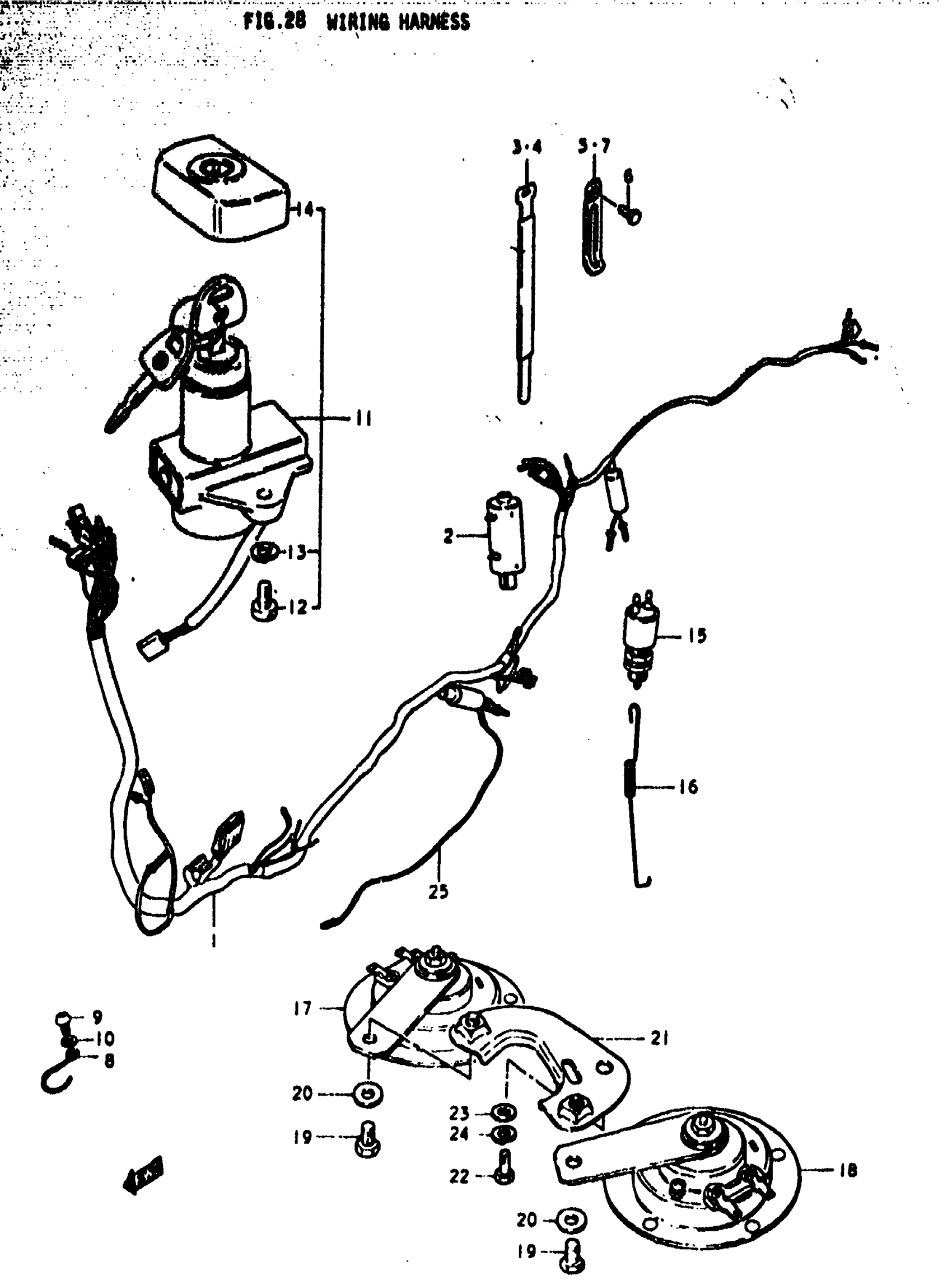

Find the part on the Wiring Harness diagram for your 1979 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS1000S Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-49041

1
Out of stock

2

BOOT, WIRING HARNESS

36618-30610

1
Out of stock

3

CLAMP | L:120

09407-12402

4
Out of stock

4

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

2
Out of stock

5

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

2
Out of stock

6

BOLT This part replaces 01107-06108.

01500-06107

1
Out of stock

7

CLAMP This part replaces 09404-08401.

09404-08420

1
Out of stock

8

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

1
Out of stock

9

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

10

.WASHER This part replaces 08322-11068.

08322-0106B

1
Out of stock

11

NO DESCRIPTION AVAILABLE | Includes Item(s) 12 - 14 This part replaces 37100-49010.

37100-49012

1
Out of stock

12

BOLT This part replaces 37152-47010.

07130-0616B

2
Out of stock

13

2

$2.28

In stock

14

COVER This part replaces 37155-49010.

37155-49011

1
Out of stock

15

SWITCH, BRAKE LAMP

37610-53011

1
Out of stock

16

SPRING This part replaces 09443-06018.

09443-06018-XC0

1
Out of stock

17

HORN ASSY This part replaces 38500-64130.

38502-49001

1
Out of stock

18

NO DESCRIPTION AVAILABLE This part replaces 38501-49000.

38501-47001

1
Out of stock

19

BOLT This part replaces 01107-08128.

01500-08127

2
Out of stock

20

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

21

BRACKET, HORN

38590-49002

1
Out of stock

22

BOLT, LH | 8x14 This part replaces 09100-08067.

09100-08143

2
Out of stock

23

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

24

2

$2.28

In stock

25

LEAD WIRE, OIL PRESSURE SWITCH

36852-49000

1
Out of stock
