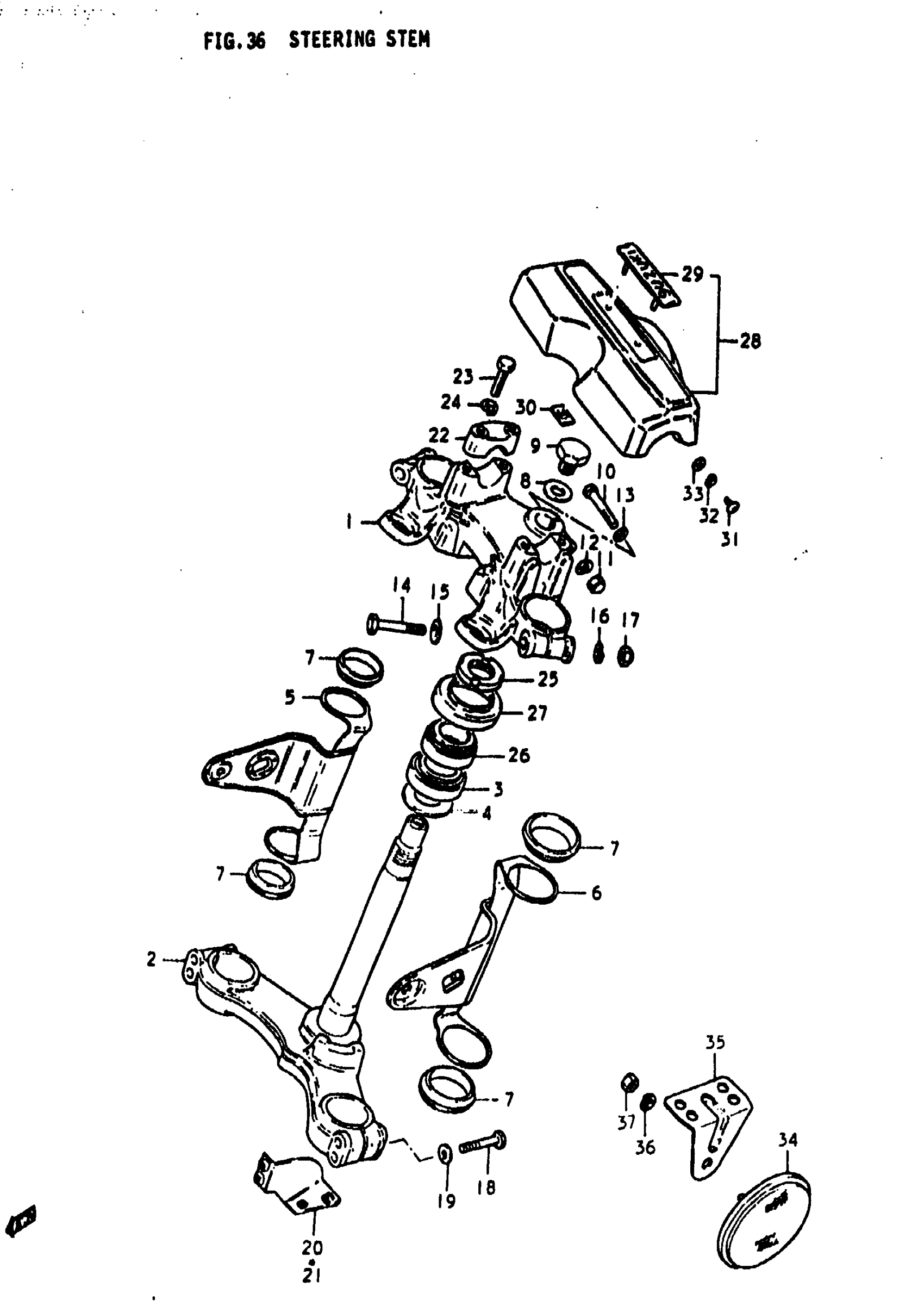

Suzuki GS1000S (1979) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-49000-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51410-49070.

51410-49702

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE This part replaces 51530-49000-291.

51500-49810-291

Unavailable

6

BRACKET, HEADLAMP LH

51540-49000-291

Unavailable

7

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.52

8

WASHER

51356-31700

Unavailable

9

NUT

51353-45000

$9.69

10

BOLT This part replaces 01107-08508.

01500-08507

$3.05

11

NUT This part replaces 08313-11088.

08313-10087

$2.28

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER This part replaces 08322-21088.

08322-01087

$2.13

14

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

NUT This part replaces 08313-11108.

08313-10107

$2.50

18

BOLT This part replaces 01107-08558.

01500-08557

$3.16

19

WASHER This part replaces 08322-21088.

08322-01087

$2.13

20

GUIDE, COWLING RH

51458-49741-291

Unavailable

21

GUIDE, COWLING LH

51468-49741-291

Unavailable

22

CLAMP, HANDLEBAR UPPER

56211-29320-291

$15.51

23

BOLT

01204-08357

$2.09

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

NUT, STEERING STEM

51631-28000

$17.37

26

BEARING, UPPER

09265-25008

Unavailable

27

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

28

PAD, HANDLEBAR | Includes Item(s) 29 - 30

56170-45100

Unavailable

29

EMBLEM

68281-45100

$16.87

30

NUT

09148-03002

$2.15

31

SCREW This part replaces 02112-05108.

02112-05107

$1.49

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

33

WASHER This part replaces 08322-21058.

08322-01057

$2.13

34

REFLEX REFLECTOR, FRONT SIDE

35950-49080

$17.24

35

BRACKET

35975-49000

Unavailable

36

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

37

NUT This part replaces 08310-11058.

08310-00057

$1.84
