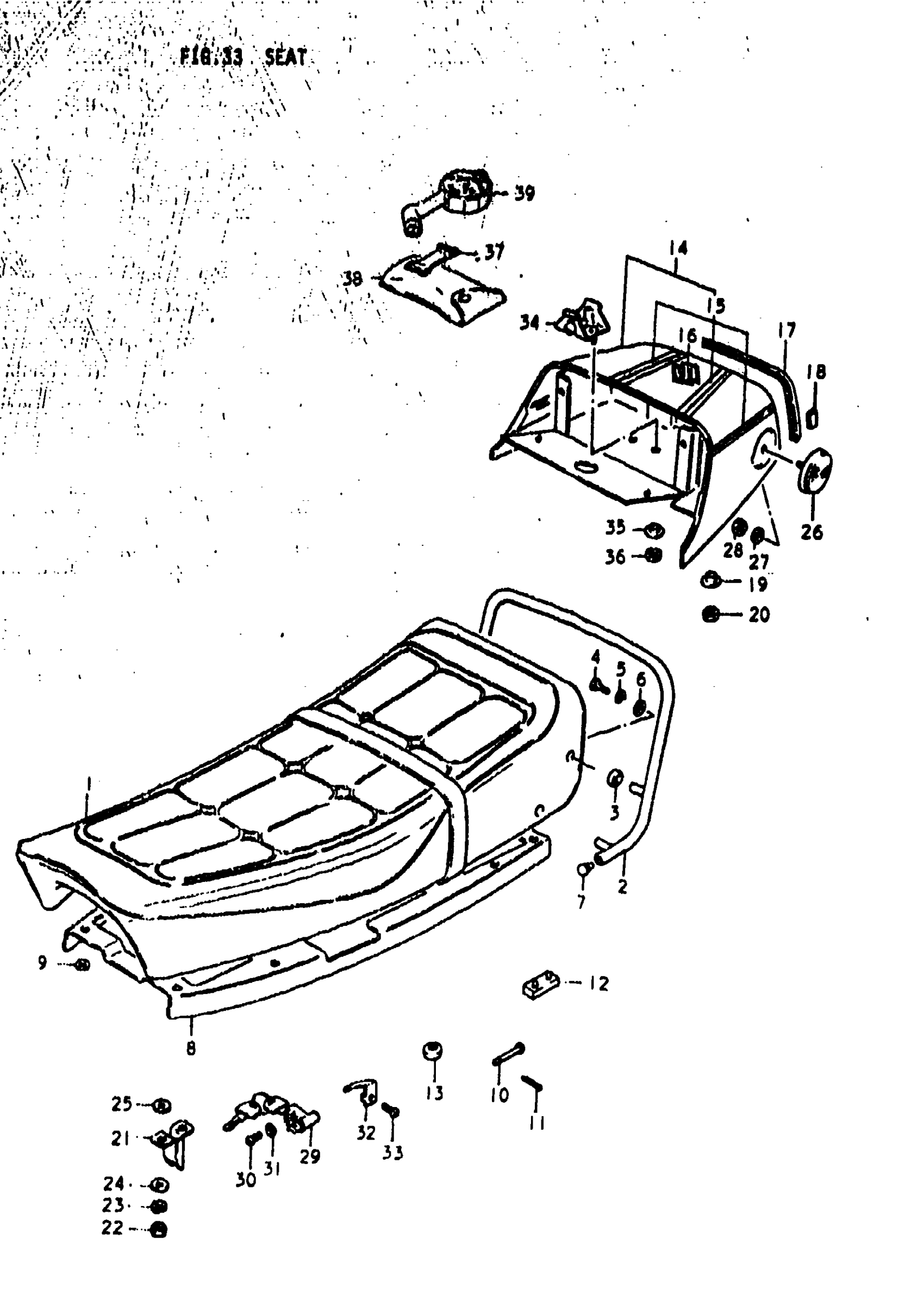

Suzuki GS1000S (1979) SEAT Diagram

#

Description
Price

1

SEAT, FLAT TYPE | Includes Item(s) 2 - 7

45100-49012-40P

Unavailable

2

HANDLE, PILLION RIDER

46211-49000

Unavailable

3

CUSHION

46212-49000

Unavailable

4

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

END, HANDLE

46213-49000

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 45191-49000-189.

45191-49001

Unavailable

9

NUT

09148-05012

$1.75

10

PIN

09200-06018

$2.06

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

CUSHION

09321-08006

$2.90

13

CUSHION

09321-10001

$2.61

14

NO DESCRIPTION AVAILABLE | Includes Item(s) 15 - 16 This part replaces 45500-49050-68U.

45510-49002

Unavailable

15

TAPE SET

68101-49890-62R

Unavailable

16

EMBLEM

68166-49050-07G

Unavailable

17

MOULDING, SEAT TALL COVER

45522-49000

Unavailable

18

CLIP

45523-49000

Unavailable

19

WASHER

09169-06016

$1.65

20

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

21

STRIKER, SEAT LOCK

45213-47000

Unavailable

22

.NUT This part replaces 08310-11068.

08310-00067

$2.13

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

26

REFREX REFLLCTOR, REAR

35970-49030

Unavailable

27

WASHER This part replaces 08322-21058.

08322-01057

$2.13

28

NUT This part replaces 08310-11058.

08310-00057

$1.84

29

SEAT LOCK SET

95700-45813

Unavailable

30

SCREW This part replaces 02112-05128.

02112-05127

$1.97

31

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

32

SPRING, HELMET HOLDER

95722-45000

Unavailable

33

SCREW This part replaces 02112-05088.

02112-05087

$1.49

34

HOLDER, TOOL

41550-49000

Unavailable

35

WASHER

09169-06011

$3.45

36

.NUT This part replaces 08310-11068.

08310-00067

$2.13

37

BAND This part replaces 09462-00072.

09462-00094

$3.16

38

TOOL ASSY This part replaces 09800-00192.

09800-21068

Unavailable

39

GAUGE, FRONT FORK AIR This part replaces 96200-41310.

96200-41330

Unavailable
