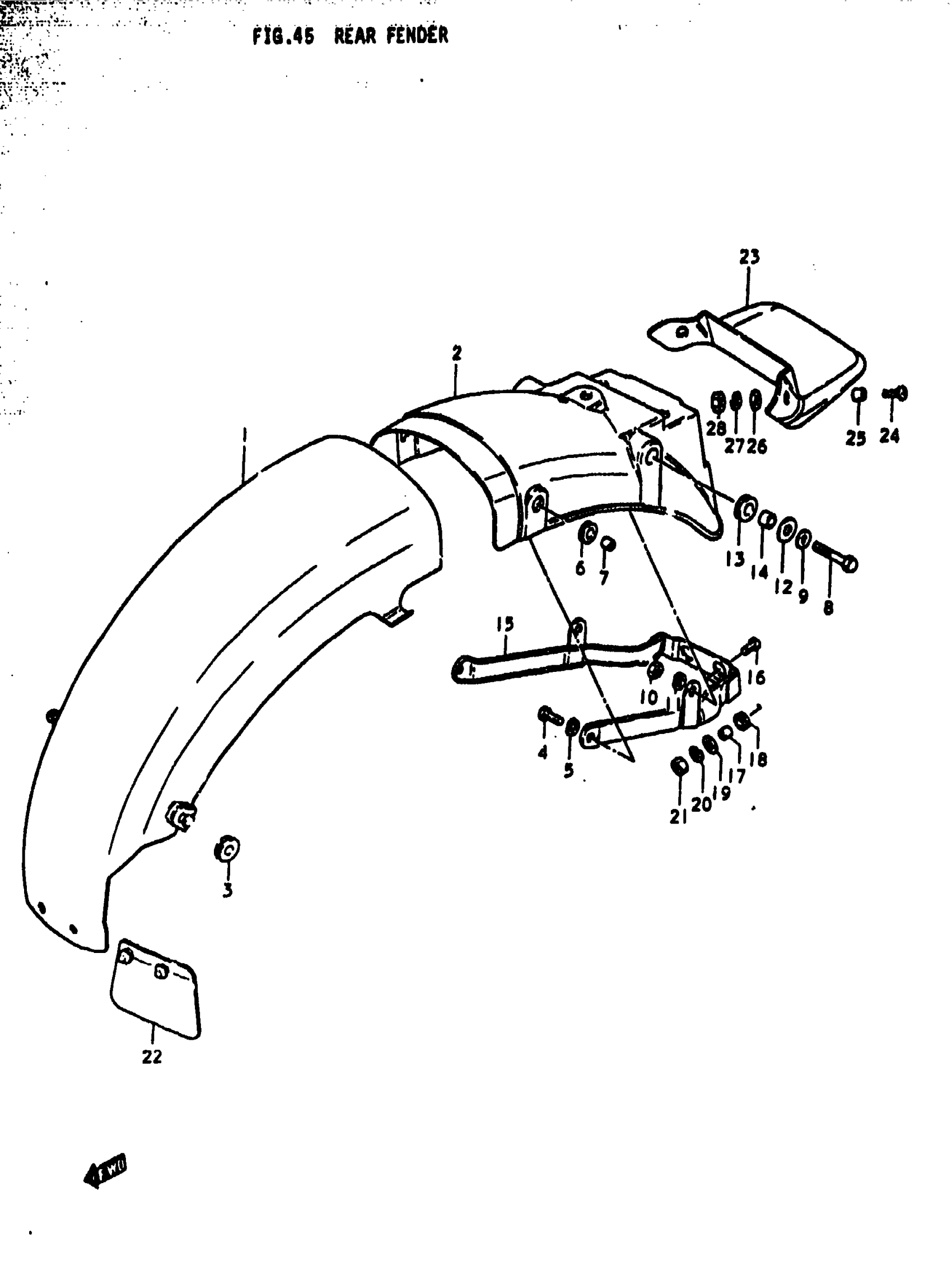

Suzuki GS1000S (1979) REAR FENDER Diagram

#

Description
Price

1

BODY,RR FENDER This part replaces 63112-49001.

63112-49004

Unavailable

2

BODY, REAR FENDER REAR

63113-49000-291

Unavailable

3

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

4

BOLT This part replaces 01107-06208.

01500-06207

$2.28

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

7

SPACER | 6.1x9x7.5

09180-06038

$1.98

8

BOLT

01204-08457

$2.90

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

NUT This part replaces 08310-12088.

08310-00087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER | 8.5x26x1.2

09160-08032

$2.30

13

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

14

SPACER | 8.2x11.8x7.5 This part replaces 09180-08021.

09180-08188

$2.56

15

REINFORCEMENT, REAR FENDER

63120-49000

Unavailable

16

SCREW

02142-06207

$1.49

17

SPACER (6.5X9X9) | 6.1x9x9 This part replaces 09180-06011.

09180-06263

$2.03

18

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

19

WASHER | 6.5x22x1.6 This part replaces 09160-06012.

09160-06054

$1.62

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

.NUT This part replaces 08310-11068.

08310-00067

$2.13

22

MUD GUARD

63411-31900

Unavailable

23

EXTENTION, REAR FENDER | OPT

63311-49030

Unavailable

24

SCREW | OPT This part replaces 09125-06009.

09125-06073

$1.84

25

SPACER | OPT

09180-06001

$2.30

26

WASHER (6.5X18X1.0) | OPT

09160-06028

$1.49

27

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

28

.NUT | OPT This part replaces 08310-11068.

08310-00067

$2.13
