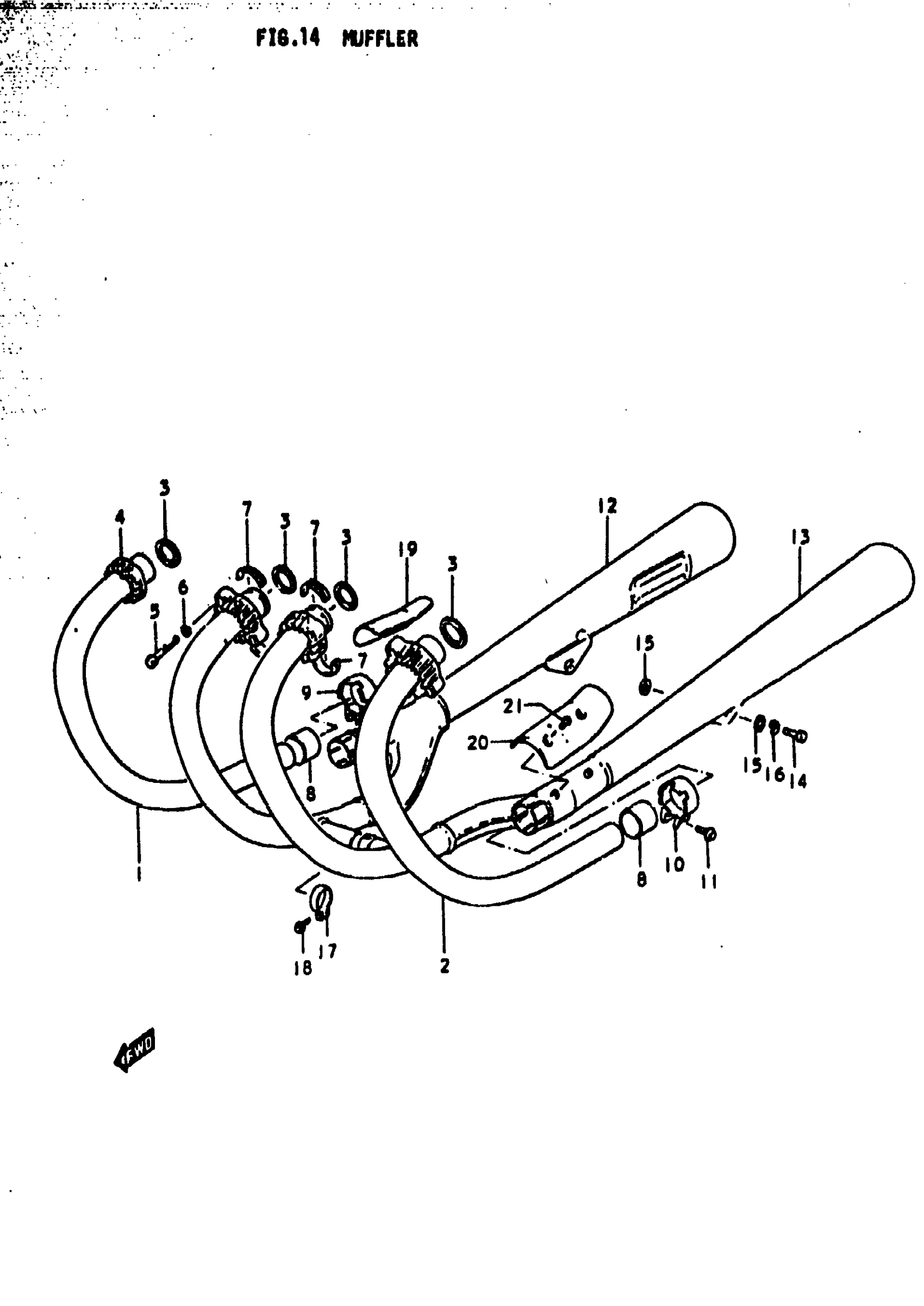

Suzuki GS1000S (1979) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-49000

Unavailable

2

PIPE, EXHAUST LH

14160-49000

Unavailable

3

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

4

CLAMP

14182-49000

Unavailable

5

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

PLATE, EXHAUST PIPE

14155-49000

$5.02

8

CONNECTOR,MUFFL This part replaces 14771-49000.

14771-49010

$27.48

9

CLAMP, CONNECTOR RH

14459-49000

Unavailable

10

CLAMP, CONNECTOR LH

14469-49000

Unavailable

11

BOLT This part replaces 01517-08258.

01550-08257

$2.81

12

NO DESCRIPTION AVAILABLE This part replaces 14310-49001.

14305-49001-H01

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 14340-49001.

14306-49001-H01

Unavailable

14

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

15

WASHER | 8.5x20x1.6 This part replaces 08322-21108.

08322-01107

$2.15

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

CLAMP, EXHAUST COUPILER

09402-37601

Unavailable

18

BOLT This part replaces 01517-06258.

01550-06257

$2.30

19

COVER, MUFFLER RH

14781-49000

Unavailable

20

COVER, MUFFLER LH

14791-49000

Unavailable

21

SCREW This part replaces 02112-05068.

09125-05122

$2.06
