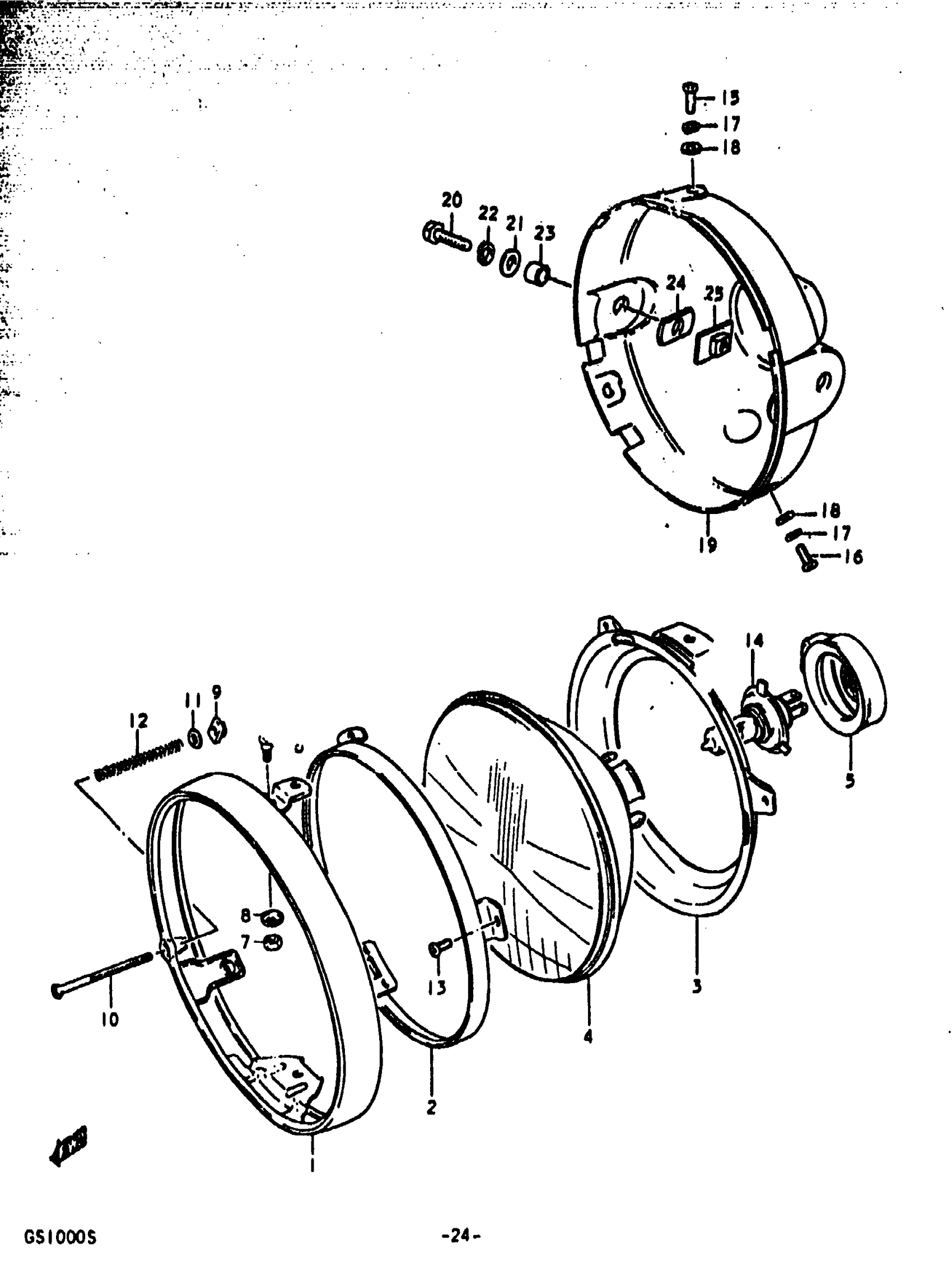

Suzuki GS1000S (1979) HEADLAMP Diagram

#

Description
Price

0

HEADLAMP ASSY | INC. REF. NO. 1~13.; Includes Item(s) 1 - 13

35100-49010-999

Unavailable

1

RIM

35111-45600

Unavailable

2

RING

35127-45600

$38.46

3

RING, MOUNTING

35130-45600

Unavailable

4

UNIT

35121-49010

Unavailable

5

COVER This part replaces 35173-49020.

35173-45200

Unavailable

6

SCREW,HEAD LAMP This part replaces 35136-25611.

35136-35400

$4.58

7

NUT This part replaces 35135-25611.

08316-1005A

$2.19

8

SPACER

35133-45600

Unavailable

9

NUT

35135-45600

$3.65

10

SCREW This part replaces 35151-27630.

35151-45230

Unavailable

11

WASHER

35157-27630

$3.25

12

SPRING

35154-45600

Unavailable

13

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

14

BULB | H4, 12V, 60/55W

09471-12060

$25.15

15

BOLT This part replaces 01104-05168.

01500-0516B

$2.15

16

SCREW This part replaces 02112-05168.

02112-05167

$1.97

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

WASHER

09169-06021

$2.36

19

HOUSING, HEADLAMP

51811-45002-291

Unavailable

20

BOLT

01204-08257

$1.96

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

SPACER | 8x15.2x7 This part replaces 09180-08030.

09180-08187

$2.65

24

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

25

PLATE

51860-45000

$4.43
