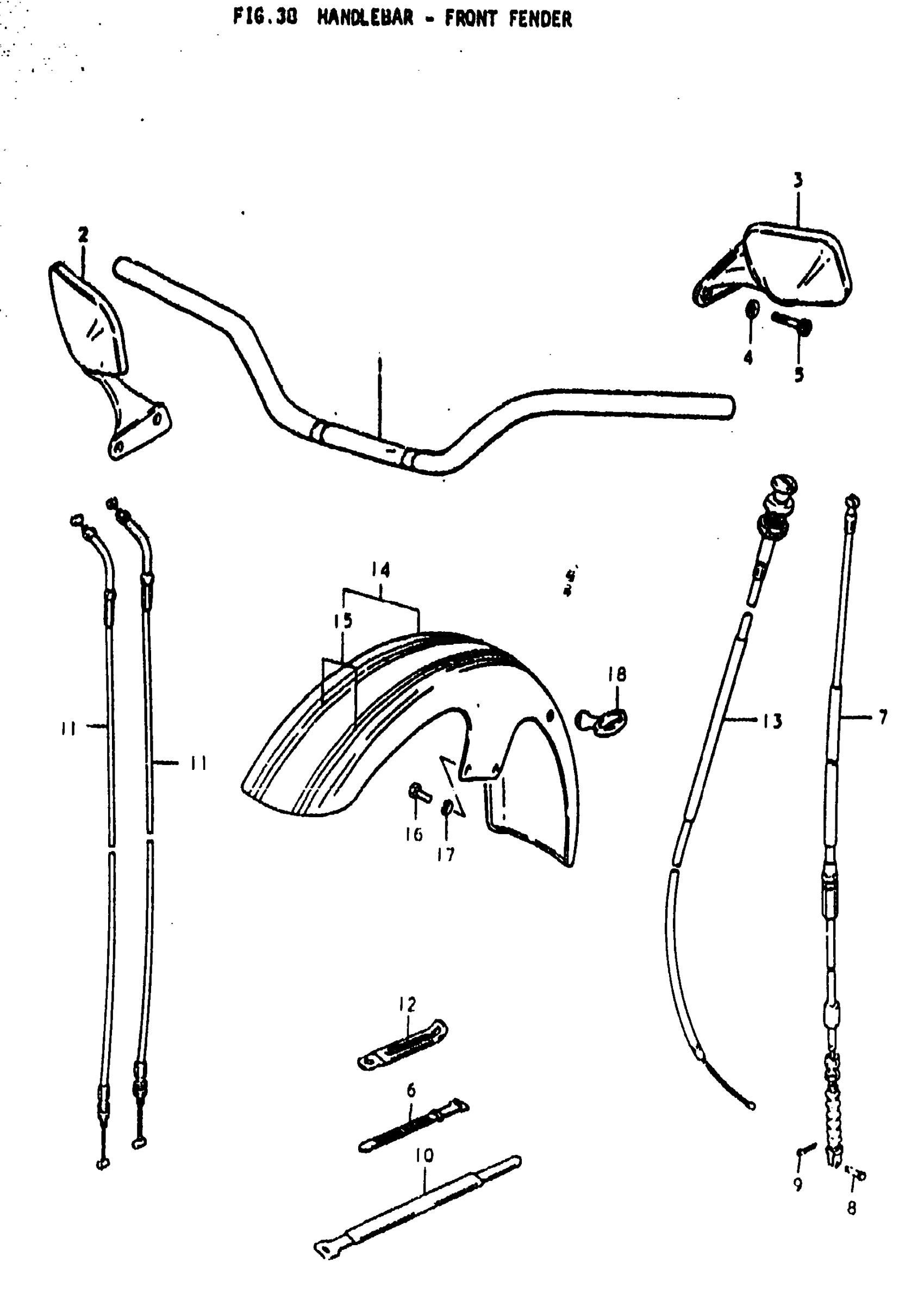

Suzuki GS1000S (1979) HANDLEBAR - FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56111-45600.

56111-45021

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 56500-49000.

56500-49001

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 - 5 This part replaces 56600-49000.

56600-49001

Unavailable

4

WASHER

56537-49000

Unavailable

5

.BOLT This part replaces 09106-06004.

07130-06207

$3.04

5

BOLT (L:45)

09106-06007

Unavailable

6

BAND (L:120)

09407-12402

$3.04

7

CABLE, CLUTCH

58200-49011

Unavailable

8

PIN

09200-06011

Unavailable

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

11

CABLE, THROTTLE

58300-45601

Unavailable

12

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

13

CABLE, STARTER

58400-45100

Unavailable

14

NO DESCRIPTION AVAILABLE | Includes Item(s) 15 This part replaces 53100-49810-68U.

53110-49030-13L

Unavailable

15

TAPE SET

68101-49880-62R

Unavailable

16

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
