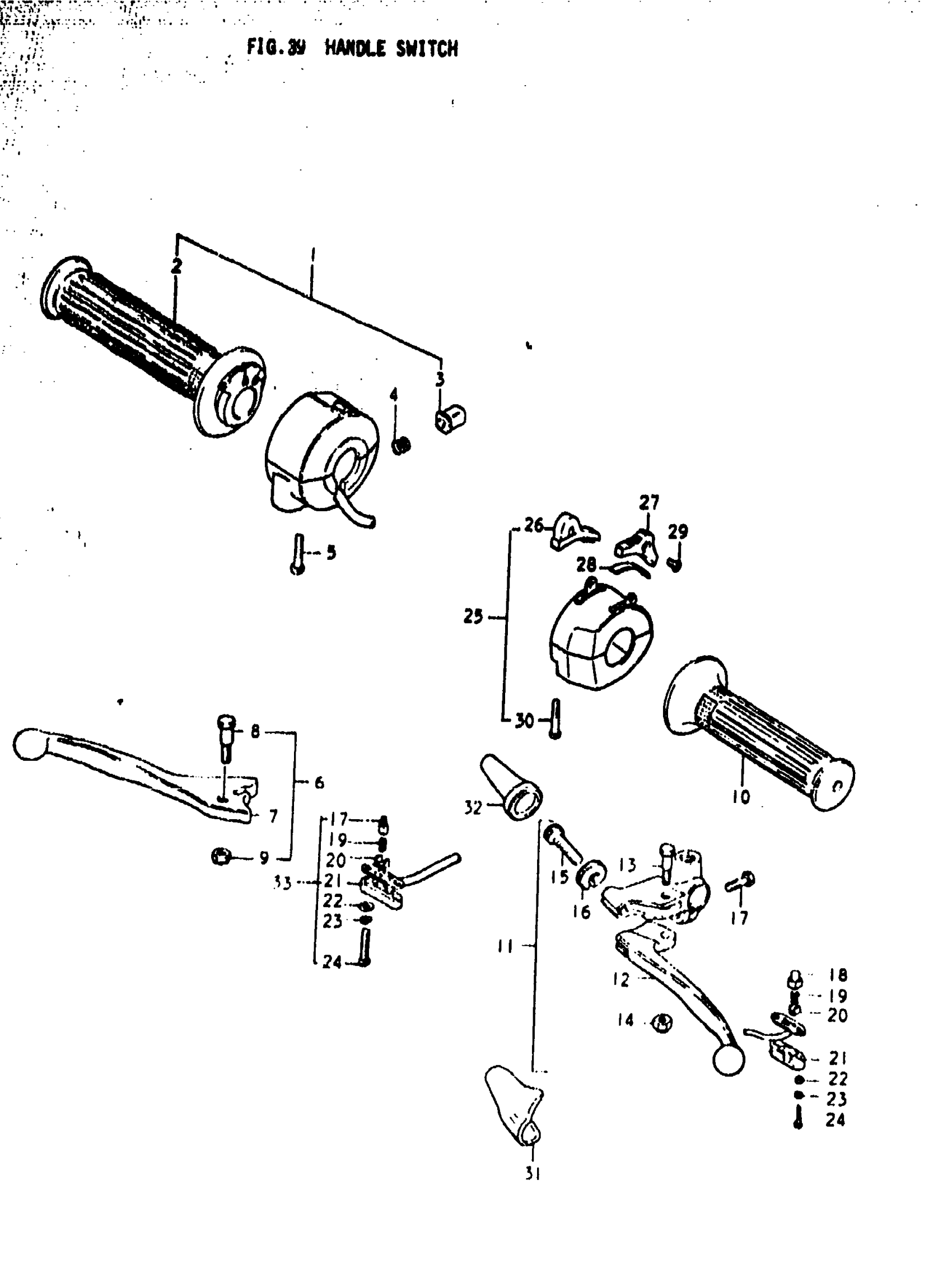

Suzuki GS1000S (1979) HANDLE SWITCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 57100-49000.

57100-49040

Unavailable

2

THROTTLE GRIP This part replaces 57110-45601.

57110-34601

Unavailable

3

BUTTON, STARTING

57370-01311

Unavailable

4

SPRING

57382-01311

Unavailable

5

SCREW This part replaces 02112-05258.

02112-05257

$1.49

6

LEVER, BRAKE | Includes Item(s) 7 - 9 This part replaces 57300-11320.

57420-11300

Unavailable

7

LEVER, BRAKE This part replaces 57420-11320.

57420-11300

Unavailable

8

BOLT This part replaces 57431-18620.

57431-18621

$8.28

9

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

10

GRIP, LH This part replaces 57211-45010.

57211-49510

Unavailable

11

LEVER ASSY, CLUTCH | Includes Item(s) 12 - 24

57500-44000

Unavailable

12

LEVER, CLUTCH

57620-44000

$29.65

13

BOLT This part replaces 57431-11010.

57431-11013

$6.31

14

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

15

ADJUSTER, CABLE

57441-11010

$5.62

16

NUT

57442-11010

$2.79

17

BOLT This part replaces 01107-06208.

01500-06207

$2.28

18

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

19

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

20

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

21

COVER

57481-33010

$5.84

22

WASHER This part replaces 08322-21038.

08322-01037

$1.93

23

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

24

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

25

SWITCH ASSY, HANDLE LH | Includes Item(s) 26 - 30

37400-49011

Unavailable

26

KNOB, STOPPER

57718-36630

Unavailable

27

KNOB, DIMMER SWITCH

57713-34012

Unavailable

28

SPRING

57715-34012

Unavailable

29

SCREW This part replaces 02132-03068.

02122-03067

$1.80

30

SCREW,5X22 This part replaces 09125-05105.

09125-05105-XC0

$4.10

31

COVER, CLUTCH LEVER

57661-31000

$7.25

32

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

33

SWITCH ASSY, ST This part replaces 57460-49100.

57460-45500

$35.23
