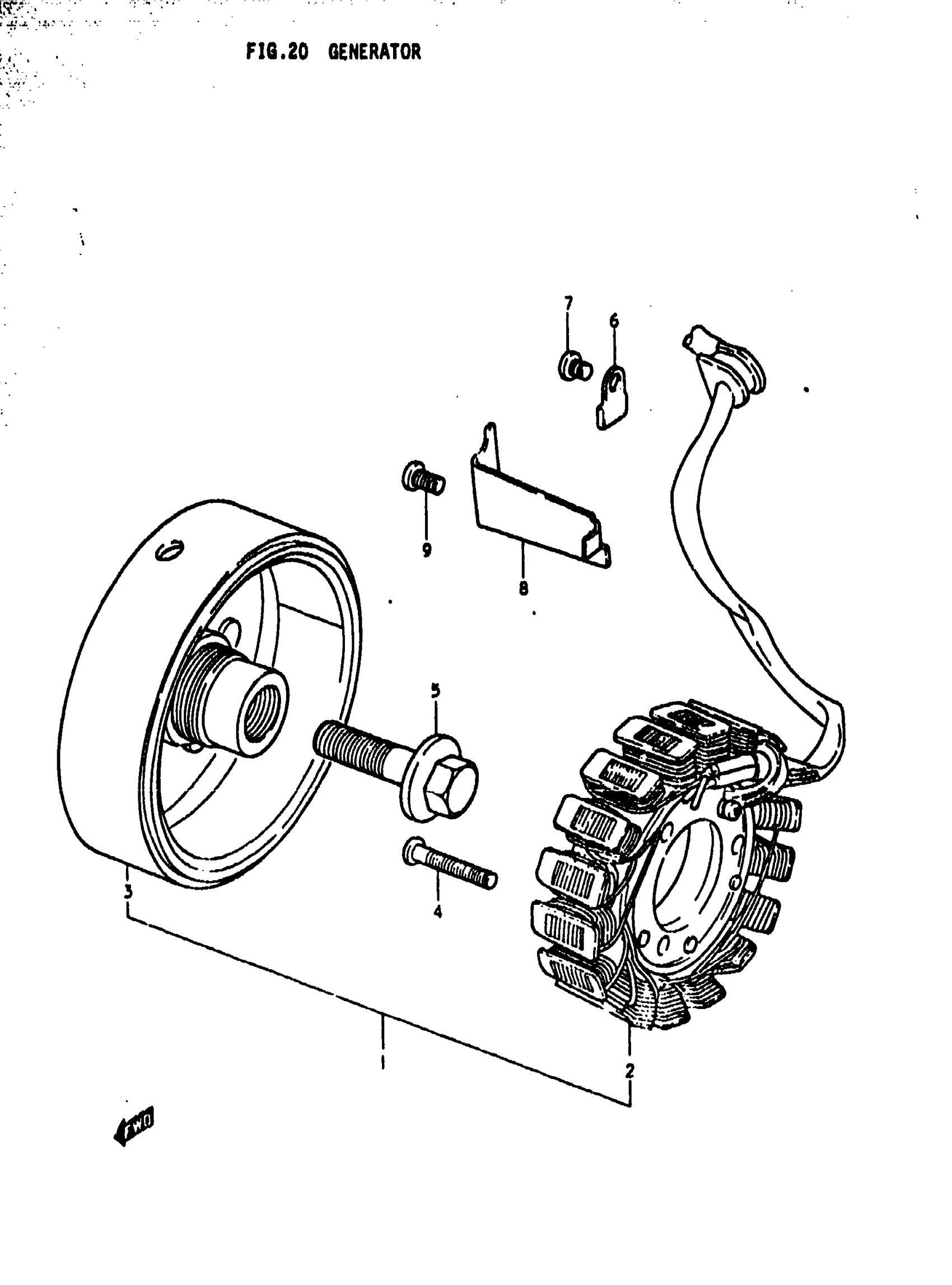

Suzuki GS1000S (1979) GENERATOR Diagram

#

Description
Price

1

STATOR | ND*; Includes Item(s) 2 - 3 This part replaces 31400-49010.

31401-49010

Unavailable

2

STATOR

31401-49010

Unavailable

3

ROTOR

31402-49010

Unavailable

4

SCREW

02112-06307

$1.97

5

BOLT This part replaces 31791-49000.

09103-12003

Unavailable

6

CLAMP

31497-45000

$1.92

7

SCREW This part replaces 02112-05068.

09125-05122

$2.06

8

CLAMP

31498-45000

$2.15

9

SCREW This part replaces 02112-06108.

02112-06107

$1.49
