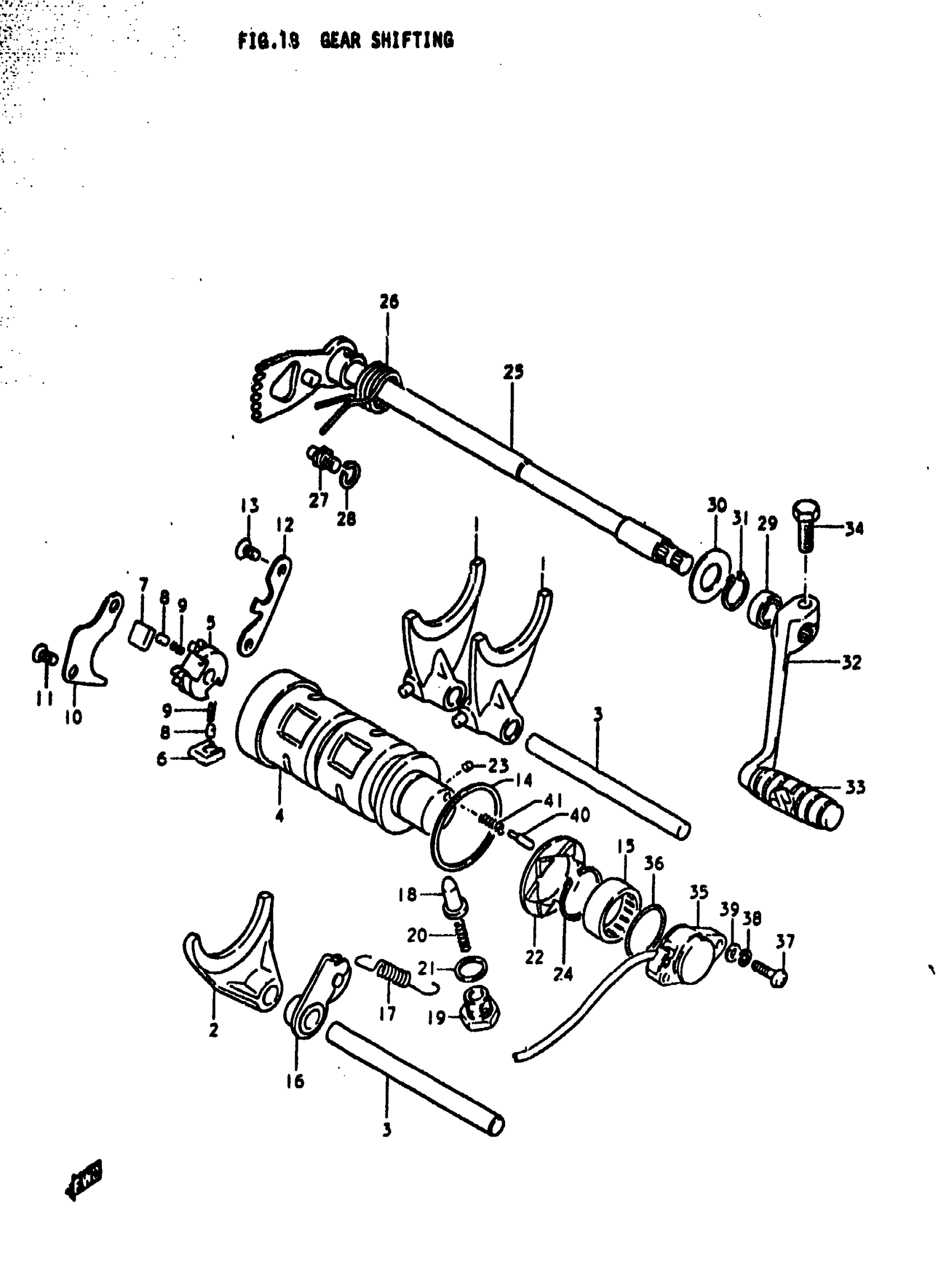

Suzuki GS1000S (1979) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, DRIVEN GEAR SHIFTING | 4TH & 5TH

25211-34000

Unavailable

2

NO DESCRIPTION AVAILABLE | 3RD This part replaces 25231-34000.

25231-34X00

Unavailable

3

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

$23.07

4

CAM, GEAR SHIFTING

25310-49000

Unavailable

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

8

PIN

09261-05003

$1.54

9

SPRING

09440-04003

$1.54

10

LIFTER, PAWL

25331-11001

$6.38

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

GUIDE, CAM

25341-18000

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

WASHER | 40x45x1

09160-40001

Unavailable

15

BEARING

09263-25018

$21.39

16

STOPPER, CAM

25350-34000

$15.42

17

SPRING

09443-08012

Unavailable

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

19

HOLDER, STOPPER

25354-30000

$9.17

20

SPRING

09440-06018

Unavailable

21

GASKET

09168-14004

$1.83

22

PLATE, STOPPER

25381-45000

Unavailable

23

PIN This part replaces 06211-04063.

04221-04069

$2.12

24

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-11258.

08331-31256

$1.49

25

NO DESCRIPTION AVAILABLE This part replaces 25510-49000.

25510-49001

Unavailable

26

SPRING This part replaces 09444-26012.

09444-26013

$3.10

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

28

.LOCK WASHER This part replaces 09162-08005.

08321-01087

$2.13

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

30

WASHER (12.5X26X1.6) | 12.5x27x1.6 This part replaces 09160-12020.

09160-12089

$1.97

31

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78
