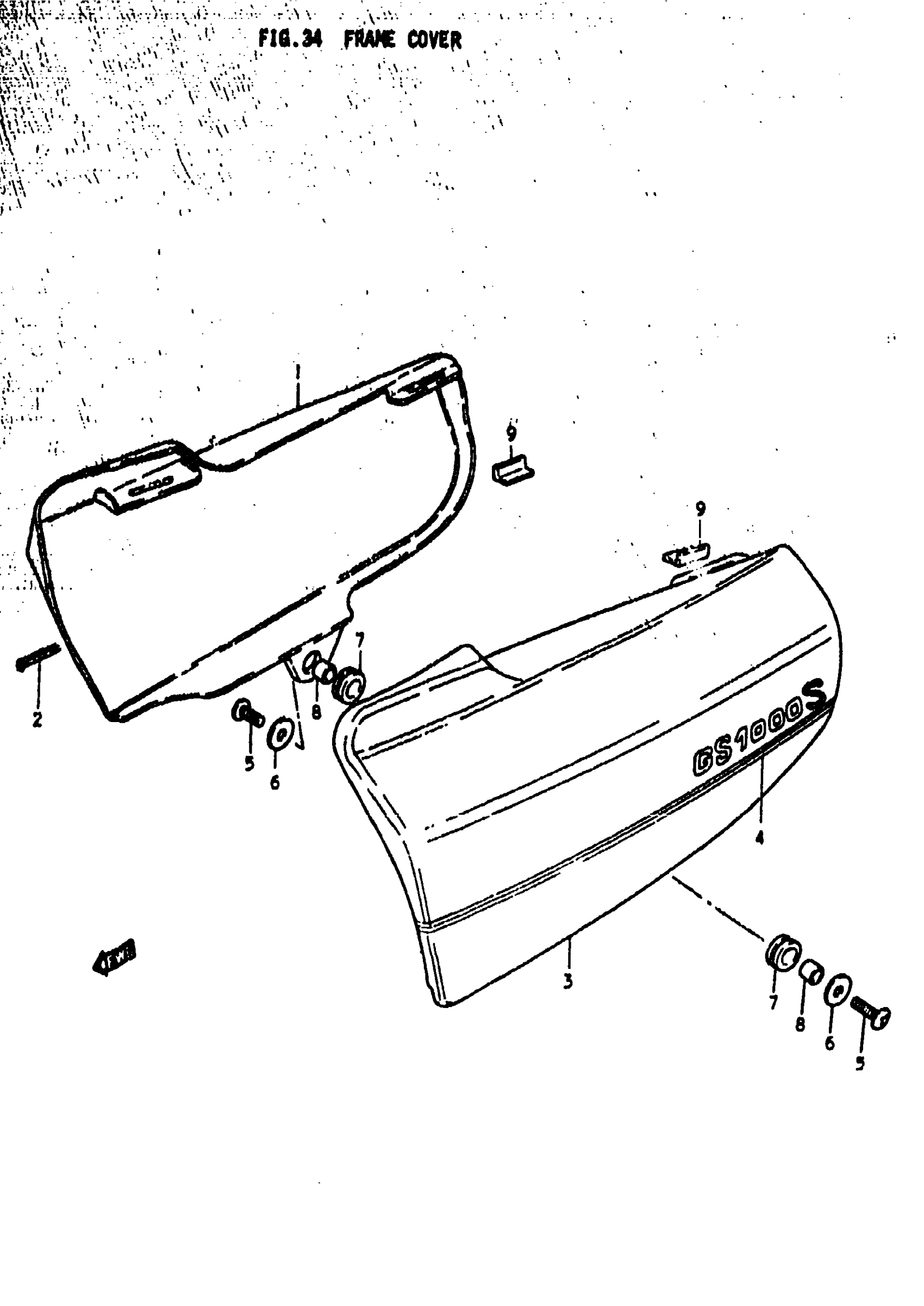

Suzuki GS1000S (1979) FRAME COVER Diagram

#

Description

Price

1

COVER,FRAME,RH | Includes Item(s) 2 This part replaces 47110-49010-68U.

47111-49010

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 68136-49010-62R.

68136-49Z00-62R

Unavailable

3

COVER,FRAME,LH | Includes Item(s) 4 This part replaces 47210-49010-68U.

47211-49010

Unavailable

4

TAPE, LH

68146-49010-62R

Unavailable

5

SCREW This part replaces 09125-06015.

02112-0620A

$1.49

6

WASHER (6.5X18X1.6) | 6.5x18x1.6 This part replaces 09160-06039.

09160-06109

$1.49

7

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

8

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

9

CUSHION

47117-45000

$2.14
