Partiron

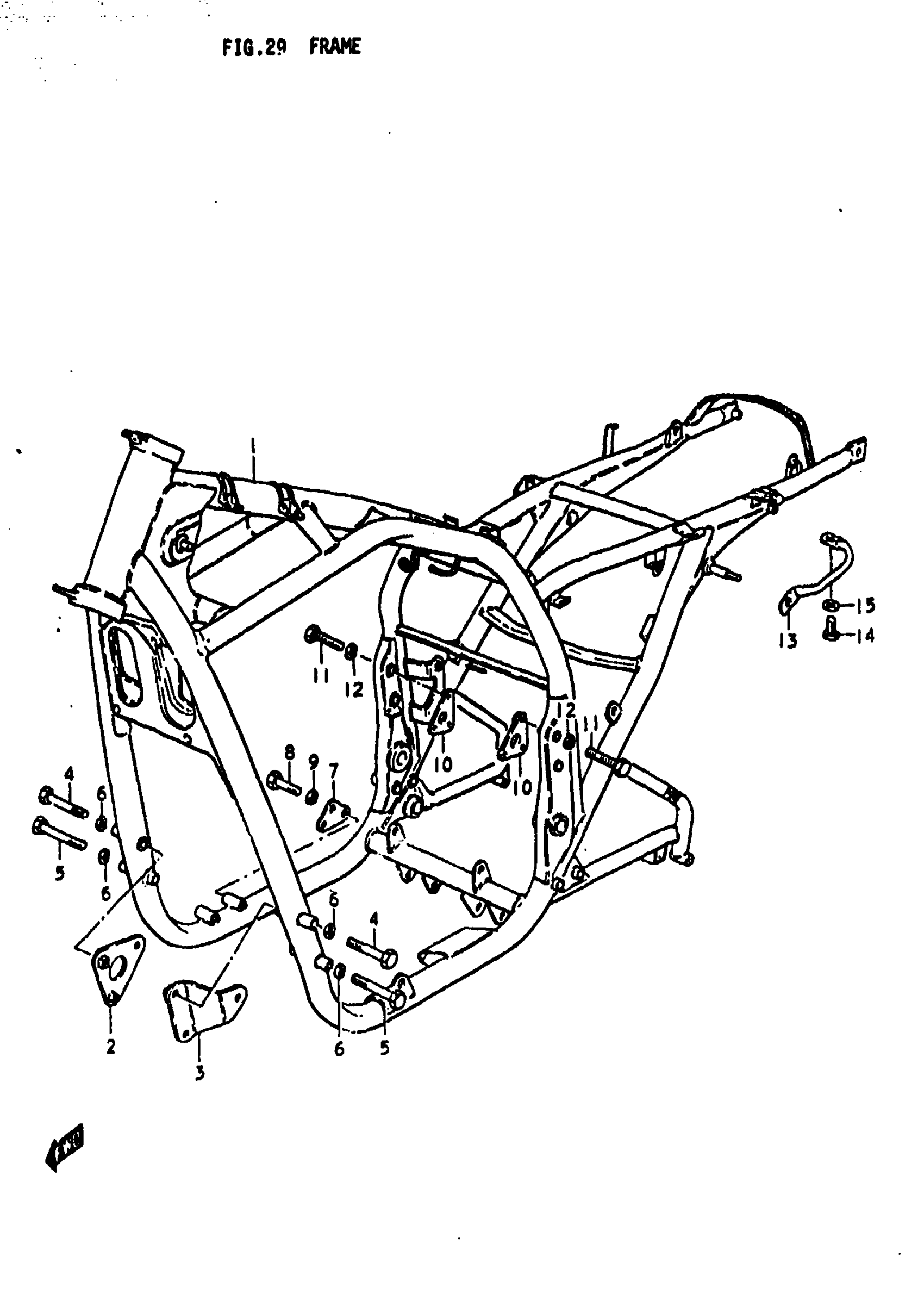

Suzuki GS1000S (1979) FRAME Diagram

#

Description
Price

1

FRAME

41100-49000-019

Unavailable

2

PLATE, MOUNTING NO.1 RH

41910-49000-019

Unavailable

3

PLATE, MOUNTING NO.1 LH

41990-49000-019

Unavailable

4

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

5

BOLT This part replaces 01107-08708.

01500-0870B

$3.49

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

PLATE, NO.2 (SILVER) This part replaces 41921-49000-019.

41921-49000-13L

Unavailable

8

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

PLATE, NO.3 (SILVER) This part replaces 41940-49000-019.

41940-49000-13L

Unavailable

11

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

GRIP, FRAME HANDLE This part replaces 41610-49000.

41610-34200

Unavailable

14

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

15

WASHER This part replaces 08322-21088.

08322-01087

$2.13
