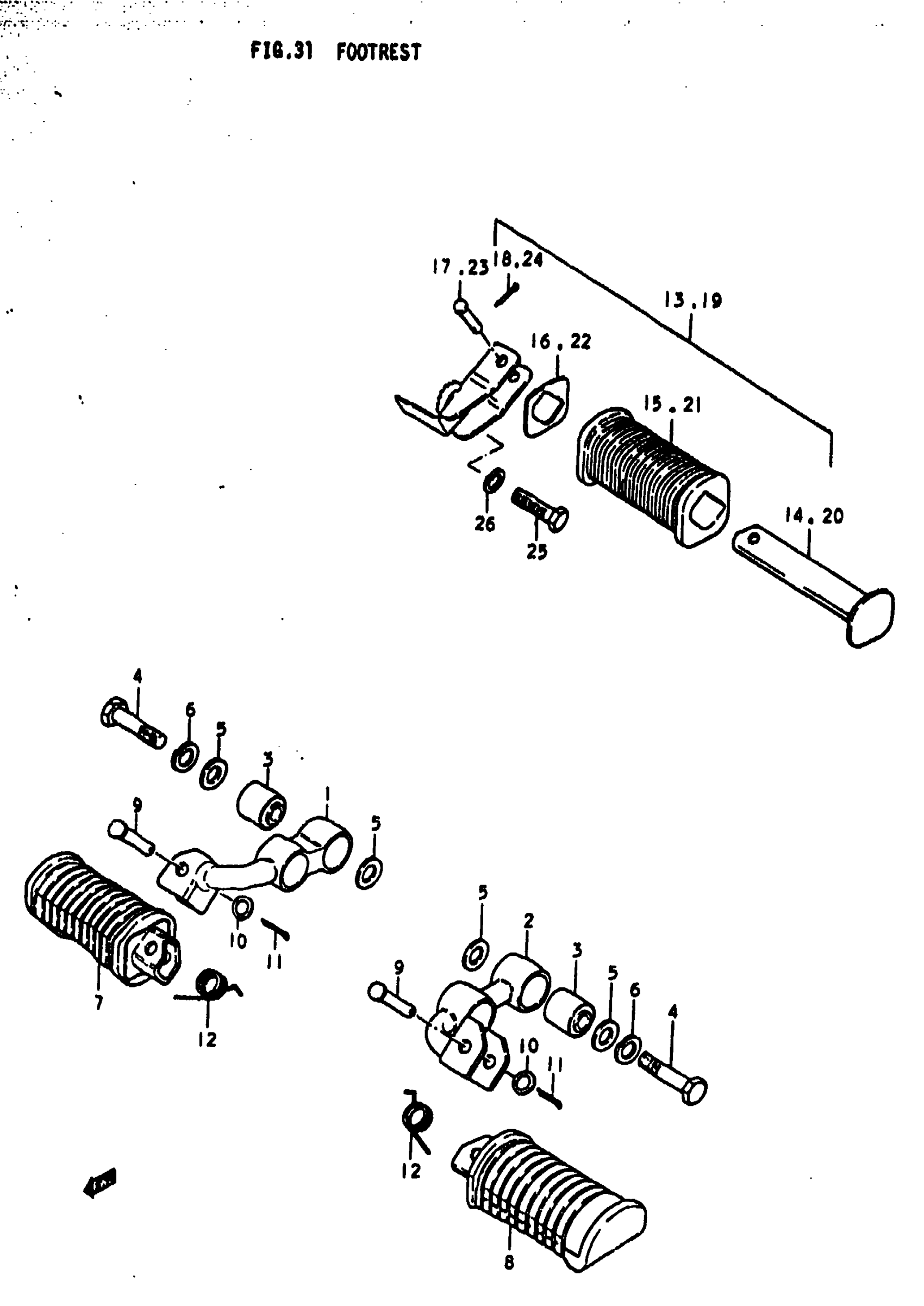

Suzuki GS1000S (1979) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-49010

Unavailable

2

BAR, FRONT FOOTREST LH

43520-49010

Unavailable

3

BUSHING

09319-10008

$7.40

4

BOLT (10X38) This part replaces 09104-10007.

09104-10029

$3.55

5

WASHER This part replaces 09160-10013.

09160-10123

$2.12

6

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

7

RUBBER,PILLION This part replaces 43550-49000.

43550-37310

$25.47

8

FOOTREST LH This part replaces 43560-49000.

43560-37310

$32.98

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

SPRING

09448-14012

$3.04

13

FOOTREST, PILLION RH | Includes Item(s) 14 - 18 This part replaces 43600-49010.

43600-49011

Unavailable

14

BAR, PILLION RH This part replaces 43610-45000.

43610-45001

Unavailable

15

RUBBER This part replaces 43612-45000.

43612-45001

Unavailable

16

WASHER This part replaces 43631-45000.

43631-45001

Unavailable

17

PIN

09200-06010

$1.72

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

19

FOOTREST, PILLION LH | Includes Item(s) 20 - 24 This part replaces 43700-49010.

43700-49011

Unavailable

20

BAR, PILLION LH This part replaces 43620-45000.

43620-45001

Unavailable

21

RUBBER This part replaces 43622-45000.

43612-45001

Unavailable

22

WASHER This part replaces 43631-45000.

43631-45001

Unavailable

23

PIN

09200-06010

$1.72

24

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

25

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
