1979 Suzuki GS1000S Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1979 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

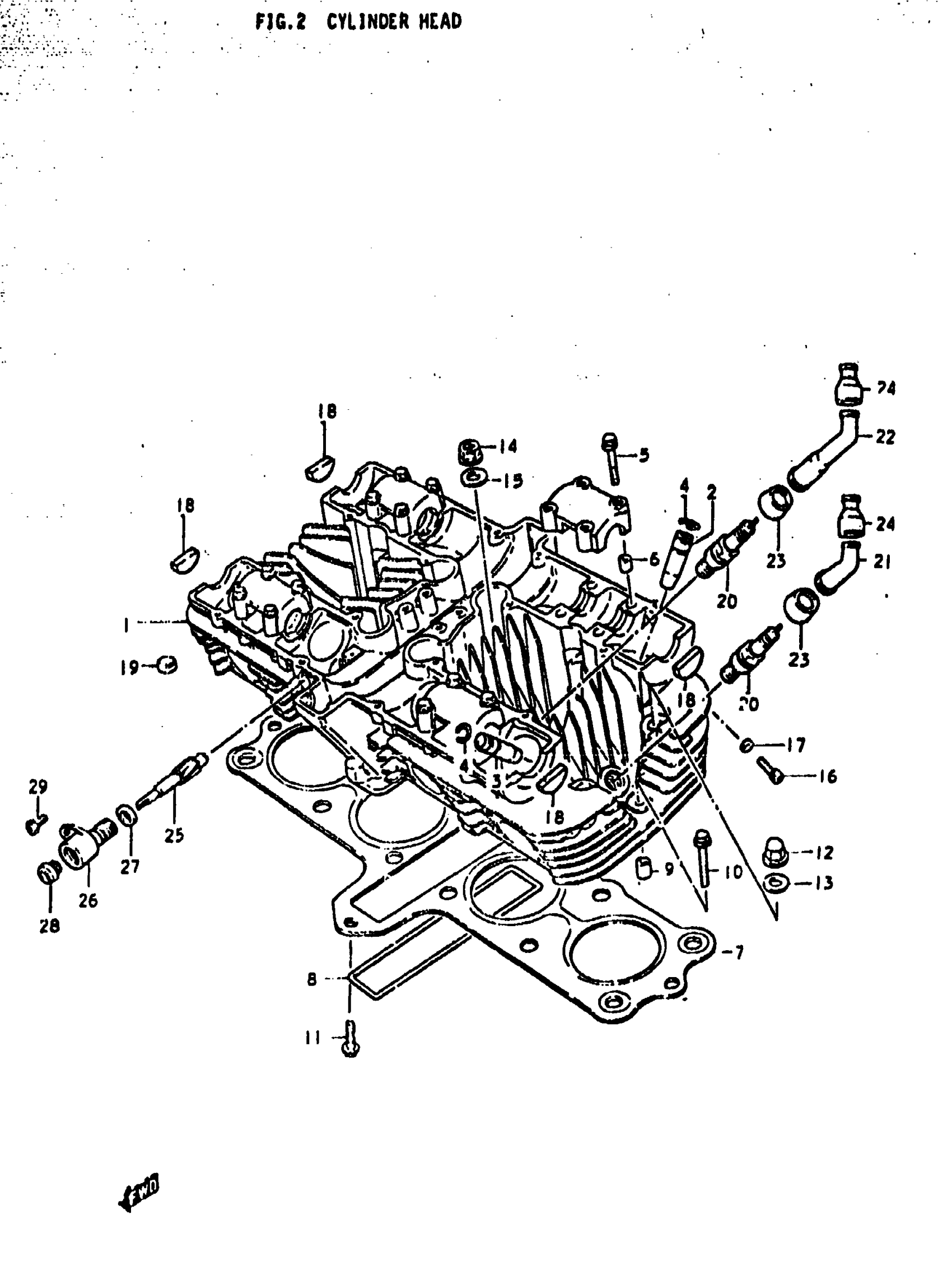

1979 Suzuki GS1000S Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6

11100-49820

1
Out of stock

2

GUIDE, INTAKE VALVE This part replaces 11115-45722.

11115-45740

4
Out of stock

3

GUIDE, EXHAUST VALVE This part replaces 11116-45722.

11116-45740

4
Out of stock

4

RING, VALVE GUIDE

09381-10003

8
Out of stock

5

BOLT (6X39)

09103-06026

16
Out of stock

6

PIN

09206-08001

8
Out of stock

7

GASKET This part replaces 11141-49002.

11141-49410

1
Out of stock

8

O RING

09280-99003

1
Out of stock

9

PIN

04211-11189

2
Out of stock

10

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

2
Out of stock

11

BOLT This part replaces 01517-06308.

01550-06307

1
Out of stock

12

NUT

09159-10026

4
Out of stock

13

GASKET

09168-10017

4
Out of stock

14

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

8
Out of stock

15

WASHER | 10.5x22x2.3

09160-10039

8
Out of stock

16

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

4
Out of stock

17

GASKET

09168-05010

4
Out of stock

18

PLUG, CYLINDER HEAD

09241-23002

4
Out of stock

19

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

18
Out of stock

20

SPARK PLUG | NGK, B-BES

09482-00091

4
Out of stock

20

SPARK PLUG W24E | ND, W24ES This part replaces 09482-00092.

09482-00247-111

4
Out of stock

21

CAP, SPARK PLUG (S)

33510-43010

2
Out of stock

22

CAP, SPARK PLUG (L)

33510-45010

2
Out of stock

23

SEAL, PLUG

33541-69010

4
Out of stock

24

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

4
Out of stock

25

GEAR, TACHO. DRIVEN (NT:10) | NT:10 This part replaces 26431-45001.

26431-45002

1
Out of stock

26

SLEEVE

26441-49000

1
Out of stock

27

SEAL BAND

26451-45000

1
Out of stock

28

OIL SEAL This part replaces 09289-05007.

09289-05008

1
Out of stock

29

SCREW

09128-05101

1
Out of stock
