1979 Suzuki GS1000S CAM Chain Diagram

← All diagrams

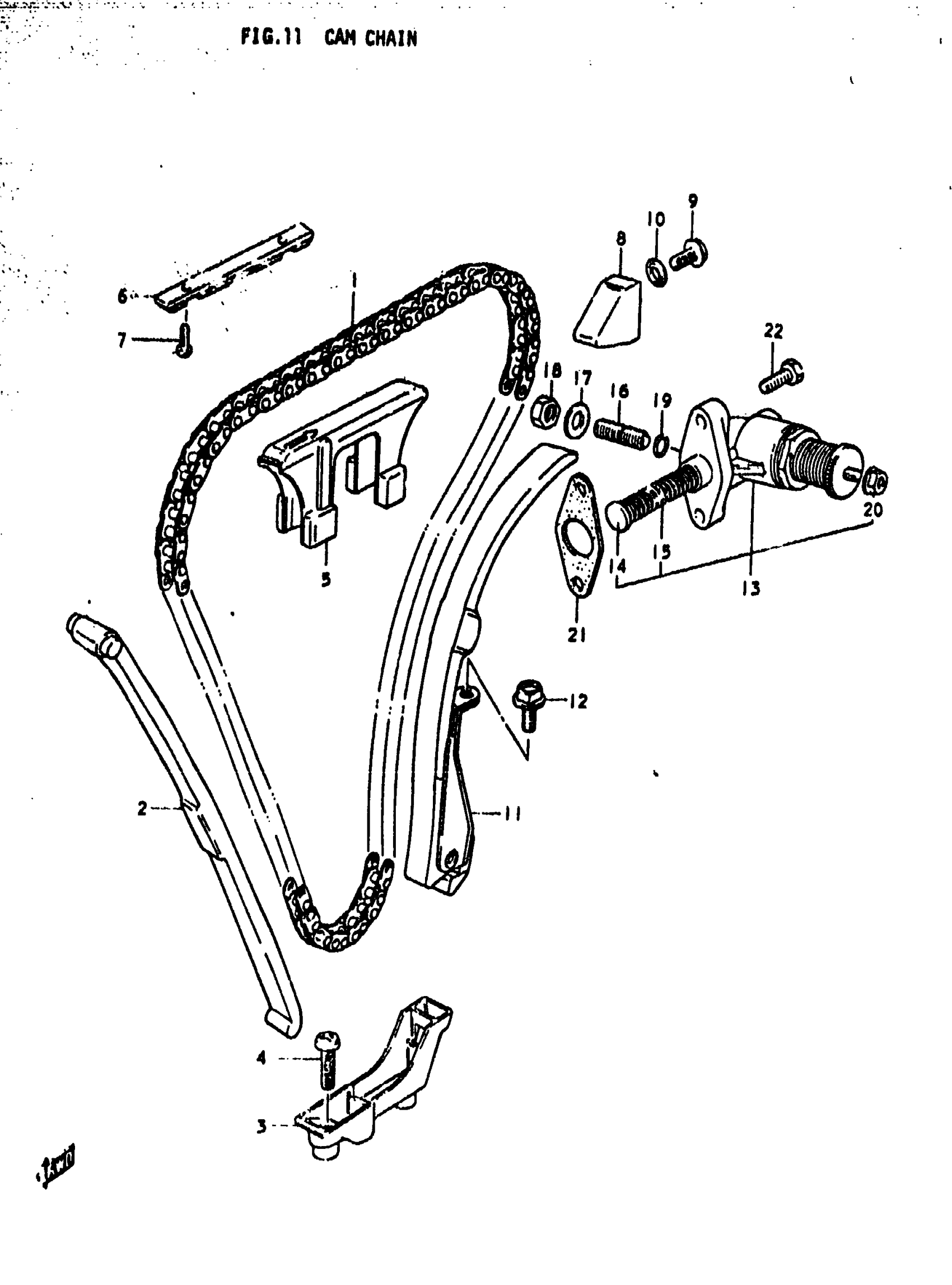

Find the part on the CAM Chain diagram for your 1979 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS1000S CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE (120L) | 120% This part replaces 12760-49010.

12760-45040

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-45040.

12771-45053

1
Out of stock

3

HOLDER, GUIDE NO.1

12776-49000

1
Out of stock

4

SCREW This part replaces 02112-06208.

02112-06207

2
Out of stock

5

GUIDE, CAM CHAIN NO.2

12781-47042

1
Out of stock

6

GUIDE, CAM CHAIN NO.3

12782-47040

1
Out of stock

7

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

8

GUIDE, CAM CHAIN NO.4

12791-45040

1
Out of stock

9

BOLT This part replaces 01517-06128.

01550-06127

2
Out of stock

10

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

2
Out of stock

11

TESIONER, CAM CHAIN

12810-49051

1
Out of stock

12

BOLT M8X16 This part replaces 01517-08168.

01550-08167

1
Out of stock

13

ADJUSTER ASSY,T | Includes Item(s) 14 - 20 This part replaces 12830-47001.

12830-0930V

1
Out of stock

14

PUSH ROD

12833-47001

1
Out of stock

15

SPRING

09440-12017

1
Out of stock

16

SCREW

12838-45001

1
Out of stock

17

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

18

1

$1.93

In stock

19

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

1
Out of stock

20

NUT This part replaces 09159-06017.

08319-31067

1
Out of stock

21

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

1
Out of stock

22

BOLT, STARTING MOTOR This part replaces 09128-06012.

09103-06212

2
Out of stock
