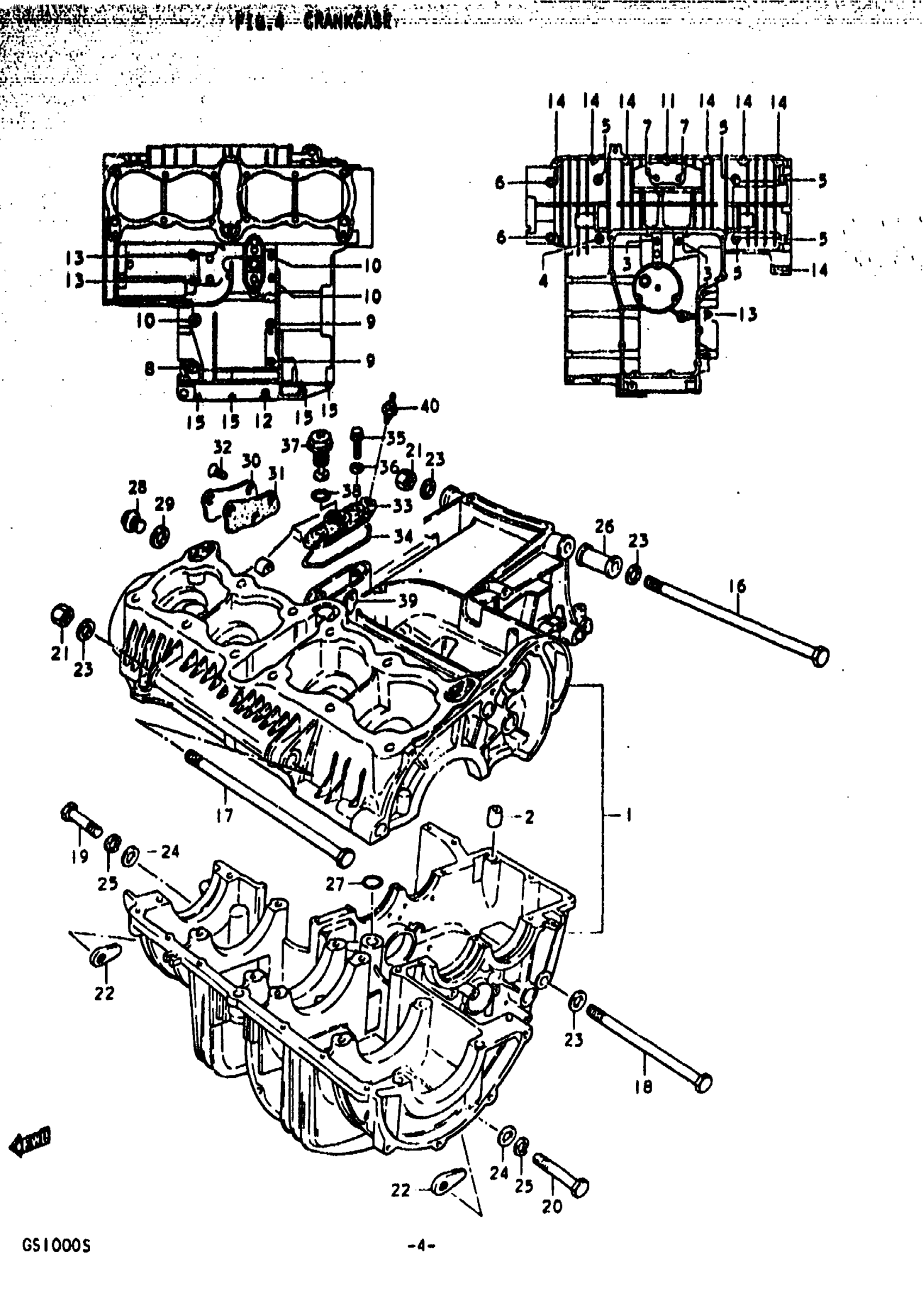

Suzuki GS1000S (1979) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 15

11300-49810

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X125) | 8x125 This part replaces 09103-08020.

09103-08106

Unavailable

4

BOLT (8X100) | 8x100 This part replaces 09103-08009.

09103-08070

$5.57

5

BOLT This part replaces 01517-08908.

01550-08907

$5.18

6

BOLT This part replaces 01517-08658.

01550-08657

$4.68

7

BOLT This part replaces 01517-08608.

01550-08607

$3.76

8

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

9

BOLT This part replaces 01517-06858.

01550-06857

$3.68

10

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$3.68

11

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.40

12

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

13

BOLT This part replaces 01517-06408.

01550-06407

$2.69

14

BOLT This part replaces 01517-06358.

01550-06357

$2.77

15

BOLT This part replaces 01517-06308.

01550-06307

$2.69

16

BOLT, ENGINE MOUNTING | 10x265

09100-10110

Unavailable

17

ENGINE MOUNT BO | 10x250 This part replaces 09101-10010.

09101-10010-XC0

Unavailable

18

BOLT, ENGINE MOUNTING | 10x165

09100-10078

$12.70

19

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

20

BOLT This part replaces 01107-10508.

01500-1050A

$3.78

21

NUT

09159-10011

$3.23

22

NUT

09159-10020

$5.18

23

WASHER This part replaces 08322-11108.

08322-01107

$2.15

24

WASHER | 10x15x1.7

09160-10005

$1.87

25

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

26

SPACER (L:65) This part replaces 11610-49000.

11610-49300

$18.02
