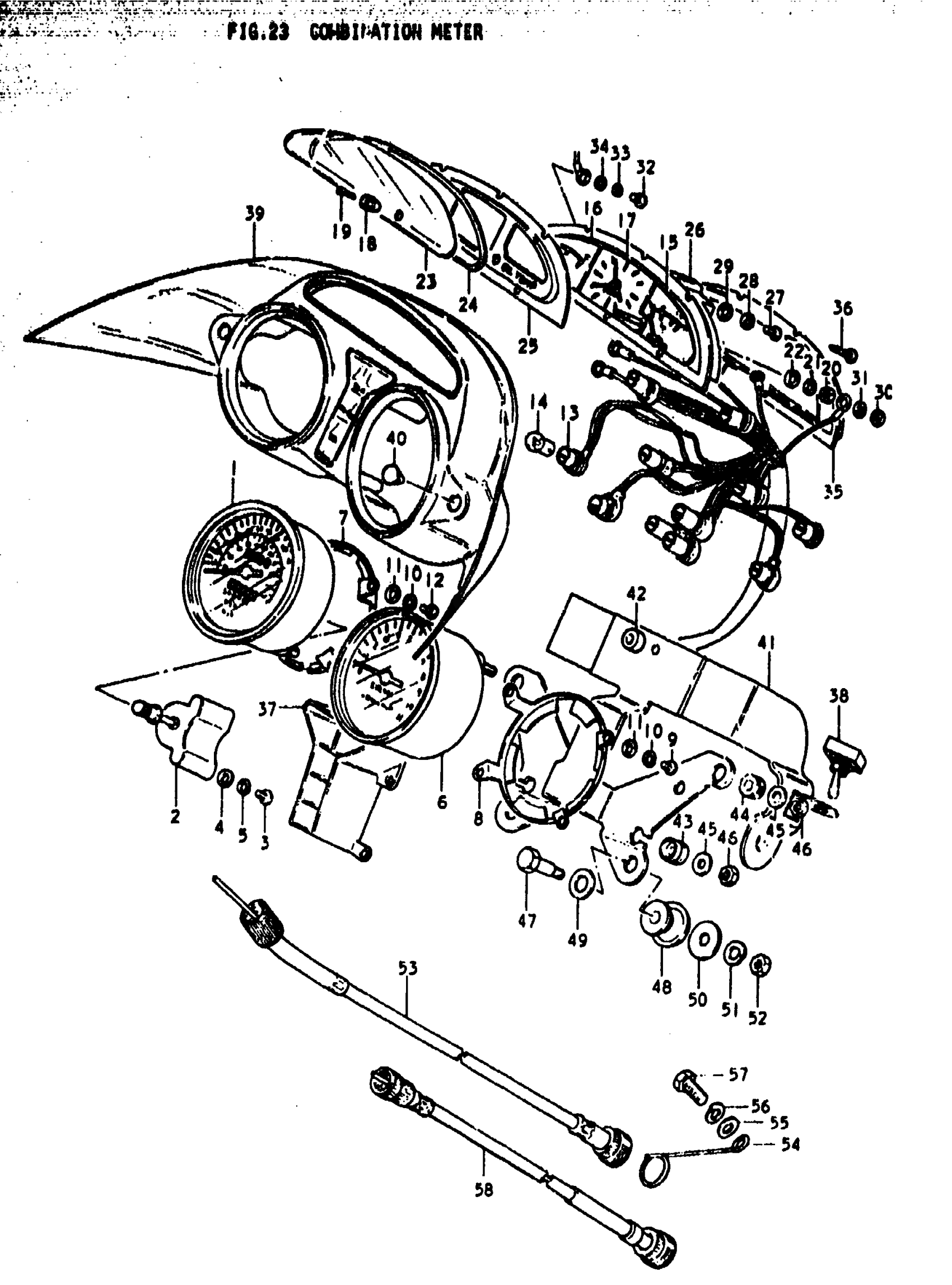

Suzuki GS1000S (1979) COMBINATION METER Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 31 This part replaces 34100-49081.

34100-49082

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 34101-49080.

34101-49081

Unavailable

2

HOLDER, RESET BUTTON

34720-49020

Unavailable

3

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

4

WASHER This part replaces 08322-21048.

08322-01047

$1.86

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

6

TACHOMETER

34210-49080

Unavailable

7

HOLDER, SPEEDOMETER

34195-49020

Unavailable

8

HOLDER, TACHOMETER

34295-49020

Unavailable

9

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

10

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

11

WASHER This part replaces 08322-21038.

08322-01037

$1.93

12

SCREW | 4 THREAD, L:14

34183-49020

Unavailable

13

SOCKET ASSY

34173-49020

Unavailable

14

BULB | 12V, 3.4W

09471-12001

$1.65

15

TEMPERATURE METER, OLL

34730-49080

Unavailable

16

FUEL METER

34320-49020

Unavailable

17

CLOCK

34600-49020

Unavailable

18

KNOB

34661-49020

Unavailable

19

SCREW

34662-49020

Unavailable

20

NUT This part replaces 08310-11048.

08310-00047

$2.23

21

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

22

WASHER This part replaces 08322-21048.

08322-01047

$1.86

23

GLASS

34312-49020

Unavailable

24

GASKET

34314-49020

Unavailable

25

COVER, UPPER

34313-49020

Unavailable

26

CASE, LOWER

34310-49020

Unavailable

27

SCREW 4X40 This part replaces 02112-04048.

02112-04047

$1.49

28

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

29

WASHER This part replaces 08322-21048.

08322-01047

$1.86

30

NUT This part replaces 08310-11048.

08310-00047

$2.23

31

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84
