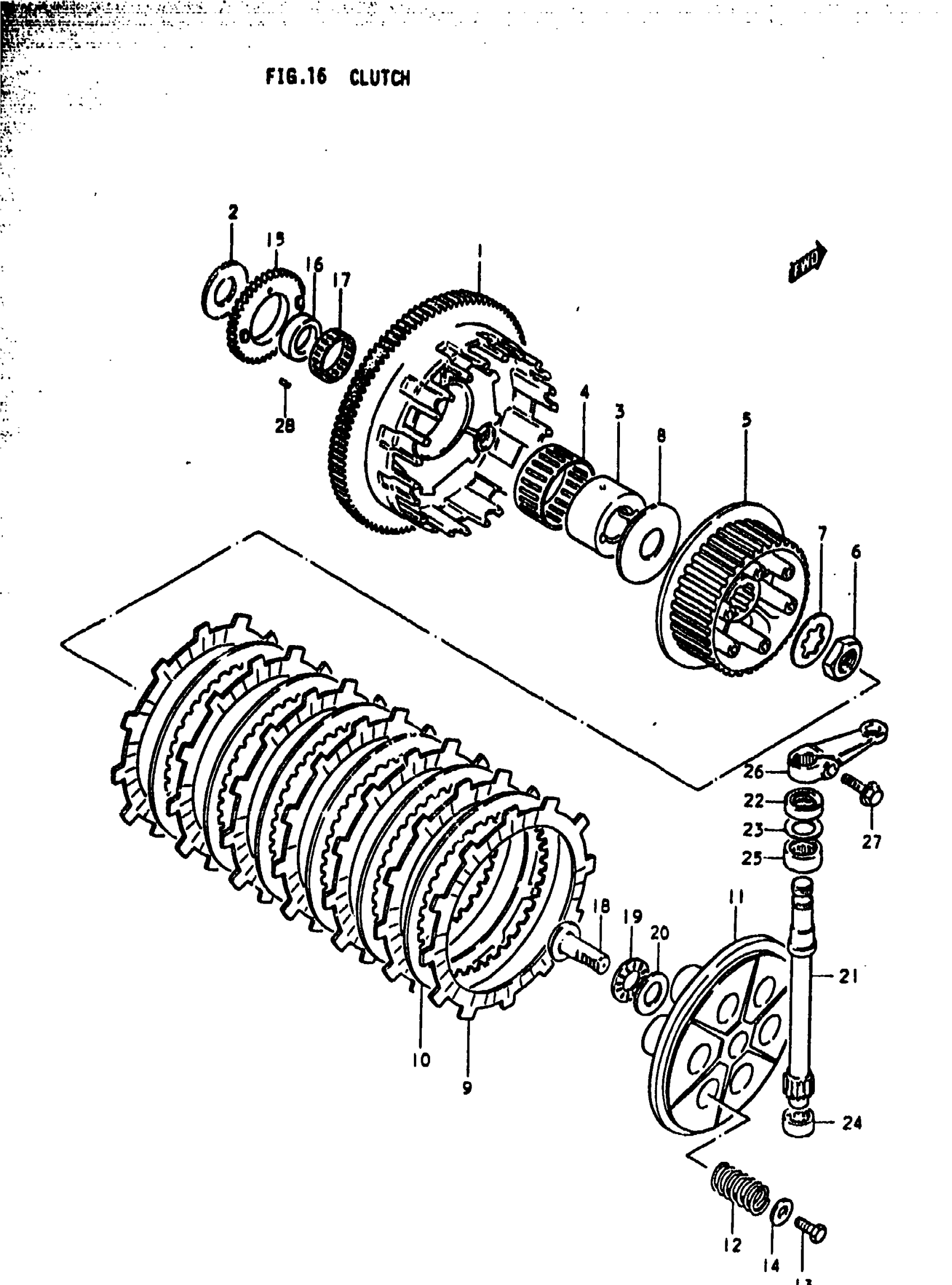

Suzuki GS1000S (1979) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-49002

Unavailable

2

WASHER | 25x50x2.5 This part replaces 09160-25023.

09160-25055

$8.62

3

SPACER This part replaces 21251-45001.

21251-49200

Unavailable

4

BEARING This part replaces 09263-51001.

09263-51002

$44.23

5

NO DESCRIPTION AVAILABLE This part replaces 21411-49001.

21410-49X00

Unavailable

6

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

$3.89

7

WASHER

09167-25007

Unavailable

8

WASHER | 25x66x3.5

09160-25022

Unavailable

9

PLATE CLUTCH DR This part replaces 21441-49001.

21441-49002

Unavailable

10

PLATE, DRIVEN,NO.1 This part replaces 21451-49000.

21451-44B00

$10.69

11

DISC, PRESSURE This part replaces 21462-49000.

21462-49201

Unavailable

12

SPRING

09440-19007

$2.52

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.6) | 15.5x24x2.3 This part replaces 09160-06020.

09160-06066

$1.89

15

GEAR, OIL PUMP DRIVE (NT:34) | NT:34 This part replaces 16321-49990.

16321-49000

Unavailable

16

SPACER

16325-45001

Unavailable

17

BEARING

09263-36002

Unavailable

18

RACK, CLUTCH RELEASE

23165-49000

Unavailable

19

THRUST BEARING

09263-15003

$8.29

20

WASHER, CLUTCH PUSH | 15x28x1 This part replaces 09160-15015.

09160-15045

$3.89

21

PINION, CLUTCH RELEASE

23261-49001

Unavailable

22

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

23

WASHER (14.5X22X1) | 14.2x22x1 This part replaces 09160-14003.

09160-14054

$2.07

24

BEARING NO.1

09263-12014

$12.36

25

BEARING NO.2

09263-15012

$15.48

26

ARM, RELEASE This part replaces 23271-49001.

23271-45400

Unavailable

27

BOLT This part replaces 01527-06207.

01550-06207

$2.30

28

CUSHION,PRIMARY This part replaces 21215-49000.

21215-49001

$2.81
