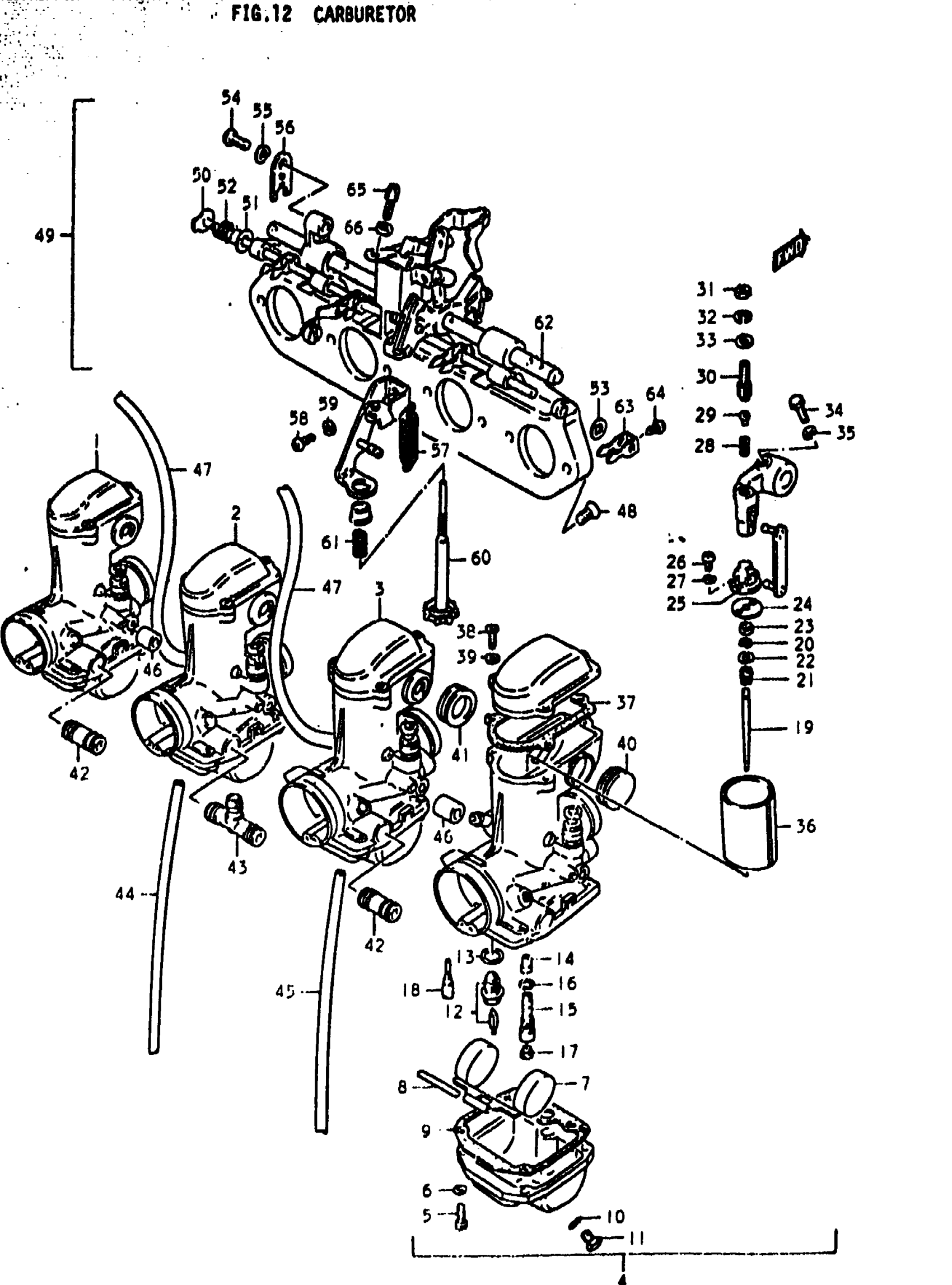

Suzuki GS1000S (1979) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 66

13200-49020

Unavailable

1

CARBURETOR ASSY, NO.1 | LH

13201-49020

Unavailable

2

CARBURETOR ASSY, NO.2 | CENTER LH

13202-49020

Unavailable

3

CARBURETOR ASSY, NO.3 | CENTER RH

13203-49020

Unavailable

4

CARBURETOR ASSY, NO.4 | RH

13204-49020

Unavailable

5

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

FLOAT

13252-43010

Unavailable

8

.PIN, FLOAT

13254-01010

$3.62

9

GASKET This part replaces 13251-43011.

13251-43010

Unavailable

10

.O RING This part replaces 13246-43010.

13246-43011

$4.34

11

SCREW

13247-45010

Unavailable

12

VALVE, NEEDLE This part replaces 13370-45010.

13370-18111

$52.32

13

GASKET

13392-58600

$1.82

14

JET, NEEDLE | 0-2

09494-00224

Unavailable

15

PIPE, BREADER

13385-45010

Unavailable

16

.O RING This part replaces 13246-43010.

13246-43011

$4.34

17

JET, MAIN | #95

09491-95005

$11.55

18

JET, PILOT | #15

09492-15005

$17.58

19

NEEDLE, JET | 5DL36-3

13383-45030

Unavailable

20

CLIP, NEEDLE

13394-10010

$5.45

21

SPRING

13388-47010

$6.91

22

PLATE

13382-47010

$3.56

23

RING

13387-47010

$7.22

24

PLATE

13581-47010

Unavailable

25

BRACKET

13398-49030

Unavailable

26

SCREW This part replaces 02111-03148.

02112-0316B

$2.35

27

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

28

SPRING

13543-45010

Unavailable

29

PIN

13544-43010

Unavailable

30

ADJUSTER

13548-45010

Unavailable

31

NUT This part replaces 08310-11058.

08310-00057

$1.84

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

33

WASHER This part replaces 08322-21058.

08322-01057

$2.13

34

BOLT This part replaces 01104-05168.

01500-0516B

$2.15

35

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

36

VALVE, THROTTLE | CA:1.5

13551-45030

Unavailable

37

GASKET

13266-43010

$8.20

38

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

39

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

40

CAP

13678-43010

Unavailable

41

SEAL

13556-45010

Unavailable

42

NIPPLE

13685-45030

Unavailable

43

NIPPLE

13685-45040

Unavailable

44

HOSE | L:525

13683-45070

$11.80

45

HOSE (3.5X6.5X6OO) | L:450 This part replaces 13683-32410.

13683-45070

$11.80

46

HOSE(6X10X600) | 6x10x16 This part replaces 13683-33110.

09352-60104-600

$8.99

47

HOSE(4.5X8.5X60 | 5x8x450 This part replaces 13683-45050.

09355-45001-600

$9.48

48

SCREW (6X14) This part replaces 02122-06148.

09126-06007

$2.03

49

CONTROL ASSY

13210-49020

Unavailable

50

SHAFT, STARTER

13410-49020

Unavailable

51

WASHER

13432-49020

Unavailable

52

SPRING

13437-49020

Unavailable

53

WASHER

13615-45010

$3.25

54

SCREW This part replaces 02112-05168.

02112-05167

$1.97

55

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

56

PLATE

13557-33110

Unavailable

57

SPRING, THROTTLE RETURN

13573-45010

Unavailable

58

SCREW This part replaces 02112-05168.

02112-05167

$1.97

59

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

60

ADJUSTER, THROTTLE STOP

13267-49000

Unavailable

61

SPRING

13268-33110

Unavailable

62

SHAFT, THROTTLE

13550-43010

Unavailable

63

LEVER, STARTER

13422-45030

Unavailable

64

SCREW

13605-31210

$7.37

65

ADJUSTER

13577-48110

$8.30

66

NUT

13661-16600

$4.64
