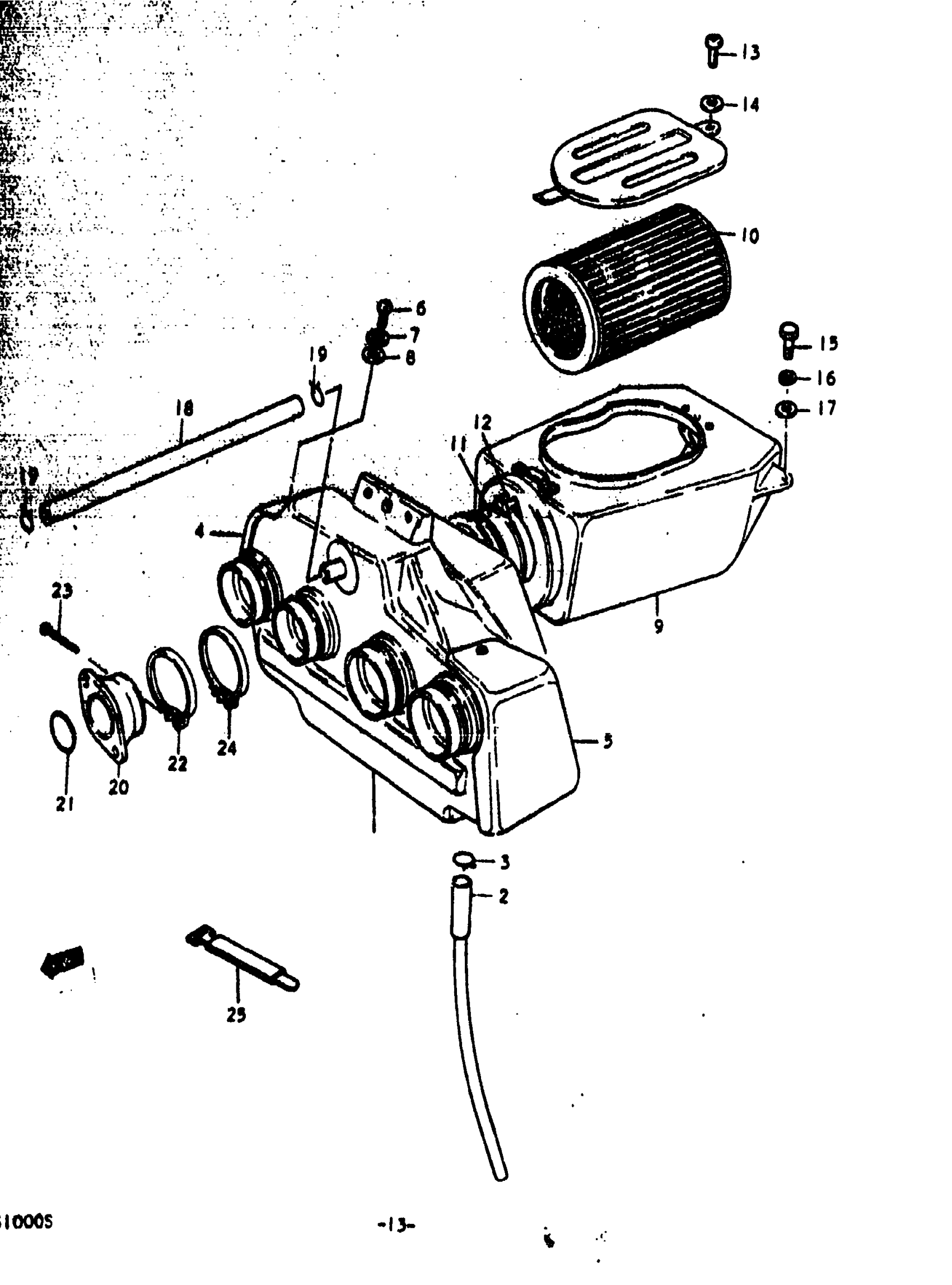

Suzuki GS1000S (1979) AIR CLEANER Diagram

#

Description
Price

1

CASE ASSY, FRONT | Includes Item(s) 2 - 8

13710-49010

Unavailable

2

TUBE,DRAIN This part replaces 13790-44010.

13870-11459

$15.51

3

CLIP This part replaces 13795-44010.

09401-14301

$2.35

4

COVER, RH

13775-49010

Unavailable

5

COVER, LH

13776-49010

Unavailable

6

SCREW This part replaces 02122-05108.

02122-05107

$1.49

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

WASHER This part replaces 08322-21058.

08322-01057

$2.13

9

CASE ASSY, REAR | Includes Item(s) 10 - 14

13701-49001

Unavailable

10

FILTER This part replaces 13780-49000.

13780-45500

Unavailable

11

HOSE

13795-49000

Unavailable

12

CLAMP This part replaces 13796-49000.

09402-70902

$5.64

13

SCREW This part replaces 02112-05128.

02112-05127

$1.97

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

HOSE,11X15X2000 | 11x15x230 This part replaces 09343-11001.

09352-11154-00B

$48.35

19

CLIP

09401-14301

$2.35

20

PIPE,INTAKE This part replaces 13110-45010.

13110-49001

Unavailable

21

O RING

09280-32006

$2.28

22

CLAMP This part replaces 09402-46306.

09402-46208

$4.64

23

SCREW This part replaces 02112-06168.

02112-06167

$1.49

24

CLAMP

09402-52306

$4.91

25

CLAMP, OVER FLOW HOSE | L:120

09407-12402

$3.04
