Partiron

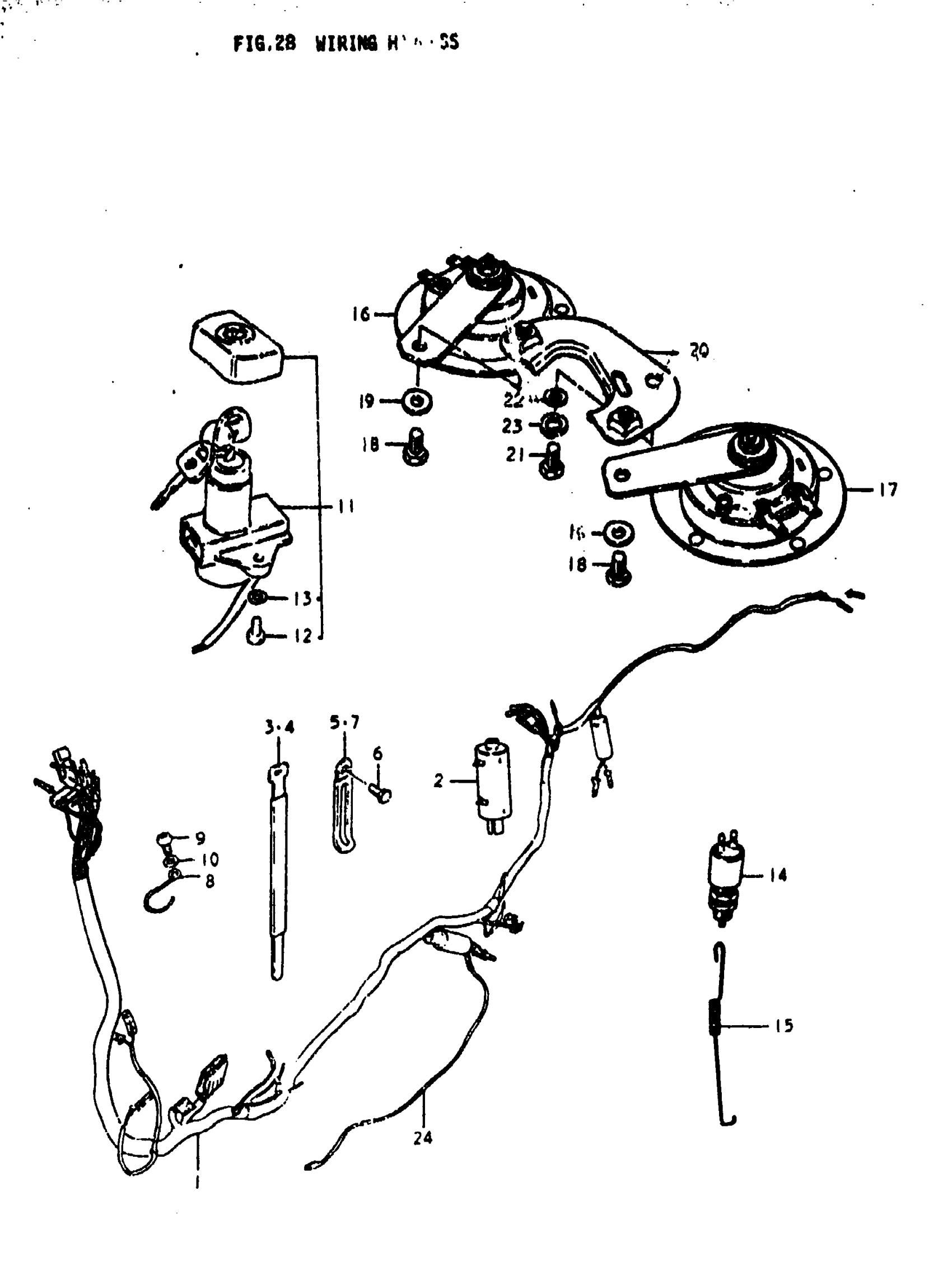

Suzuki GS1000L (1979) WIRING H@@@SS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 36610-49100.

36610-49101

Unavailable

2

BOOT, WIRING HARNESS

36618-30610

$8.83

3

CLAMP | L:120

09407-12402

$3.04

4

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

5

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

6

BOLT This part replaces 01107-06108.

01500-06107

$2.06

7

CLAMP This part replaces 09404-08401.

09404-08420

$3.16

8

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

9

SCREW This part replaces 02112-06128.

02112-06127

$1.84

10

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

11

SWITCH ASSY, IGNITION | Includes Item(s) 12 - 13 This part replaces 37100-47010.

37100-45301

Unavailable

12

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

SWITCH, BRAKE LAMP

37610-53011

$30.75

15

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

16

HORN ASSY This part replaces 38500-64130.

38502-49001

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 38501-49000.

38501-47001

Unavailable

18

BOLT This part replaces 01107-08128.

01500-08127

$2.62

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

BRACKET, HORN

38590-49002

Unavailable

21

BOLT, LH | 8x14 This part replaces 09100-08067.

09100-08143

$2.29

22

WASHER This part replaces 08322-11088.

08322-01087

$2.13

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

LEAD WIRE, PRESSURE SWITCH This part replaces 36853-45000.

36853-45001

Unavailable
