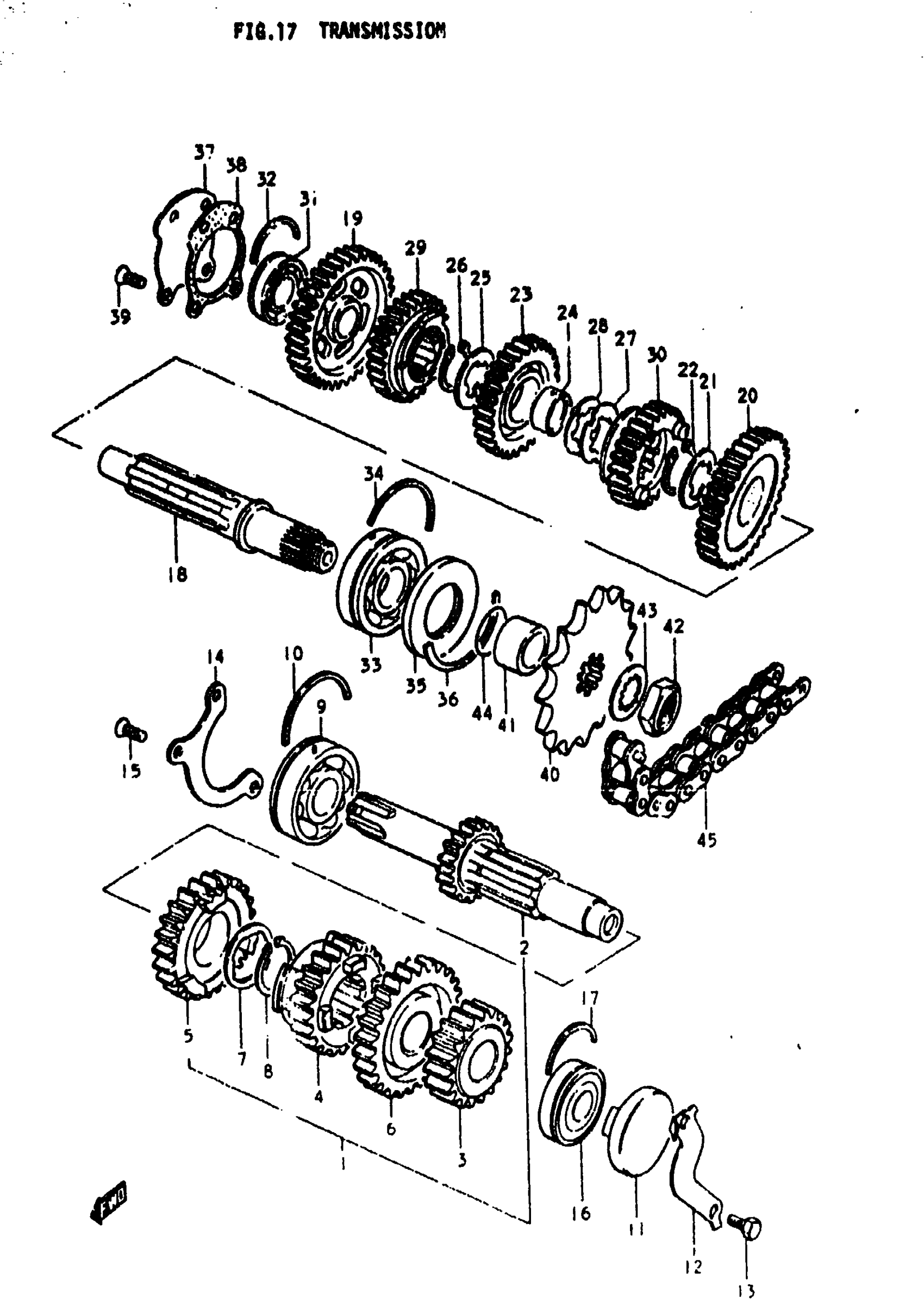

Suzuki GS1000L (1979) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 8 This part replaces 24120-49001.

24120-49002

Unavailable

2

COUNTERSHAFT (NT:14) | NT: 14 This part replaces 24100-49810.

24121-49002

Unavailable

3

GEAR, 2ND DRIVE | NT: 18

24221-49001

Unavailable

4

GEAR, 3RD DRIVE | NT:21

24231-49000

Unavailable

5

GEAR, 4TH DRIVE | NT:24

24240-49000

Unavailable

6

GEAR, 5TH DRIVE | NT:26

24250-49000

Unavailable

7

WASHER

09167-28001

$4.60

8

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

9

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

10

C RING This part replaces 09390-62006.

09390-62012

$7.31

11

PLUG, COUNTERSHAFT LH This part replaces 09241-47003.

09241-47004

$12.21

12

HOLDER

23117-45000

Unavailable

13

BOLT This part replaces 01107-06128.

01500-06127

$1.97

14

HOLDER, BEARING

24741-45000

Unavailable

15

SCREW This part replaces 02122-06168.

02122-06167

$1.49

16

BEARING, LH

09262-20044

$36.33

17

C RING

09390-47003

Unavailable

18

DRIVESHAFT This part replaces 24131-49001.

24131-49002

Unavailable

19

GEAR, 1ST DRIVEN | NT:35

24310-49001

Unavailable

20

GEAR, 2ND DRIVEN | NT:32

24320-49000

Unavailable

21

WASHER

09167-28001

$4.60

22

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

23

GEAR, 3RD DRIVEN | NT:29

24331-49001

Unavailable

24

BUSHING

24332-49000

$17.68

25

WASHER, RH

09167-28001

$4.60

26

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

27

LOCK WASHER, LH NO. 1 | T:1.5

09167-28002

$4.77

28

LOCK WASHER, LH NO. 2 | T:1.0

09169-28001

$3.85

29

GEAR, 4TH DRIVEN | NT:27

24341-45000

Unavailable

30

GEAR, 5TH DRIVEN | NT:25

24351-49000

Unavailable

31

BEARING, LH This part replaces 09262-20041.

09262-20044

$36.33

32

C RING

09390-47003

Unavailable

33

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

34

C RING This part replaces 09390-62006.

09390-62012

$7.31

35

OIL SEAL

09283-32012

$16.79

36

C RING

09390-62008

Unavailable

37

PLATE

24761-45000

Unavailable

38

GASKET,DR SHFT This part replaces 24762-45000.

24762-45000-H17

$2.77

39

SCREW This part replaces 02122-06168.

02122-06167

$1.49

40

SPROCKET ASSY,E | NT:15 This part replaces 27510-49001.

27510-49012

Unavailable

41

SPACER

09180-25052

Unavailable

42

NUT This part replaces 09159-20001.

09159-20004

$15.67

43

WASHER (25.3X41.6X1) This part replaces 09167-25014.

09167-25019

$2.19

44

O RING

09280-25001

$1.56

45

CHAIN, DRIVE | #630x96 This part replaces 27600-49810.

27600-49210

Unavailable
