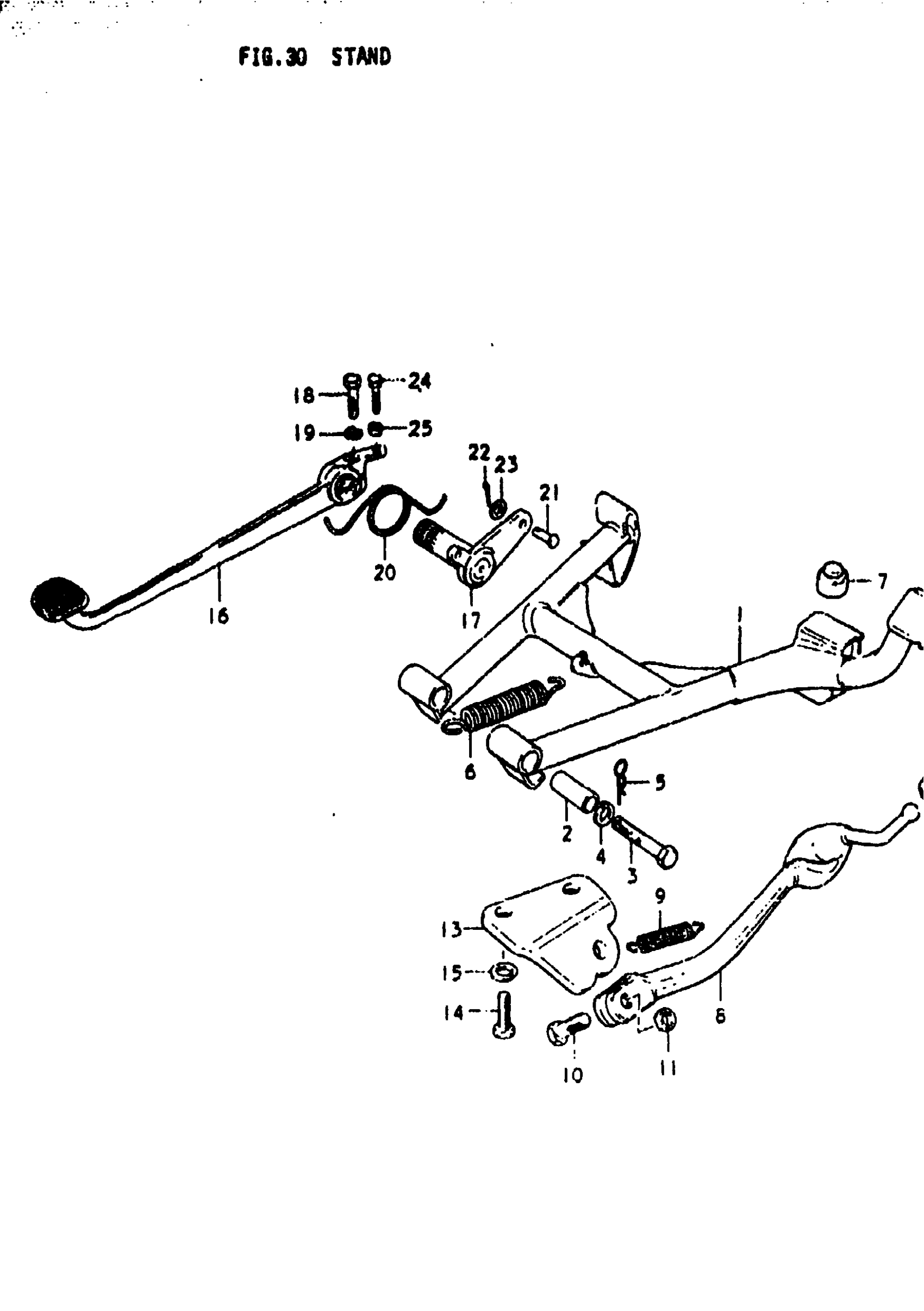

Suzuki GS1000L (1979) STAND Diagram

#

Description
Price

1

STAND, CENTER This part replaces 42100-49100.

42100-49102

Unavailable

2

SPACER | 10.7x15.9x38

09180-10040

$2.56

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

CLIP This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING This part replaces 09443-20001.

09443-20001-XC0

$7.53

7

CUSHION

09321-10001

$2.61

8

STAND, PROP

42310-45000

Unavailable

9

SPRING This part replaces 09443-17005.

09443-17008-XC0

$6.98

10

BOLT | 10x30

09100-10067

$2.61

11

NUT This part replaces 08310-22108.

08310-00107

$2.19

12

CUSHION

09320-07001

$2.92

13

BRACKET

42330-49000

Unavailable

14

BOLT | 10x27 This part replaces 09100-10007.

09100-10287

$3.48

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

PEDAL, BRAKE

43110-49000

Unavailable

17

ARM, BRAKE PEDAL ROD

43120-49000

Unavailable

18

BOLT This part replaces 01107-08258.

01500-08257

$2.50

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

SPRING This part replaces 09448-37002.

09448-37002-XC0

Unavailable

21

PIN

09200-06029

Unavailable

22

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

BOLT This part replaces 01107-06208.

01500-06207

$2.28

25

.NUT This part replaces 08310-11068.

08310-00067

$2.13
