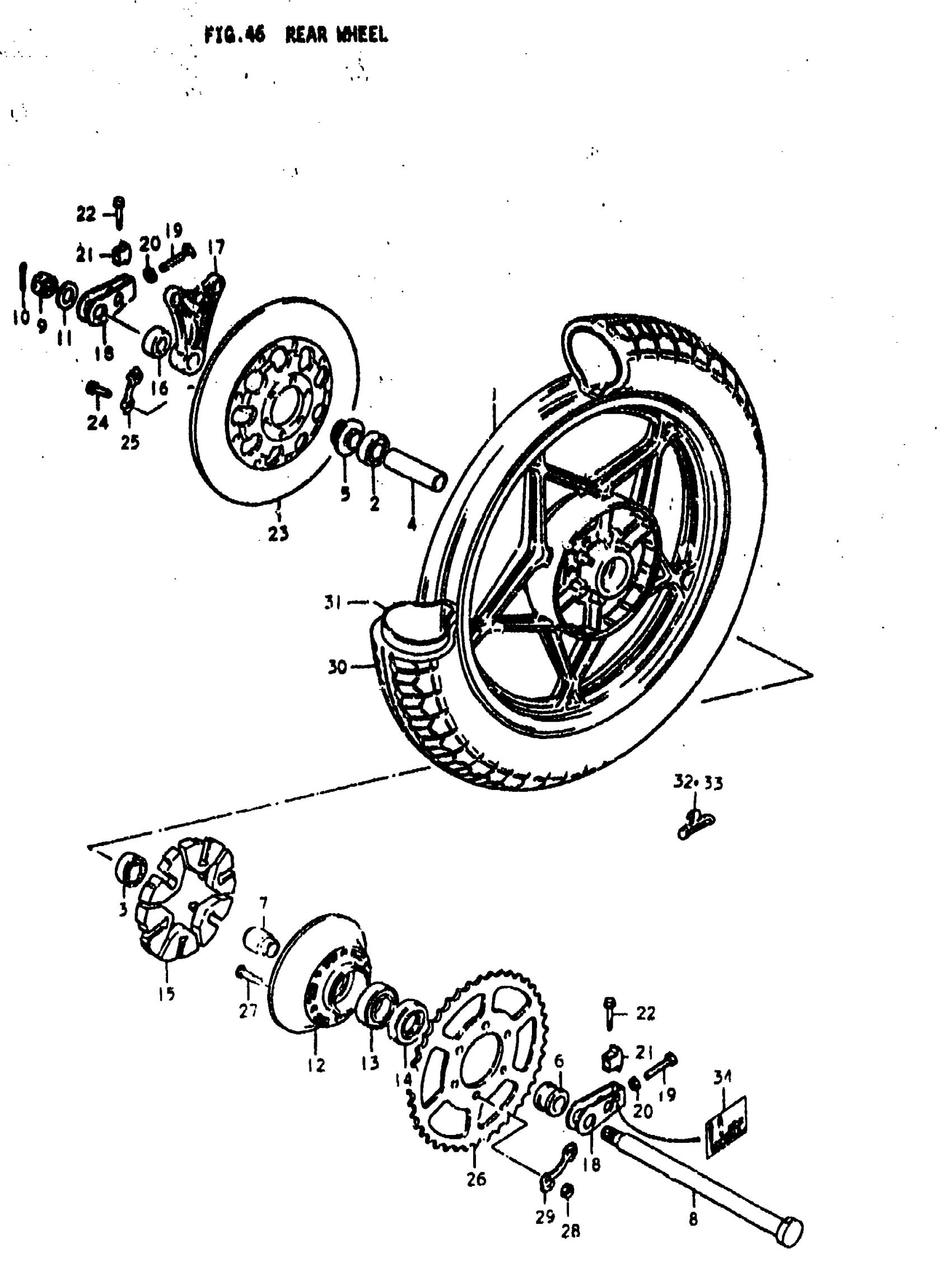

Suzuki GS1000L (1979) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (MT2,50x17) (BLACK | 2.50x17 This part replaces 64111-49000.

64111-49001-12U

Unavailable

2

BEARING, RH

08133-62047

$28.61

3

BEARING, LH This part replaces 08153-62047.

09262-20042

$23.28

4

SPACER

09180-20062

$19.13

5

SPACER, AXLE, RH This part replaces 64740-45001.

64740-45002

Unavailable

6

SPACER, AXLE LH | 20x33x28.3

09180-20054

Unavailable

7

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

Unavailable

8

AXLE,REAR This part replaces 64711-49000.

64711-4900V

Unavailable

9

NUT This part replaces 08314-31188.

08314-3118A

$5.16

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

11

WASHER | 19x34x4

09160-19008

Unavailable

12

DRUM, SPROCKET This part replaces 64611-31000.

64611-31003

Unavailable

13

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

14

OIL SEAL

09285-33001

$13.27

15

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$11.19

16

SPACER | 20x38x12

09180-20060

Unavailable

17

BRACKET, REAR CARLOERS

69721-47011

Unavailable

18

ADJUSTER, CHAIN This part replaces 61410-45200.

61410-31001

$49.02

19

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

20

NUT This part replaces 08310-11087.

08310-00087

$2.13

21

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

Unavailable

22

BOLT

01517-08409

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 59210-18401.

59210-18402

Unavailable

24

BOLT | 8x34

09100-08094

$2.71

25

WASHER

09169-08016

$2.41

26

SPROCKET,REAR,N | NT:42 This part replaces 64511-49000.

64511-49002

Unavailable

27

BOLT This part replaces 09119-10002.

09105-10001

$2.87

28

NUT This part replaces 08310-12108.

08310-00107

$2.19

29

WASHER

09169-10007

Unavailable

30

TIRE (4.50V17) | 4.50V17 This part replaces 65100-49010.

65100-49230

Unavailable

31

TUBE, INNER | 4.50-17

65200-49010

Unavailable

32

BARANCER | (0~3) 20G

55411-47001

Unavailable

33

BARANCER | (0~3) 30G

55412-47001

Unavailable

34

LAVEL, CHAIN WEAR INDLCATOR

68377-49000

Unavailable
