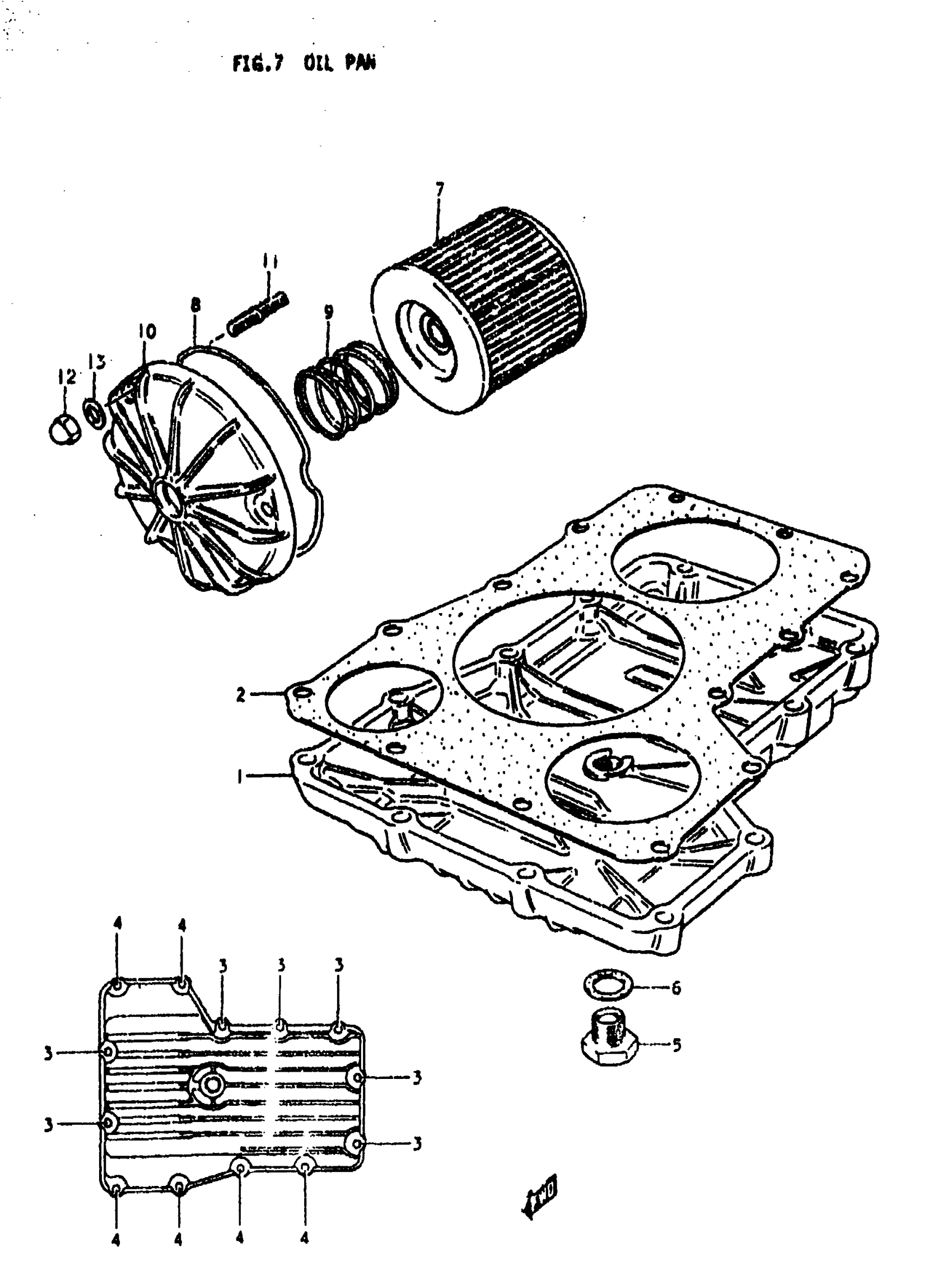

Suzuki GS1000L (1979) OIL PAN Diagram

#

Description
Price

1

PAN, OLL

11511-45000

Unavailable

2

GASKET,OIL PAN( This part replaces 11489-45001.

11489-45001-H17

Unavailable

3

BOLT This part replaces 01517-06308.

01550-06307

$2.69

4

BOLT This part replaces 01517-06258.

01550-06257

$2.30

5

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

6

GASKET

09168-14004

$1.83

7

FILTER, ENGINE OIL

16510-45040

$5.96

8

O RING

16518-45000

$5.70

9

SPRING

09440-32004

$2.92

10

CAP, ENGINE OIL FILTER This part replaces 16512-45100.

16512-45101

Unavailable

11

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

12

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13
