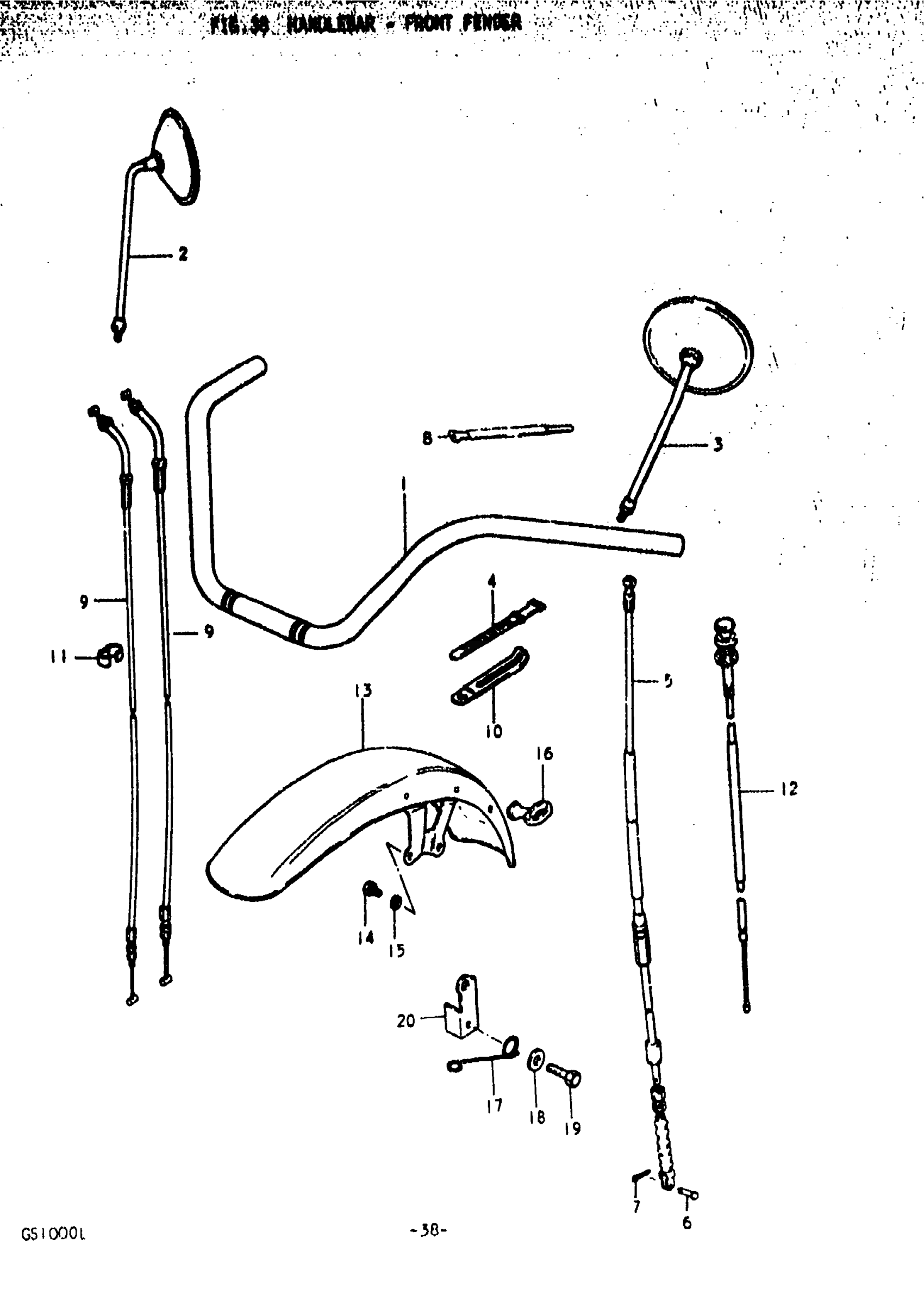

Suzuki GS1000L (1979) HANDLEBAR - FRONT FENDER Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-49100.

56111-45200

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-49100.

56500-44202

$69.23

3

MIRROR ASSY,LH This part replaces 56600-49100.

56600-44202

$97.60

4

BAND | L:120

09407-12402

$3.04

5

CABLE, CLUTCH

58200-49100

Unavailable

6

PIN

09200-06011

Unavailable

7

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

8

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

9

CABLE, THROTTLE

58300-49100

Unavailable

10

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

11

CLIP, CABLE

09408-00002

$2.30

12

CABIL, STARTER This part replaces 58400-45000.

58400-45100

Unavailable

13

FENDER, FRONT This part replaces 53110-49110.

53110-45311

Unavailable

14

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68

17

CLAMP

34938-37000

$3.73

18

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

19

BOLT This part replaces 01107-06128.

01500-06127

$1.97

20

BRACKET, CABLE CLAMP

34926-49101

Unavailable
