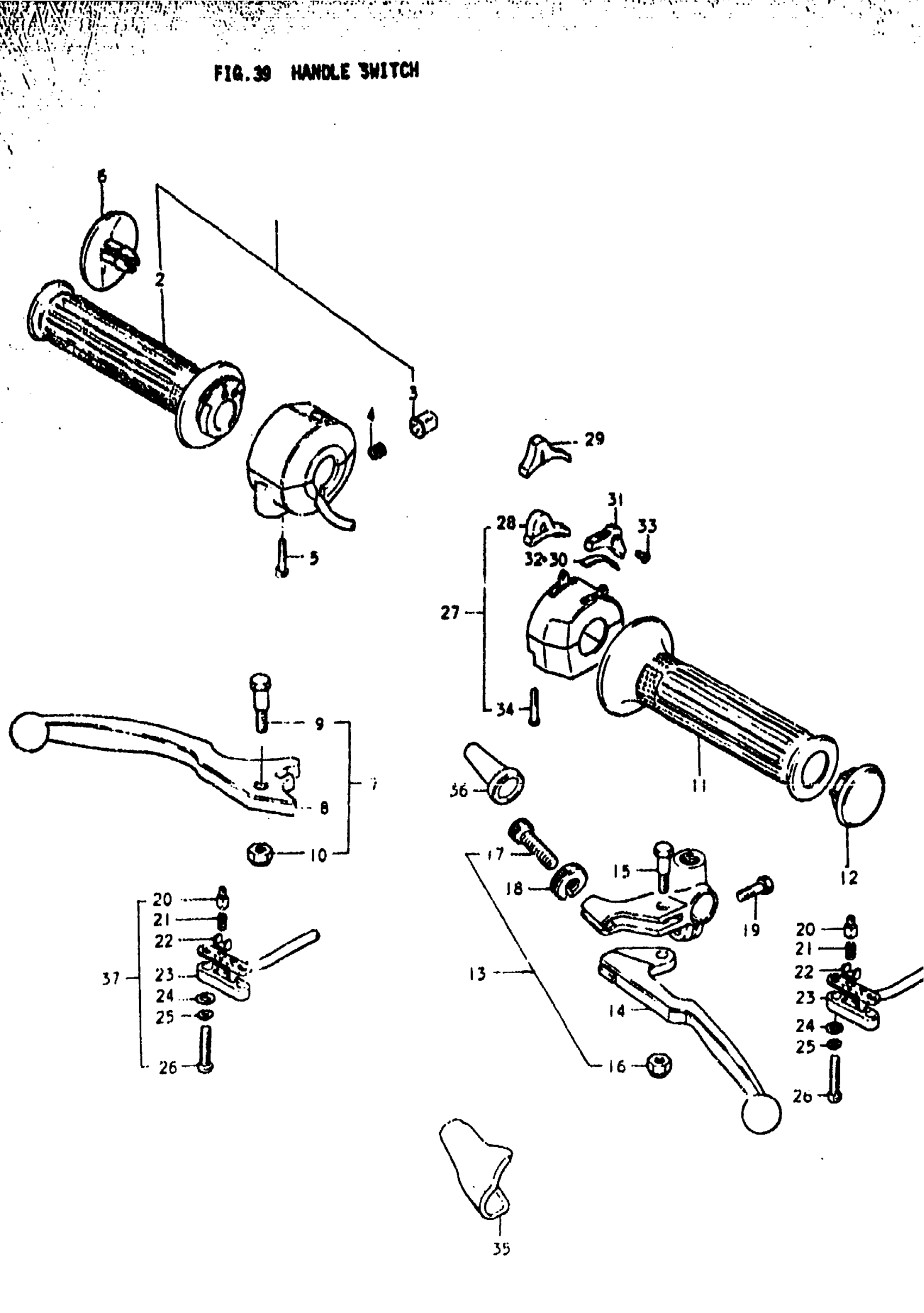

Suzuki GS1000L (1979) HANDLE SWITCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 57100-49100.

57100-49040

Unavailable

2

THROTTLE GRIP This part replaces 57110-45601.

57110-34601

Unavailable

3

BUTTON, STARTING

57370-01311

Unavailable

4

SPRING

57382-01311

Unavailable

5

SCREW This part replaces 02112-05258.

02112-05257

$1.49

6

CAP, GRIP AND RH

57215-49100

Unavailable

7

LEVER, BRAKE | Includes Item(s) 8 - 10 This part replaces 57300-49100.

57420-49101

$34.15

8

LEVER, BRAKE This part replaces 57420-49100.

57420-49101

$34.15

9

BOLT This part replaces 57431-18620.

57431-18621

$8.28

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

11

GRIP, LH This part replaces 57211-44100.

57211-49500

$13.95

12

CAP, GRIP AND LH

57216-49100

Unavailable

13

LEVER ASSY,CLUT | Includes Item(s) 14 - 26 This part replaces 57500-49110.

57500-49301

Unavailable

14

LEVER, CLUTCH This part replaces 57620-49110.

57620-49111

$23.23

15

BOLT This part replaces 57431-11010.

57431-11013

$6.31

16

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

17

ADJUSTER, CABLE

57441-11010

$5.62

18

NUT

57442-11010

$2.79

19

BOLT This part replaces 01107-06208.

01500-06207

$2.28

20

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

21

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

22

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

23

COVER

57481-33010

$5.84

24

WASHER This part replaces 08322-21038.

08322-01037

$1.93

25

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

26

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

27

SWITCH ASSY, HANDLE LH | Includes Item(s) 28 - 34

37400-49011

Unavailable

28

KNOB, STOPPER

57718-36630

Unavailable

29

KNOB,HANDLE SWI | OPT This part replaces 57712-33011.

57712-33012

$6.17

30

SPRING | OPT

57714-33010

$3.25

31

KNOB, DIMMER SWITCH

57713-34012

Unavailable

32

SPRING

57715-34012

Unavailable

33

SCREW

03121-03068

$1.50

34

SCREW,5X22 This part replaces 09125-05105.

09125-05105-XC0

$4.10

35

COVER, CLUTCH LEVOR

57661-31000

$7.25

36

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

37

SWITCH ASSY, ST This part replaces 57460-49100.

57460-45500

$35.23
