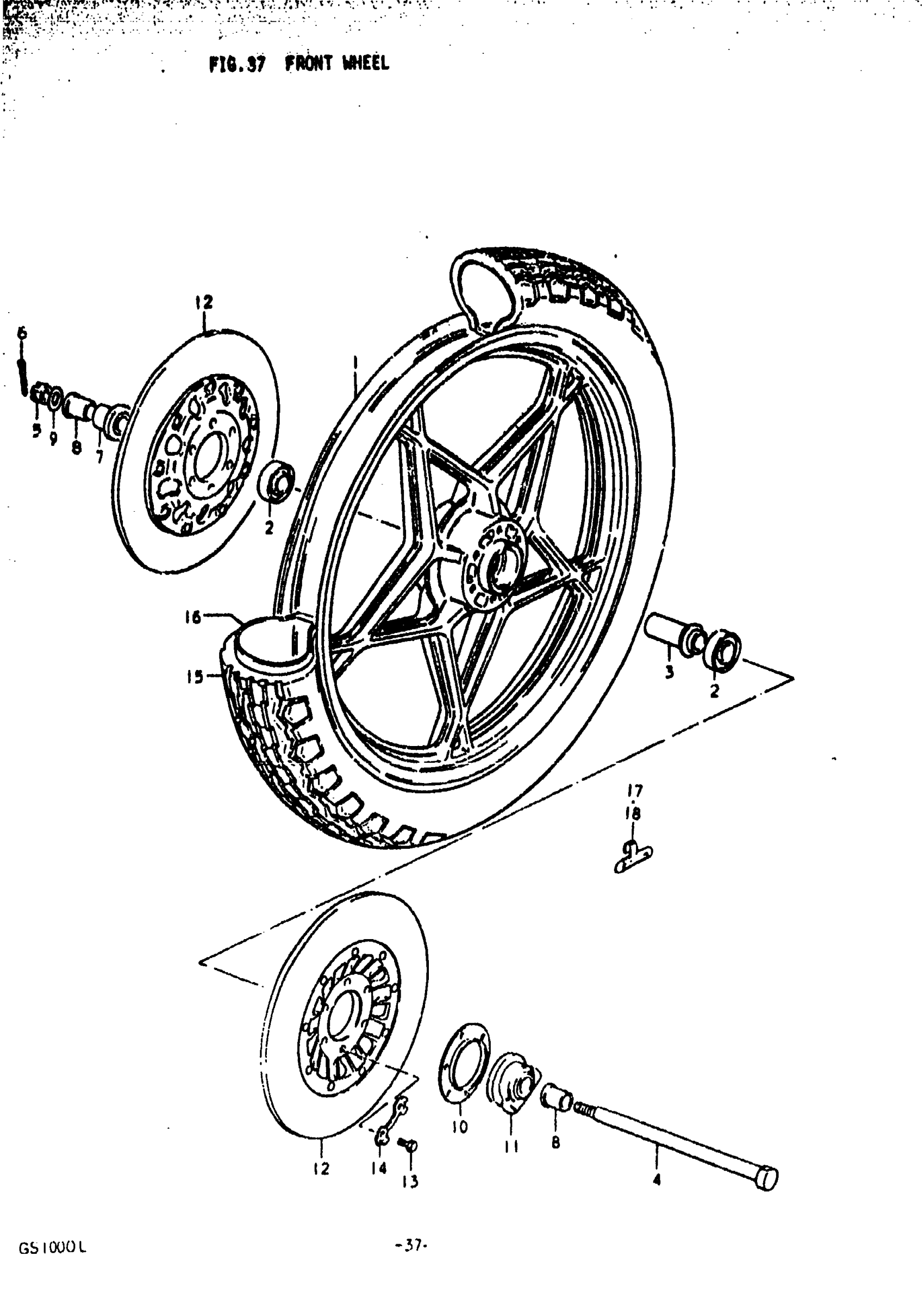

Suzuki GS1000L (1979) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | 1.85x19 This part replaces 54111-47604.

54111-49350-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE, FRONT

54711-49000

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH

54740-18402

Unavailable

8

SPACER, AXLE RH

54741-49101

Unavailable

9

WASHER

09160-15002

$1.91

10

DUST SEAL

54871-31000

Unavailable

11

BOX ASSY,SPEEDO This part replaces 54600-49100.

54600-49101

$105.57

12

DISK, FRONT BRAKE

59210-49000

Unavailable

13

BOLT

09100-08094

$2.71

14

WASHER

09169-08016

$2.41

15

TIRE (3.50V19) | 3.50V19 This part replaces 55100-49010.

55100-49330

Unavailable

16

TUBE | 2.50V19 This part replaces 55200-15010.

55200-44611

$33.73

17

BALANCER | (0~3) 20G

55411-47001

Unavailable

18

BALANCER | (0~3) 30G

55412-47001

Unavailable
