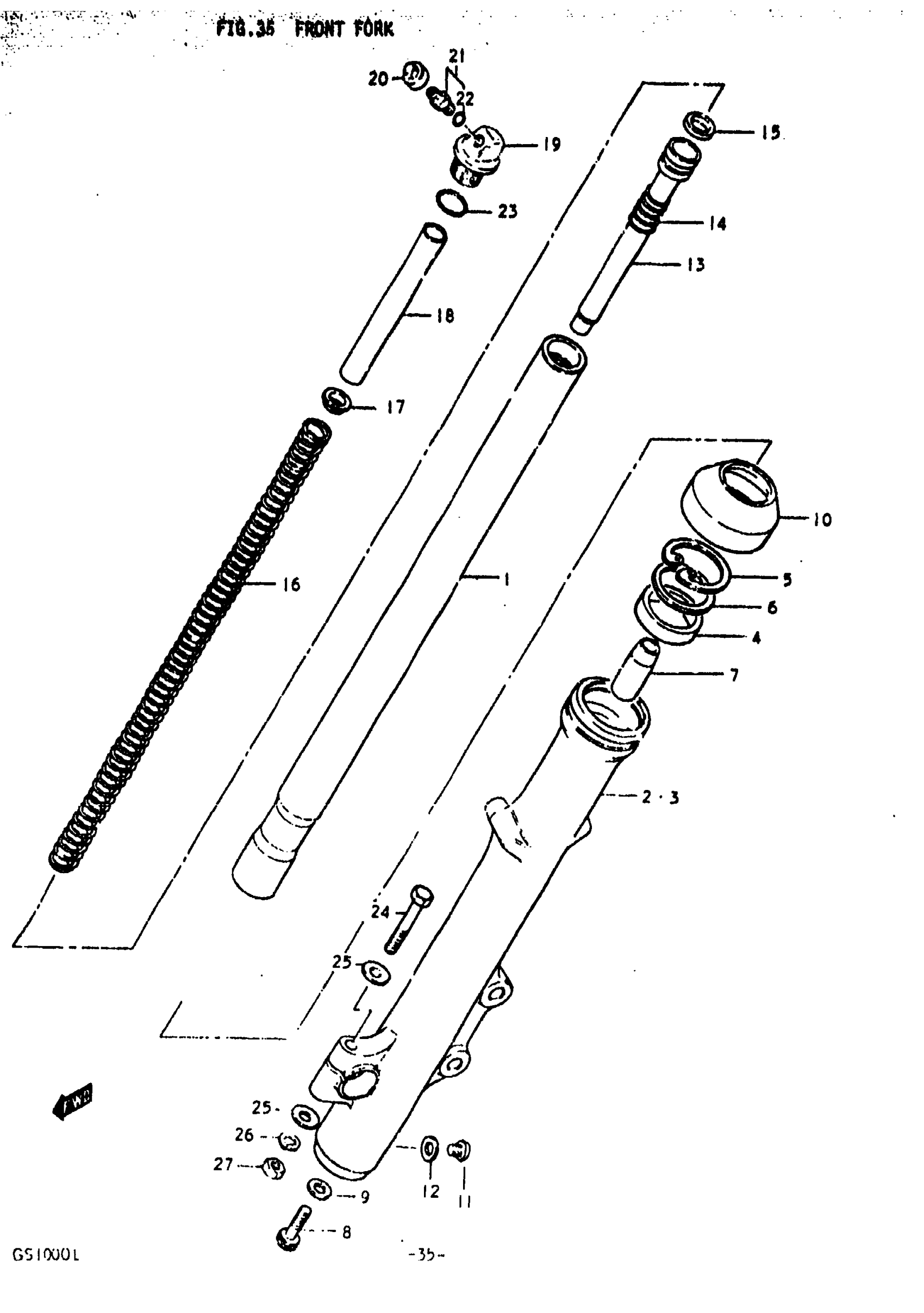

Suzuki GS1000L (1979) FRONT FORK Diagram

#

Description
Price

0

DUMPER ASSY, RH

51103-49100

Unavailable

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 27 This part replaces 51104-49110.

51104-49111

Unavailable

1

INNER TUBE

51110-49100

Unavailable

2

OUTER TUBE, RH

51130-49100

Unavailable

3

OUTER TUBE, LH

51140-49100

Unavailable

4

SEAL, OIL This part replaces 51153-49000.

51153-08C20

$20.47

5

SNAP RING

51156-49000

Unavailable

6

WASHER

51158-49000

Unavailable

7

PIECE, OIL LOCK

51195-38010

Unavailable

8

BOLT

51147-16510

$4.34

9

GASKET

51148-41310

$2.26

10

DUST SEAL

51173-49002

$16.96

11

SCREW This part replaces 02111-04087.

02112-04087

$1.49

12

GASKET

51183-03010

$2.07

13

CYLINDER

51146-49100

Unavailable

14

SPRING

51177-49000

Unavailable

15

PISTON RING

51196-49000

$7.78

16

SPRING, MAIN

51171-49100

Unavailable

17

GUIDE, SPRING

51172-38010

Unavailable

18

SPACER

51176-38010

Unavailable

19

CAP, UPPER

51351-41211

Unavailable

20

CAP, VALVE

51294-49000

Unavailable

21

VALVE

51293-49001

Unavailable

22

O RING

51117-41211

Unavailable

23

O RING

51117-16310

Unavailable

24

BOLT | RH DUMPER ASSY This part replaces 01107-08508.

01500-08507

$3.05

25

WASHER | RH DUMPER ASSY This part replaces 08322-21088.

08322-01087

$2.13

26

.LOCK WASHER | RH DUMPER ASSY This part replaces 08321-21088.

08321-01087

$2.13

27

NUT | RH DUMPER ASSY This part replaces 08312-11088.

08310-00087

$2.13
