Partiron

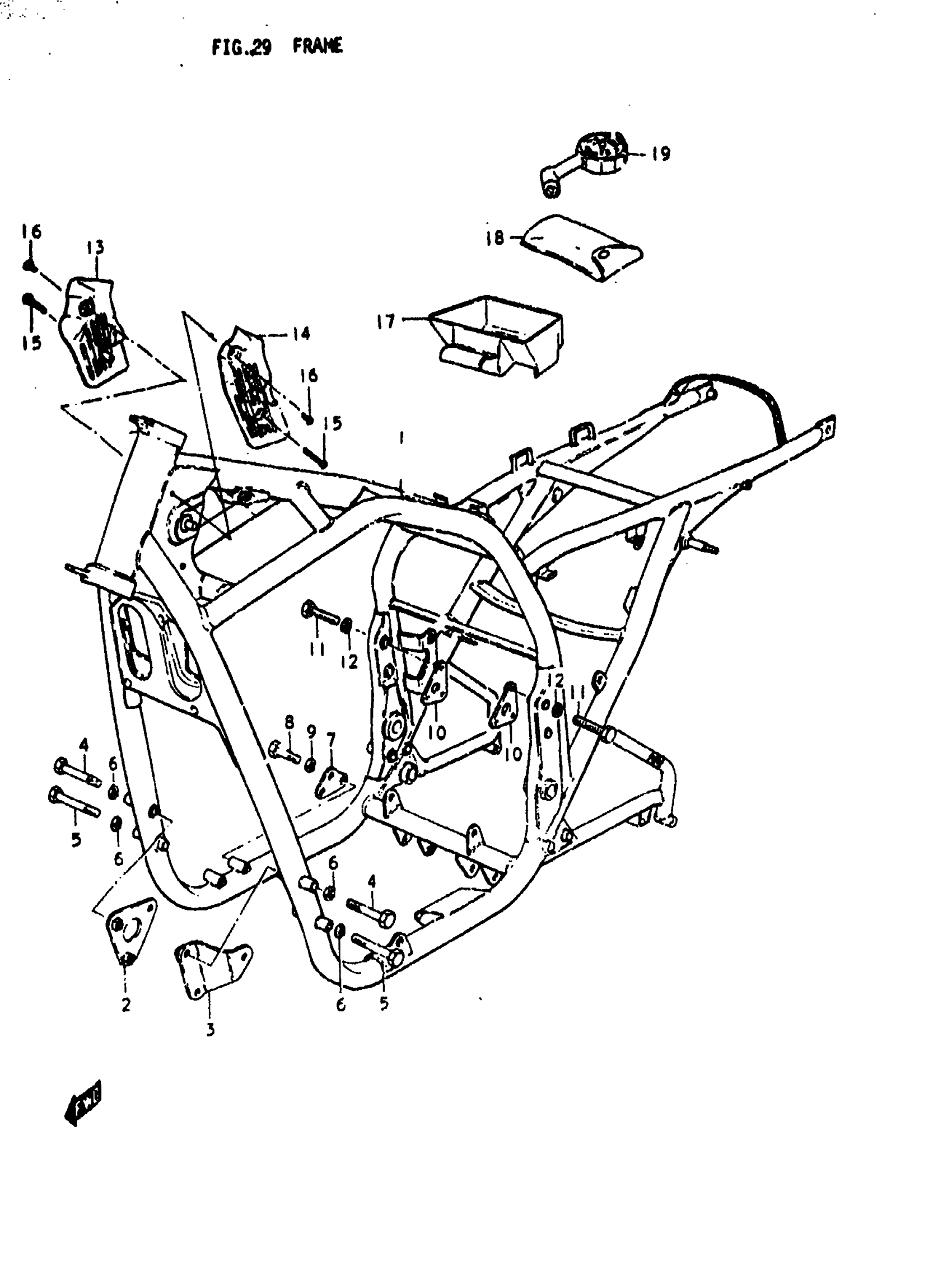

Suzuki GS1000L (1979) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-49100-019.

41100-49101-019

Unavailable

2

PLATE, MOUNTING NO.1 RH

41910-49000-019

Unavailable

3

PLATE, MOUNTING NO.1 LH

41990-49000-019

Unavailable

4

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

5

BOLT This part replaces 01107-08708.

01500-0870B

$3.49

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

PLATE, NO.2 (SILVER) This part replaces 41921-49000-019.

41921-49000-13L

Unavailable

8

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

PLATE, NO.3 (SILVER) This part replaces 41940-49000-019.

41940-49000-13L

Unavailable

11

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

12

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

13

COVER, FRAME HEAD RH

51876-49100

Unavailable

14

COVER, FRAME HEAD LH

51886-49100

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 02142-05505.

02142-05503

Unavailable

16

SCREW This part replaces 02142-05105.

02142-0510B

$1.78

17

HOLDER, TOOL This part replaces 41551-49100.

41551-49101

Unavailable

18

TOOL ASSY This part replaces 09800-00192.

09800-21068

Unavailable

19

GAUGE, FRONT FORK AIR This part replaces 96200-41310.

96200-41330

Unavailable
