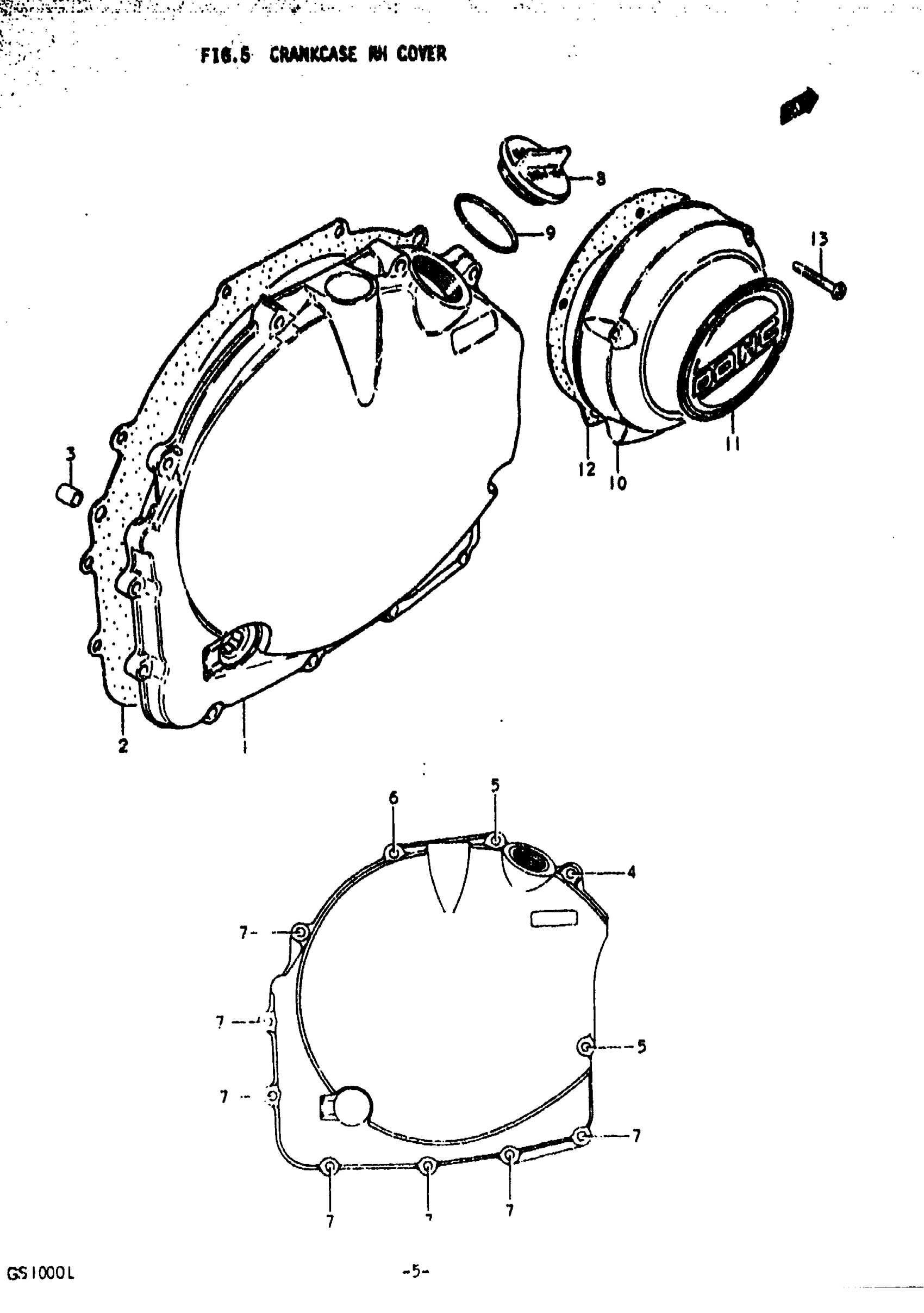

Suzuki GS1000L (1979) CRANKCASE NH COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-49000

Unavailable

2

GASKET,CL COVER This part replaces 11482-49000.

11482-49000-H17

Unavailable

3

PIN

04211-09129

$1.65

4

SCREW This part replaces 02112-06358.

02112-06357

$1.78

5

SCREW

02112-06307

$1.97

6

SCREW This part replaces 02112-06258.

02112-06257

$1.78

7

SCREW This part replaces 02112-06208.

02112-06207

$1.78

8

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

9

O RING

09280-32005

$1.99

10

COVER, CONTACT BREAKER This part replaces 11381-49000.

11381-49002

Unavailable

11

EMBLEM

68235-45200

Unavailable

12

GASKET

11491-45000

Unavailable

13

SCREW This part replaces 02112-05308.

02112-0530A

$2.05
