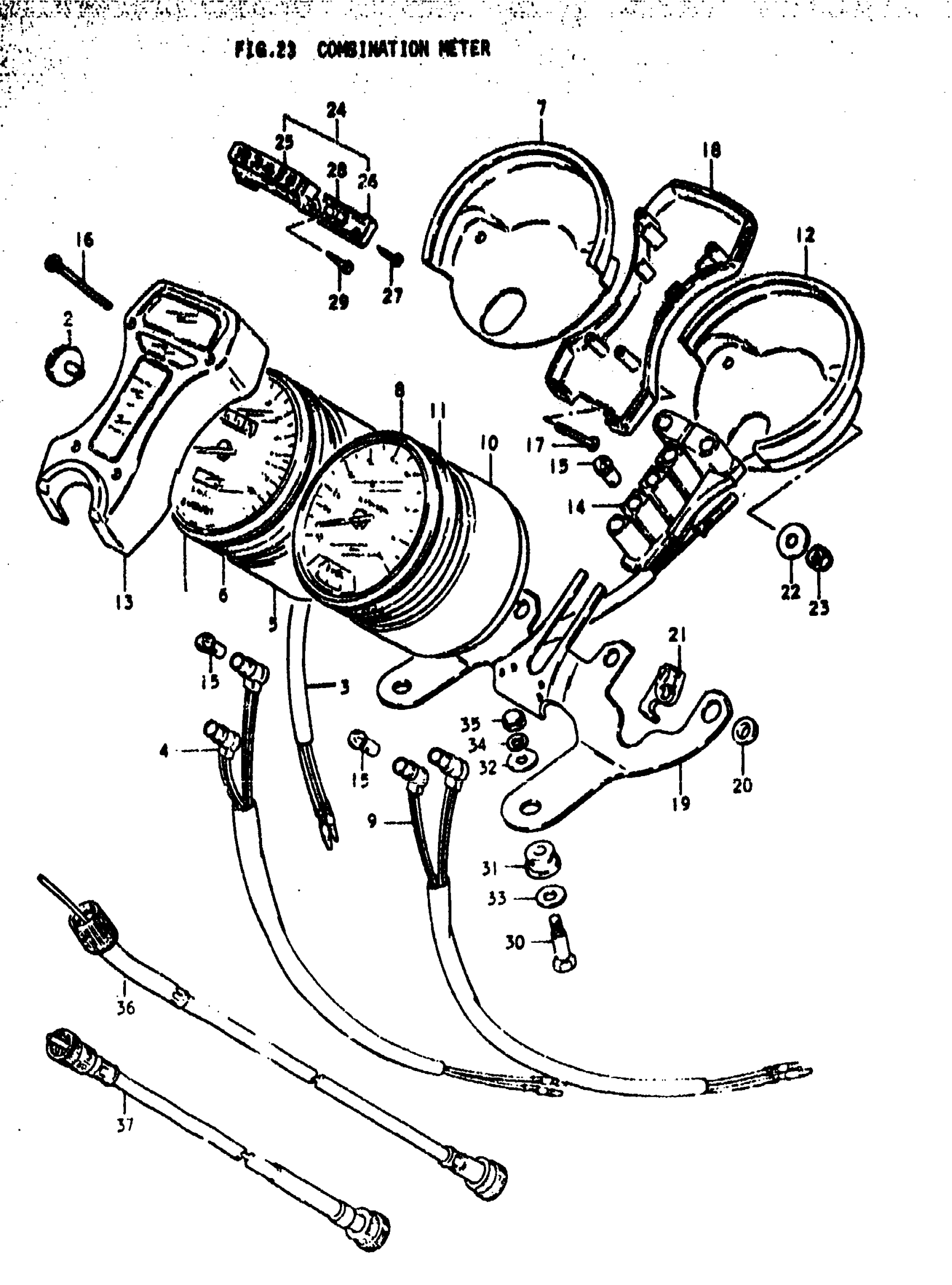

Suzuki GS1000L (1979) COMBINATION METER Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 29 This part replaces 34100-49110.

34100-49111

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 34110-49110.

34110-49111

Unavailable

2

KNOB

34124-49100

Unavailable

3

LEAD WIRE

34860-45110

Unavailable

4

SOCKET

34173-49100

Unavailable

5

COVER, SPEEDOMETER

34151-49100

Unavailable

6

CUSHION

34189-49100

Unavailable

7

COVER, UNDER

34193-49100

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 34210-49100.

34210-49140

Unavailable

9

SOCKET

34273-49100

Unavailable

10

COVER, TACHOMETER

34251-49100

Unavailable

11

CUSHION

34189-49100

Unavailable

12

COVER, UNDER

34293-49100

Unavailable

13

BOX, PILOT

36380-49100

Unavailable

14

SOCKET

36325-49100

Unavailable

15

BULB | 12V, 3.4W

09471-12001

$1.65

16

SCREW

36387-49100

Unavailable

17

SCREW

02132-04305

Unavailable

18

COVER, UNDER

36383-49100

Unavailable

19

BRACKET

34950-49100

Unavailable

20

CUSHION

34956-45020

Unavailable

21

CUSHION

34955-45020

Unavailable

22

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

23

NUT This part replaces 34185-45060.

08313-1005A

$1.93

24

INDICATOR, GEAR POSITION This part replaces 36450-45101.

36450-49401

Unavailable

25

CASE

36452-45100

Unavailable

26

COVER, LOWER

36454-45100

Unavailable

27

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

28

BULB

09471-12071

$7.20

29

SCREW

36457-45100

Unavailable

30

BOLT

09111-08031

Unavailable

31

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

32

WASHER This part replaces 09160-08047.

09160-08130

$2.03

33

WASHER This part replaces 09160-10028.

09160-10035

$1.78

34

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

35

NUT This part replaces 08313-21085.

08313-2008B

$2.88

36

CABLE, SPEEDOMOTER

34910-45210

Unavailable

37

CABLE ASSY,TACH This part replaces 34940-45210.

34940-45213

$22.66
