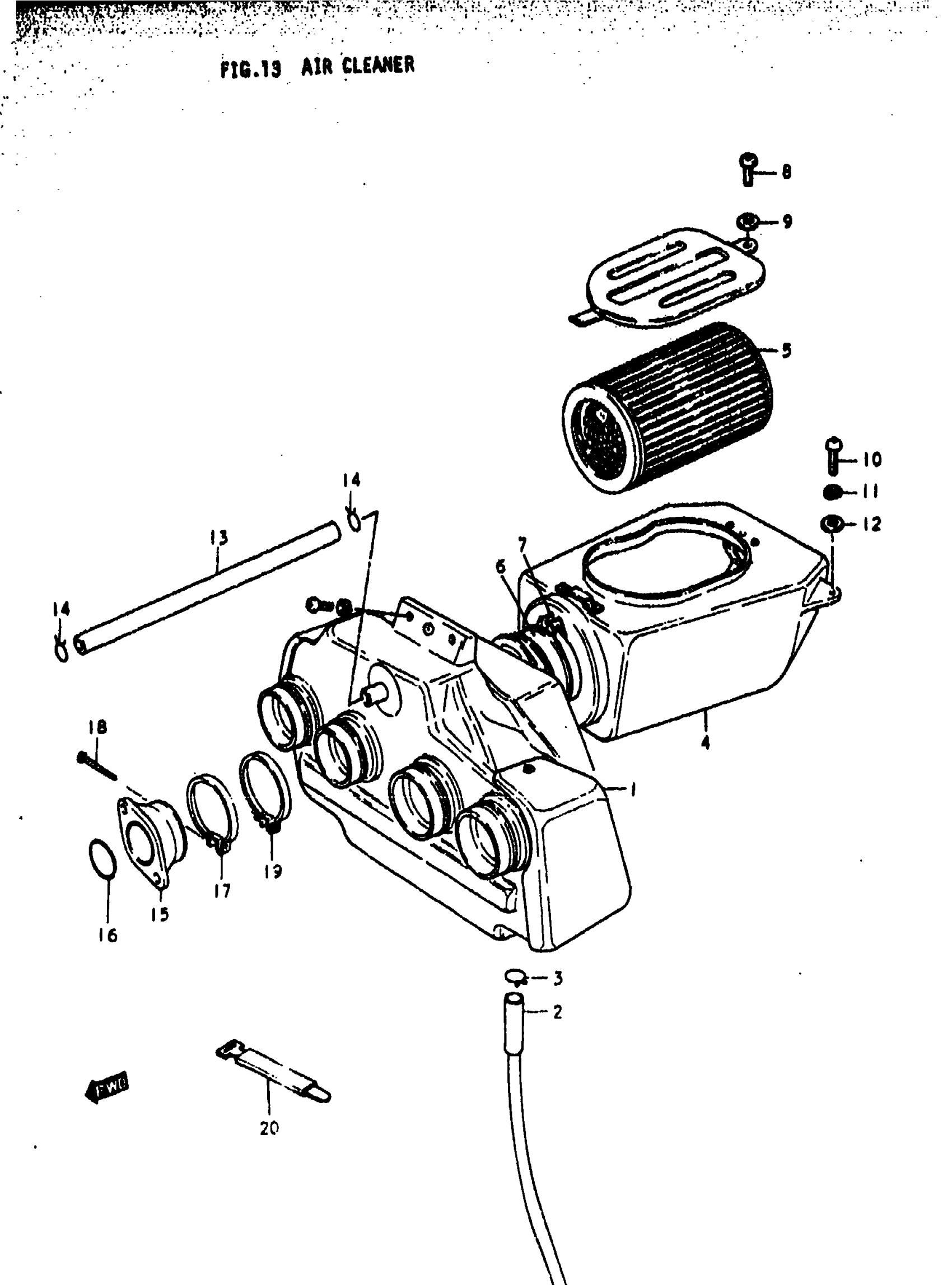

Suzuki GS1000L (1979) AIR CLEANER Diagram

#

Description
Price

1

CASE ASSY, FRONT | Includes Item(s) 2 - 3

13710-49010

Unavailable

2

TUBE,DRAIN This part replaces 13790-44010.

13870-11459

$15.51

3

CLIP This part replaces 13795-44010.

09401-14301

$2.35

4

CASE ASSY, REAR | Includes Item(s) 5 - 9

13701-49001

Unavailable

5

FILTER This part replaces 13780-49000.

13780-45500

Unavailable

6

HOSE

13795-49000

Unavailable

7

CLAMP This part replaces 13796-49000.

09402-70902

$5.64

8

SCREW This part replaces 02112-05128.

02112-05127

$1.97

9

WASHER This part replaces 08322-21058.

08322-01057

$2.13

10

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

HOSE,11X15X2000 | 11x15x230 This part replaces 09343-11001.

09352-11154-00B

$48.35

14

CLIP

09401-14301

$2.35

15

PIPE,INTAKE This part replaces 13110-45010.

13110-49001

Unavailable

16

O RING

09280-32006

$2.28

17

CLAMP This part replaces 09402-46306.

09402-46208

$4.64

18

SCREW This part replaces 02112-06168.

02112-06167

$1.49

19

CLAMP

09402-52306

$4.91

20

CLAMP, OVER FLOW HOSE | L:120

09407-12402

$3.04
