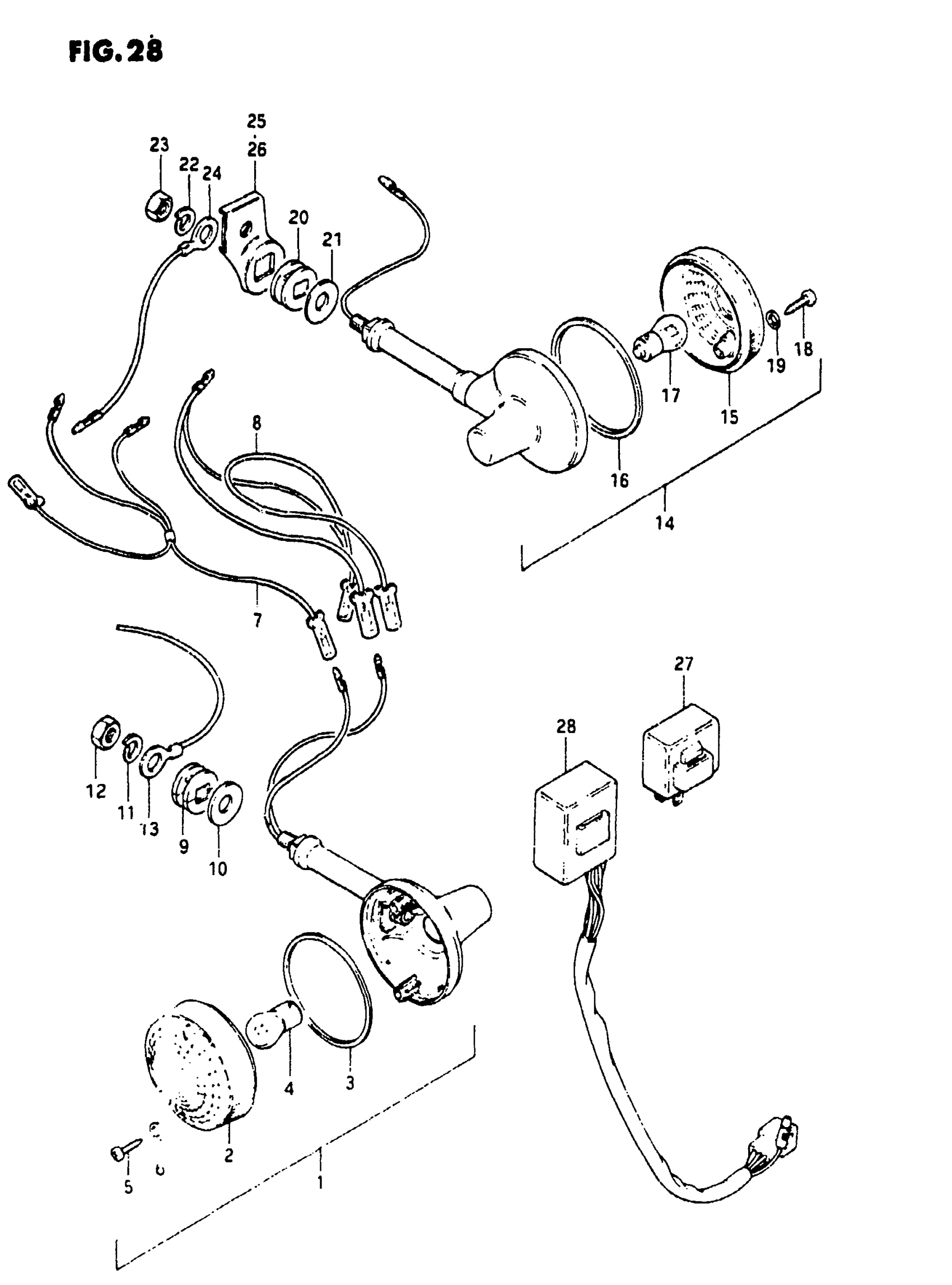

Suzuki GS1000GL (1981) TURN SIGNAL LAMP (MODEL X) Diagram

#

Description
Price

1

LAMP, FRONT TURN SIGNAL | Includes Item(s) 2 - 6

35601-49110

Unavailable

2

LENS

35612-49110

Unavailable

3

GASKET

35613-28620

$4.55

4

BULB (12V, 23/8W)

09471-12035

$4.49

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

LEAD WIRE, TURN SIGNAL

36852-45310

Unavailable

8

LEAD WIRE, POSITION LAMP

36852-45320

Unavailable

9

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

10

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

NUT This part replaces 08310-12108.

08310-00107

$2.19

13

LEAD WIRE, FRONT GROUND This part replaces 36862-45000.

36660-33000

$4.52

14

LAMP, REAR TURN SIGNAL | Includes Item(s) 15 - 19

35603-49110

Unavailable

15

LENS

35612-28620

$8.98

16

GASKET

35613-28620

$4.55

17

BULB (12V, 23W)

09471-12006

$3.98

18

SCREW This part replaces 03211-04208.

03211-04207

$1.49

19

GASKET

35627-43010

$2.28

20

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

21

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

NUT This part replaces 08310-12108.

08310-00107

$2.19

24

LEAD WIRE, EARTH This part replaces 36851-45290.

36862-44000

$5.50

25

BRACKET, REAR RH This part replaces 35620-45301.

35620-45302

Unavailable

26

BRACKET, REAR LH This part replaces 35640-45301.

35640-45302

Unavailable

27

RELAY, TURN SIGNAL

38610-49231

Unavailable

28

UNIT,TURN SIG C This part replaces 38830-49200.

38830-49X00

Unavailable
