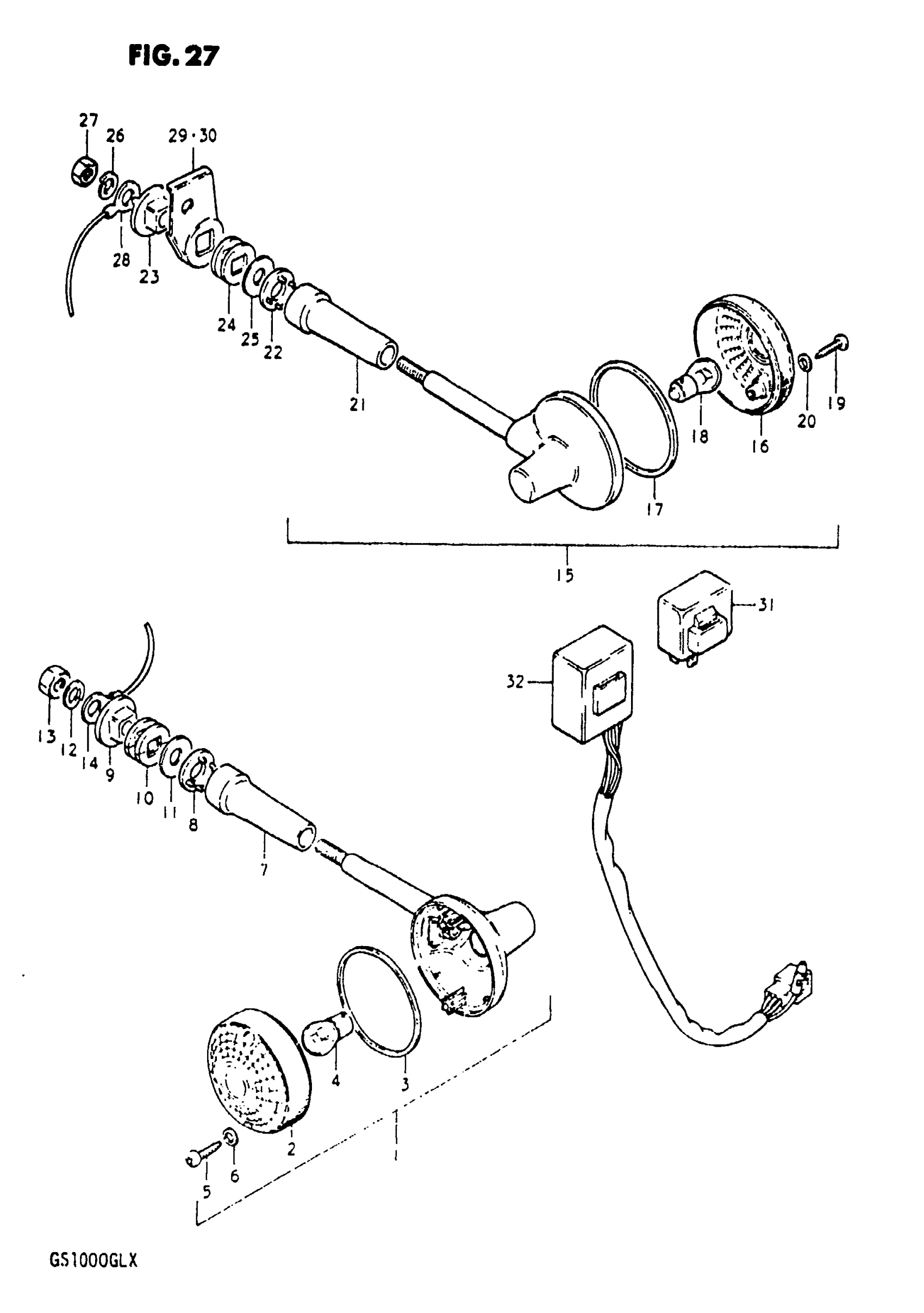

Suzuki GS1000GL (1981) TURN SIGNAL LAMP (MODEL T) Diagram

#

Description
Price

1

LAMP, FRONT TURN SIGNAL | Includes Item(s) 2 - 8 This part replaces 35603-47230.

35603-47230-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

BULB (12V, 23W)

09471-12006

$3.98

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

COVER, STAY

35617-47230

Unavailable

8

CUSHION This part replaces 35665-47210.

35668-47290

Unavailable

9

SPACER This part replaces 35695-32400.

35695-32401

$4.52

10

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

11

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

12

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

13

NUT This part replaces 08310-12108.

08310-00107

$2.19

14

LEAD WIRE, FRONT GROUND This part replaces 36862-45000.

36660-33000

$4.52

15

LAMP, FRONT TURN SIGNAL | Includes Item(s) 16 - 22 This part replaces 35603-47230.

35603-47230-999

Unavailable

16

LENS

35612-28620

$8.98

17

GASKET

35613-28620

$4.55

18

BULB (12V, 23W)

09471-12006

$3.98

19

SCREW This part replaces 03211-04208.

03211-04207

$1.49

20

GASKET

35627-43010

$2.28

21

COVER, STAY

35617-47230

Unavailable

22

CUSHION This part replaces 35665-47210.

35668-47290

Unavailable

23

SPACER This part replaces 35695-32400.

35695-32401

$4.52

24

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

25

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

27

NUT This part replaces 08310-12108.

08310-00107

$2.19

28

LEAD WIRE, EARTH This part replaces 36851-45290.

36862-44000

$5.50

29

BRACKET, RH

41580-45000-019

Unavailable

30

BRACKET, LH

41590-45000-019

Unavailable

31

RELAY, TURN SIGNAL

38610-49231

Unavailable

32

UNIT,TURN SIG C This part replaces 38830-49200.

38830-49X00

Unavailable
